🔧 Countersink Angle Calculator
Calculate countersink depth, pilot hole diameter, rim diameter, and recommended drill speed for any screw and material.
| Material | RPM Range (1/2" Bit) | Rec. SFM | Feed Rate | Notes |
|---|---|---|---|---|
| Softwood (Pine) | 1500 – 3000 | 300–600 | 6–12 in/min | Sharp bit, moderate pressure |
| Hardwood (Oak) | 900 – 1800 | 200–400 | 3–8 in/min | Low speed, steady feed |
| Plywood | 1200 – 2500 | 250–500 | 5–10 in/min | Watch for tearout |
| MDF | 1000 – 2000 | 200–450 | 4–9 in/min | Use carbide bit |
| Aluminum | 750 – 1500 | 150–300 | 2–6 in/min | Use cutting fluid |
| Mild Steel | 300 – 750 | 60–120 | 1–3 in/min | High-speed steel bit, coolant |
| Stainless Steel | 150 – 400 | 30–80 | 0.5–2 in/min | Cobalt bit, slow speed |
| Acrylic | 500 – 1200 | 100–250 | 2–5 in/min | Back off at breakthrough |
| Screw Size | Head Dia (in) | Head Height (in) | Pilot Hole Dia (in) | Countersink Dia (in) |
|---|---|---|---|---|
| #4 Wood Screw | 0.225 | 0.074 | 0.089 | 0.272 |
| #6 Wood Screw | 0.250 | 0.083 | 0.105 | 0.307 |
| #8 Wood Screw | 0.279 | 0.094 | 0.122 | 0.332 |
| #10 Wood Screw | 0.307 | 0.103 | 0.138 | 0.365 |
| #12 Wood Screw | 0.335 | 0.113 | 0.150 | 0.398 |
| 1/4"–20 Machine | 0.493 | 0.165 | 0.213 | 0.531 |
| 5/16"–18 Machine | 0.619 | 0.209 | 0.266 | 0.663 |
| 3/8"–16 Machine | 0.740 | 0.249 | 0.323 | 0.790 |
| Screw Size | Head Dia (mm) | Head Height (mm) | Pilot Hole (mm) | Countersink Dia (mm) |
|---|---|---|---|---|
| M3 | 5.5 | 1.86 | 2.5 | 6.0 |
| M4 | 8.0 | 2.48 | 3.3 | 8.5 |
| M5 | 9.2 | 2.87 | 4.2 | 10.0 |
| M6 | 11.5 | 3.3 | 5.0 | 12.0 |
| M8 | 15.0 | 4.4 | 6.8 | 16.0 |
| M10 | 18.0 | 5.5 | 8.5 | 19.0 |
| M12 | 22.0 | 6.5 | 10.2 | 23.0 |
| Bit Diameter | Flutes | Angle | Max RPM | Best For |
|---|---|---|---|---|
| 1/4" (6.35 mm) | 4 | 82° | 3000 | #4–#6 screws, softwood |
| 3/8" (9.5 mm) | 4 | 82° | 2500 | #6–#8 screws, wood |
| 1/2" (12.7 mm) | 6 | 82° | 2000 | #8–#12 screws, hardwood |
| 1/2" (12.7 mm) | 6 | 90° | 1800 | Metric screws, steel |
| 3/4" (19 mm) | 6 | 82° | 1500 | 1/4"–5/16" machine screws |
| 1" (25.4 mm) | 6 | 100° | 1200 | Aerospace, structural |
| Project | Screw | Angle | Bit Dia | Rec. RPM | Est. Time |
|---|---|---|---|---|---|
| Deck boards (pine) | #10 Wood | 82° | 1/2" | 1500 | 4 sec/hole |
| Cabinet box (plywood) | #8 Wood | 82° | 3/8" | 1800 | 3 sec/hole |
| Hardwood furniture (oak) | #8 Wood | 82° | 1/2" | 900 | 6 sec/hole |
| Aluminum panel | M5 Flat | 90° | 1/2" | 800 | 8 sec/hole |
| Mild steel plate | #10 Machine | 82° | 1/2" | 400 | 15 sec/hole |
| Acrylic sheet | #8 Machine | 90° | 3/8" | 600 | 10 sec/hole |
countersink tools create a cone-shaped cut at the entry of a hole, so that a screw with a flat head can sit level with the surface. It aims to prevent the head from sticking above the workpiece. Such a cone shape matches the angle under the head of a flat-head screw.

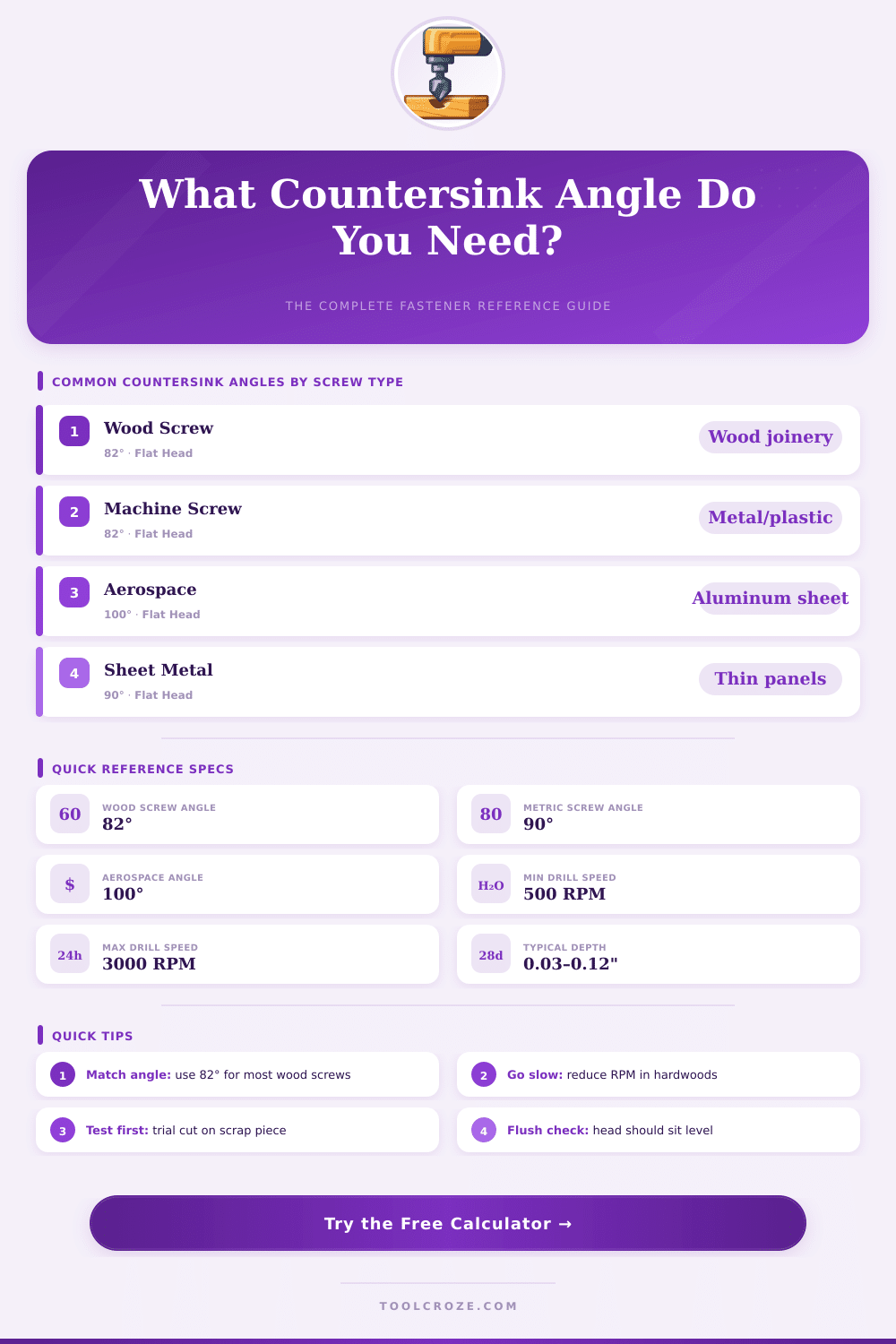

countersink tools normally include six typical angles: 60°, 82°, 90°, 100°, 110° and 120°. Between them the two most popular ones stay 82° and 90°. For imperial threads the usual angle is 82°, while metric versions favour 90°.
Why countersink angles matter
Screws with flat head that follow the Unified Thread Standard almost always bear an 82° form, unlike those following ISO rules, that choose 90°.
Matching the angle of the screw haed to that of the countersink truly matters. When one puts a 90° head in an 82° hole, the neck of the screw can leave the bottom and create space up, where dirt will build up easily. To avoid that, simply match the main angle with the countersink.
The aerospace sector differs a bit from the norm. Screws with countersink head that one uses in aviation usually bear a 100° angle. That works more well with thin metal plates, because the less deep head does not break threw the back part.
Also BA-thread with surface end uses 100°, and rivets for sheet metal commonly require 120°.
When holes are drilled by means of 60° thread cutters and no countersink head must seat there, the best countersink angle commonly matches 60°. A center drill normally has a 60° included angle, which even so differs from a real countersink.
countersink and bevel look quite a lot alike. In truth, a countersink simply is a bevel at a hole. The main difference lies in that a bevel one usually imagines with a 45° slope, although it can change.
Countersink also differs from counterbore. A counterbore delivers a flat base at 90° to the hole center axis, while a countersink causes a cone shape.
A screw needs at least 50-percent contact with the countersink hole, but perfect match is not required. When one specifies a countersink in design, one notes both the diameter and the included angle. For any countersink angle, the depth of ideal cuts stays a fixed ratio from the diameter of the screw head.
A bit of basic math using a right triangle can find the depth, if one knows the size of the diameter and the angle. Half of the diameter with half of the angle creates a rectangle that one solves without effort.
In theory an 82° screw head beats the strength of a 90° one, because the wall between the edge narrows and the hole stays thicker. Even so some countersink tools, sold as 82°, actually reach a 90° measure so one mustcontrol the quality.
