When you look at a steel beam, it’s an I-shape. It is made off metal. But that metal can cost a lot if you choose the wrong one. It can mean the difference between a sagging floor and a holding floor. And that difference is hidden behind a column of numbers that most people don’t bother with. Wide flange beam dimensions aren’t about memorization from a table, it’s about reading the story that the dimension tell about weight and strength.
Let’s begin then with the name. If you’re fluent, there’s no mystery: A designation such as W14x38 will tell you everything. The W indicates it’s a wide flange. The number following (in this case 14) indicate the nominal depth in inches. The next number (in this case 38) indicates its weight in pounds per linear foot. No calculator required.
How to Read Steel Beam Sizes

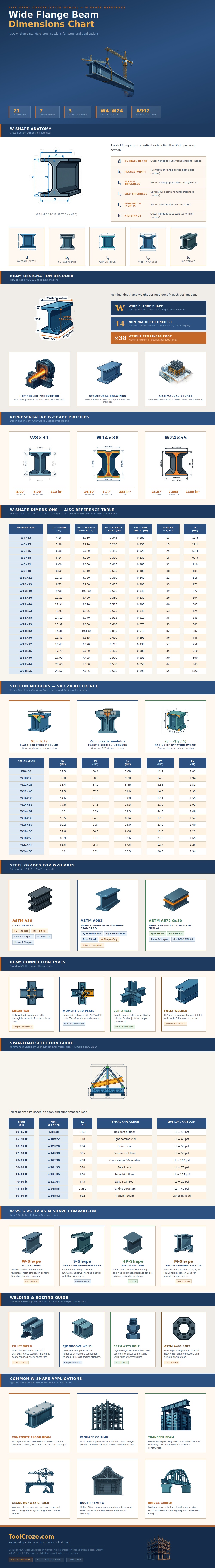

Just the knowledge that a beam labeled “heavier” isn’t necessarily stronger, meaning a beam built to your expectations (as you might guess). For example, a W8x48 weighs more then a W8x31 yet both beams is about the same height. The difference between two? The 48 has thicker flanges and a thicker web. And that makes a difference when you’re battling against buckling. Webs that are too thin crush inwards; thick webs fights that tendency. Here’s where the chart above helps clarify things. It shows that increasing thickness of the flanges and web doesn’t have to change overall height but does increase moment of inertia.
For most light commercial and residential applications, ASTM A992 steel is used. With a yield strength of 50 ksi, it’ll take a serious punch before permanently deforming. The cheaper alternative would be to go with A36 steel (which has a yield of 36 ksi). But you’d have to go with a lot larger section in order to achieve the same strength. Why waste money on material when you can simply goes with a smaller beam? Smaller beams is easier to install and handle. And labor costs generaly outweigh material costs. It’s a classic tradeoff.
The actual trick to choosing your beam size comes down to one thing: Moment of Inertia, Ix as they call it in the chart. That’s the stiffness factor. That’s what prevents your floor from bouncing under foot. Here’s two typical common beams called W14x38 and W24x55. They’re both W shapes. Yet the 24-inch beam is far stiffer for its weight. That’s why deeper beams gets used on longer spans. You cannot cheat physics. If you want a 30-foot span, you’ll need a deep beam. Otherwise, that shallow beam deflect to a noticeable degree. The drywall above cracks. Concrete cracking resists it poorly. Tenants complain. Bigger deeper sections push more material farther away from the neutral axis, increasing efficiency.
Theory meets reality at the connection. Best beam in the world, and you bolt it wrong, no good. For simple connections, a shear tab is common. It resist vertical loading while still allowing rotation. Great for gravity loads. For moment frames, you need to use full welds or high-strength bolts resisting rotation. Standard is A325 bolts for shear. Smart is A490 for moment connection. Seismic zones; the difference is subtle, but critical. Guesswork doesn’t apply here.
Logistics and availability also factor into choosing the correct beam. For example, it’s difficult to pick up a heavy beam. Certain lengths may not exist in a lightweight beam. The W12x26 is one of those workhorses. It’s light enough that two guys can lift it. It is strong enough to have many uses in residential application. It’s the Goldilocks of framing.
When comparing S, W and HP shapes, keep in mind that the W-shape has parallel flanges which helps with welding. The S-shape has tapered flanges adding to complexity. Simple wins in construction. It’s about weight, depth and detail of connections.
How much do I need? How light can I go with my beam and still deflect within limits? That is for the engineers. However, having some sense of what all this means helps us to know what questions to ask. The chart above gives you an idea off these relationships, but just remember, depth buys stiffness and weight buys strength. That’s the intuition. And that’s how the steel holds you up.
