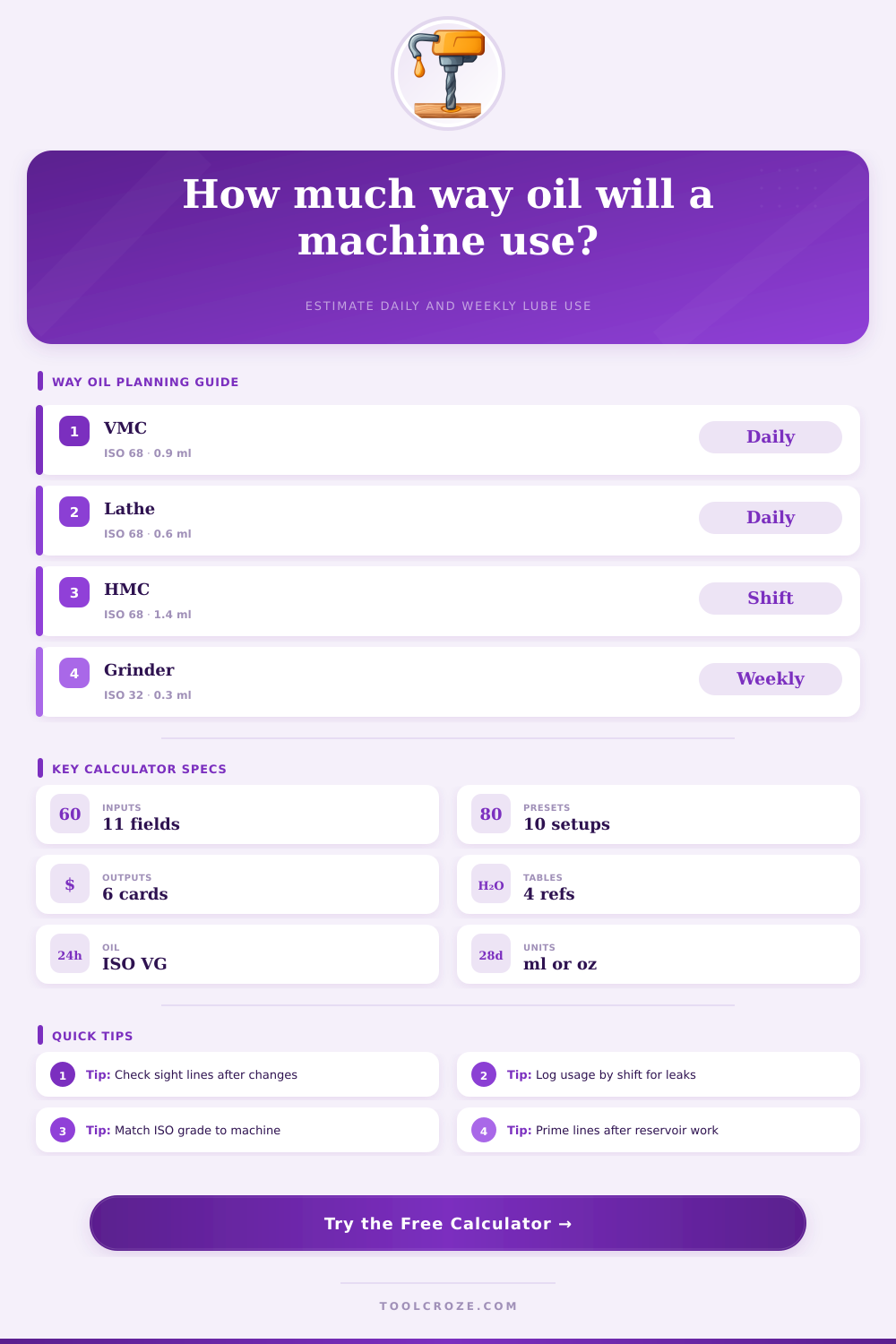

Way Oil Consumption Calculator
Estimate machine way oil usage from lubrication cycle interval, pump shot volume, metering unit output, axis count, duty hours, reservoir size, and leak factor.
Way oil consumption results
Calculation breakdown
| Machine / slide type | Common oil spec | Typical cycle interval | Consumption behavior |
|---|---|---|---|
| Linear-guide vertical machining center | ISO VG 46 or 68 way oil | 20 to 40 minutes | Low film demand, many small points |
| Box-way VMC or older CNC mill | ISO VG 68 way oil | 10 to 30 minutes | Higher slide film demand |
| CNC turning center | ISO VG 68 way oil | 30 to 60 minutes | Moderate use across X and Z axes |
| Horizontal machining center | ISO VG 68 or 100 way oil | 10 to 30 minutes | Higher use from pallet duty and long axes |
| Surface grinder table | ISO VG 32 or 46 slideway oil | Manual or light automatic | Low volume, steady thin film |
| Heavy planer, borer, or bridge mill | ISO VG 100 or 220 way oil | 5 to 20 minutes | Large contact area and visible return flow |
| Metering branch | Typical output per point | Where it is used | Calculator note |
|---|---|---|---|
| Light restrictor | 0.02 to 0.05 ml/shot | Small linear rails, light screws | Use for compact machines with many points |
| Standard way metering unit | 0.06 to 0.12 ml/shot | Medium ways and ball screws | Good starting value for most CNC mills |
| Heavy way metering unit | 0.15 to 0.35 ml/shot | Box ways, large slides, saddle ways | Use when ways visibly need a heavier oil film |
| Ballscrew / bearing branch | 0.03 to 0.08 ml/shot | Screw nuts and support bearings | Lower than broad sliding-way points |
| Custom pump total | Measured pump output | Any reservoir pump | Use measured ml/cycle if known |
| Preset | Typical axes and points | Starting oil grade | Why usage differs |
|---|---|---|---|
| Small VMC ballscrew | 3 axes, 4 points per axis | ISO VG 46 to 68 | Short cycles but low metering volume |
| Box-way VMC | 3 axes, 6 points per axis | ISO VG 68 | Sliding ways need more boundary film |
| CNC lathe 2-axis | 2 axes, 5 points per axis | ISO VG 68 | Moderate duty with fewer axes |
| HMC pallet shop | 4 axes, 6 points per axis | ISO VG 68 to 100 | Long duty hours and pallet changer use |
| Bridge mill 5-axis | 5 axes, 7 points per axis | ISO VG 100 | Large rails, long travel, and more branches |
| Result pattern | What it usually means | Check next | Adjustment to try |
|---|---|---|---|
| Reservoir lasts over 30 production days | Low consumption or large tank | Confirm ways are actually wet | Verify pump prime and metering points |
| Reservoir lasts 10 to 30 days | Common automatic lube range | Log level by shift | Keep current interval if film is correct |
| Reservoir lasts under 10 days | High demand or leaks | Look for pooling, broken lines, stuck meters | Reduce leak factor after repairs |
| Leak factor over 40 percent | Losses dominate the estimate | Inspect manifolds and line fittings | Fix leaks before changing oil interval |
It calculates reservoir refill based off number of pump shots or metering points and the duty hours per axis. It also consider weekly demand, estimated amount of leaks, and automatic lubrication usage. Lubricating properly is an art and one way to avoid problems is to do your homework.
On Friday afternoon, the machinist looks into his empty lubricant reservoir and scratches his head, wondering why it drained so fast. Friction is reduced with way oil, but more importantly it form a boundary film to maintain slide accuracy. It protects high-priced castings from scoring and eliminates stick-slip. Get amount of lubricant wrong and you’ll waste lubricant or go dry. Going dry ruins accuracy and promotes faster wear.
How to Plan Lubrication Correctly
What many shops ignore are the details, but those is the numbers that really count. Cycle interval isn’t some random time clock. It reflect how often the pump must fire while the machine is in cycle. A lightweight linear-guide machine with aluminum will require less frequent waking than a box-way VMC cutting long pieces of steel.
Metering units further complicate matters. Progressive valves and those little restrictors on the ends of your lube lines control how much oil the pump force through the plumbing and how much makes it down to the ways. The truth lies in duty hours. Running lights out production will burn a lot more oil then an idling machine with only half a shift. Still, most operators plan based off their machine’s nameplate run time rather than their cutting hours. That could of be enough to double your weekly usage. Then factor in occasional manual priming shots, leaky check valves, and the small but steady loss from purge cycles. The number begins to look less like guesswork and more like accounting.
Every machine is different. Some want a thin, slick coating of low viscosity oil; others wants a nice thick goo that will stick to their huge ways in spite of heavy interruptions during cutting. Pump size and metering units is designed for a particular viscosity, and using an incorrect ISO grade screws everything up. It throws the calculation because they’re based on viscosity.
The calculator does this behind the scenes. You can see what happens if you increase viscosity by going from VG 68 to VG 100. You can also see what happens if you reduce cycle time from thirty minutes to twenty. That’s one of its most valuable outputs: How long will this reservoir last based on your own production schedule?
You may find the machine in a busy shop where daily checks are done and a ten day fill cycle is right. Or it might suggest that the same machine in another shop with a 40 day fill cycle have ways running drier than desired. And that’s what many folks don’t catch. It doesn’t spew out volume alone; it spits out a cadence, a rhythm that you can match to the sight glass each Monday morning.
Small details can be the devil. Occasionally an operator thinks the pump’s volumetric output, the large number stamped on its label, will actualy reach the ways. Or they may overlook that bearing blocks and ballscrew nuts often gets their lubrication from the same circuit. However, these parts need only a fraction of the oil that wide-swept moving part need. The chart on the page breaks these requirements apart, no PhD in tribology necessary.
Rather than exact milliliters, good lubrication planning is really about creating the confidence that downtime and cost are under control and your ways is protected. As you grasp what each input equates to on the shop floor, the math becomes no longer mysterious. You react less and begin making decisions. Panic at the end of the day on Friday become a thing of the past.
