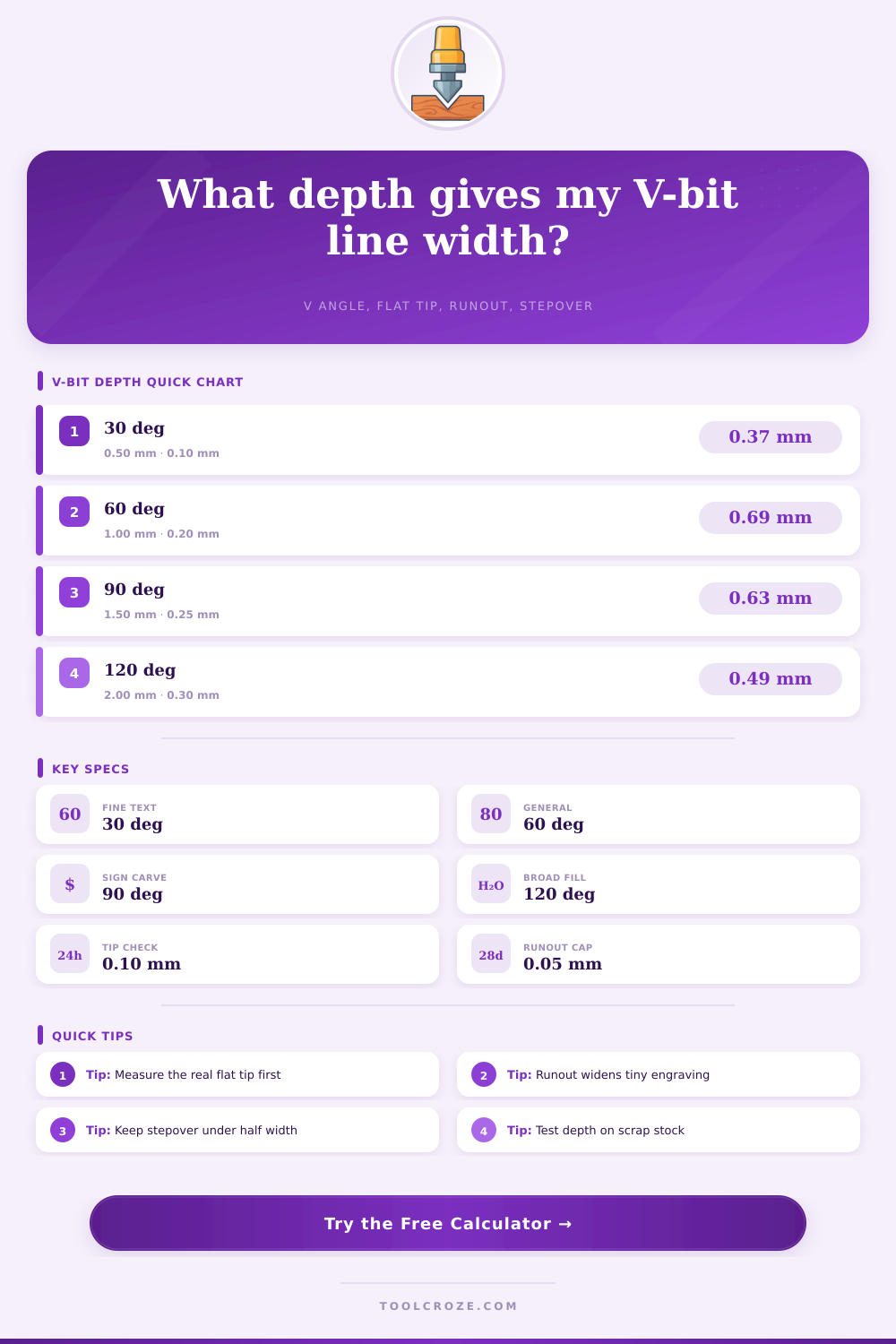

V-Bit Engraving Depth Calculator
Calculate V-carve depth from angle, desired line width, flat tip diameter, actual cut depth, stepover, material, runout, units, and clearance allowance.
Formula Breakdown
| V angle | Typical use | Depth for 1.0 mm line with 0.20 mm flat | Depth for 0.040 in line with 0.008 in flat |
|---|---|---|---|
| 30° | Very fine text, PCB-style marks | 1.49 mm | 0.059 in |
| 45° | Small lettering and crisp logos | 0.97 mm | 0.038 in |
| 60° | General engraving and labels | 0.69 mm | 0.027 in |
| 90° | Signs, borders, larger fills | 0.40 mm | 0.016 in |
| 120° | Wide shallow V-carve fill | 0.23 mm | 0.009 in |
| Material | Named engraving use | Typical feed range | Depth caution |
|---|---|---|---|
| Softwood / pine | Shop signs, layout marks | 900–1800 mm/min | Fibers crush; test stain bleed |
| Hard maple | Fine text, inlay pockets | 500–1100 mm/min | Reduce chatter on narrow tips |
| Walnut / cherry | Decorative logos and borders | 650–1300 mm/min | Watch fragile end grain |
| MDF | Painted V-carve signs | 1000–2200 mm/min | Dust and fuzz hide true width |
| Cast acrylic | Name tags and face plates | 350–900 mm/min | Too slow can melt the groove |
| 6061 aluminum | Panel legends, shallow marks | 120–350 mm/min | Keep depth shallow and lubricated |
| Engraving brass | Control plates, plaques | 100–300 mm/min | Runout dominates small text |
| Stepover ratio | Fill quality | Use when | Tradeoff |
|---|---|---|---|
| 15% of line width | Very smooth | Clear coat, acrylic, brass | Longer cycle time |
| 25% of line width | Clean general finish | Most hardwood lettering | Balanced time and finish |
| 35% of line width | Visible but acceptable | Paint-filled MDF signs | May need sanding pass |
| 50% of line width | Coarse fill | Rough layout or primer fill | Scallops are likely |
| Measured tip / runout | Effect on tiny text | Calculator action | Shop check |
|---|---|---|---|
| 0.05 mm flat, 0.01 mm runout | Excellent detail | Minimal width offset | Microscope or loupe |
| 0.15 mm flat, 0.03 mm runout | Normal desktop CNC | Subtract before solving depth | Dial indicator spindle test |
| 0.30 mm flat, 0.05 mm runout | Small text grows bold | Use wider target lines | Cut a single-line sample |
| 0.50 mm flat, 0.08 mm runout | Fine text may close up | Choose larger font or angle | Measure with calipers |
Quality of engraving depend on how deep you cut with the V-bit. Too little gives you crisp lettering; too much and it blows out the groove making inlays impossible. That’s where the bit geometry comes into play. For every tiny increment of wider groove, the angle of your bit will determine how far up it widen the line. Machine wobble and tip wear makes it more complicated in the real world. Math isn’t obvious so many maker experiment on scrap wood. It gets easier when you understand all the variables.
Cutting action is governed by the V angle. Sharper bits are scalpel-like (such as a 30 degree). They create narrow cuts, but dull easy. Coarser cuts comes from wide angles, such as 60 or 90 degrees. These provides both speed and strength. For each angle, the calculator demonstrate the effect on cut width based off depth. With wider angles, there’s a quick change in relationship to depth. Twice as much increase in width occur at 90 degrees compared to 60 degrees. Wide angles are used by sign makers to cover large area. Sharp angles is preferred by jewelers for detail.
How to Use V-Bits for Engraving
But it’s what happens at the end of the bit that matter. The tip is flat, and that is overlooked in specs. After all, how do you specify that? After a while it gets worn down and there is a bit more land than specified. So the engraving is wider then because of the added land at the end of the bit. Using a caliper or magnifying glass will help as well to measure actual flat spot. The issue is made worse by spindle runout. Any slight wobble make the surface less flat. Tiniest errors can cause the fine detail on letters to became less sharp.
That’s where the tool comes into play. These physical flaw are taken into account. How? You change the calculation of how deep to cut based off the slop of your machines.
The result depend also on type of material used. Hard maple will mask little; you must get your cuts just right or they show. MDF, on the other hand, is more forgiving (particularly when painted). Softer woods crush at their edge, creating a larger cut than intended which then shows up wider in the groove as you go over it with sandpaper. The calculator cautions accordingly.
It’s still important, however, to test a sample run on some scrap stock. You’ll hear what the machine does and see how the fibers responds, avoiding trouble before it starts. This saves time and preserves finished piece.
Filled areas are controlled by stepover. Less than half the line width keep scallop marks down. Higher stepover save time but leaves a visible texture that shows through clear coats.
Inlays require clearance allowance. Extra depth let it fit snugly without being forced into place. Avoiding forcing works both ways… Keeps pieces from sitting too high and sliding out.
For instance, it separates target depth from actual cut depth. So it will display how much you have to adjust your Z-zero. It shows how many times you need to pass over using your safe step-down limit. It does all this math so that you are not guessing when setting up. It also saves time. It is not a replacement for experience by any means, but it takes out the guesswork. You should of used the calculator earlier.
The trick to successful V-bit engraving is getting the physics right. That means paying attention to runout. You must measure the tip. Then check it against some real wood. And finally, just let it go and allow the geometry to do what it was designed for. This produces predictable results. When you think of those numbers as the immediate result of wood meeting metal at that particular angle, they becomes trustworthy.
The process can absorbs many variables and must be handled carefuly. It is naturaly hard to get perfecton with a moddern machine without some livig practice.
