Tank Weight Calculator Steel
Estimate steel shell weight, head weight, nozzle allowance, liquid load, gross operating weight, support reaction, and lift planning weight for horizontal or vertical tanks.
Full Calculation Breakdown
| Material spec | Typical density | Common tank use | Weight note |
|---|---|---|---|
| ASTM A36 carbon steel | 490 lb/ft³ | Shop tanks, skids, saddles | Baseline carbon steel weight |
| ASTM A516 Gr 70 | 490 lb/ft³ | Pressure vessel shells | Same density as A36 for estimating |
| 304 stainless steel | 500 lb/ft³ | Food, water, chemical service | About 2 percent heavier than carbon steel |
| 316L stainless steel | 500 lb/ft³ | Corrosive and chloride service | Use actual mill cert when available |
| Duplex 2205 stainless | 515 lb/ft³ | High strength corrosive service | Heavier density but may use thinner plate by design |
| Head type | Area factor used | Typical application | Estimator caution |
|---|---|---|---|
| Flat circular head | 1.00 × disk | Atmospheric end plates, bottoms | Does not include reinforcement rings |
| Flanged-dished head | 1.12 × disk | UL tanks, low pressure vessels | Knuckle adds surface area and weight |
| 2:1 elliptical head | 1.18 × disk | ASME pressure vessels | Good preliminary shop weight factor |
| Hemispherical head | 2.00 × disk | High pressure service | Large area but efficient for pressure |
| Cone roof | 1.08 × disk | API 650 vertical storage | Rafters and curb angles are separate |

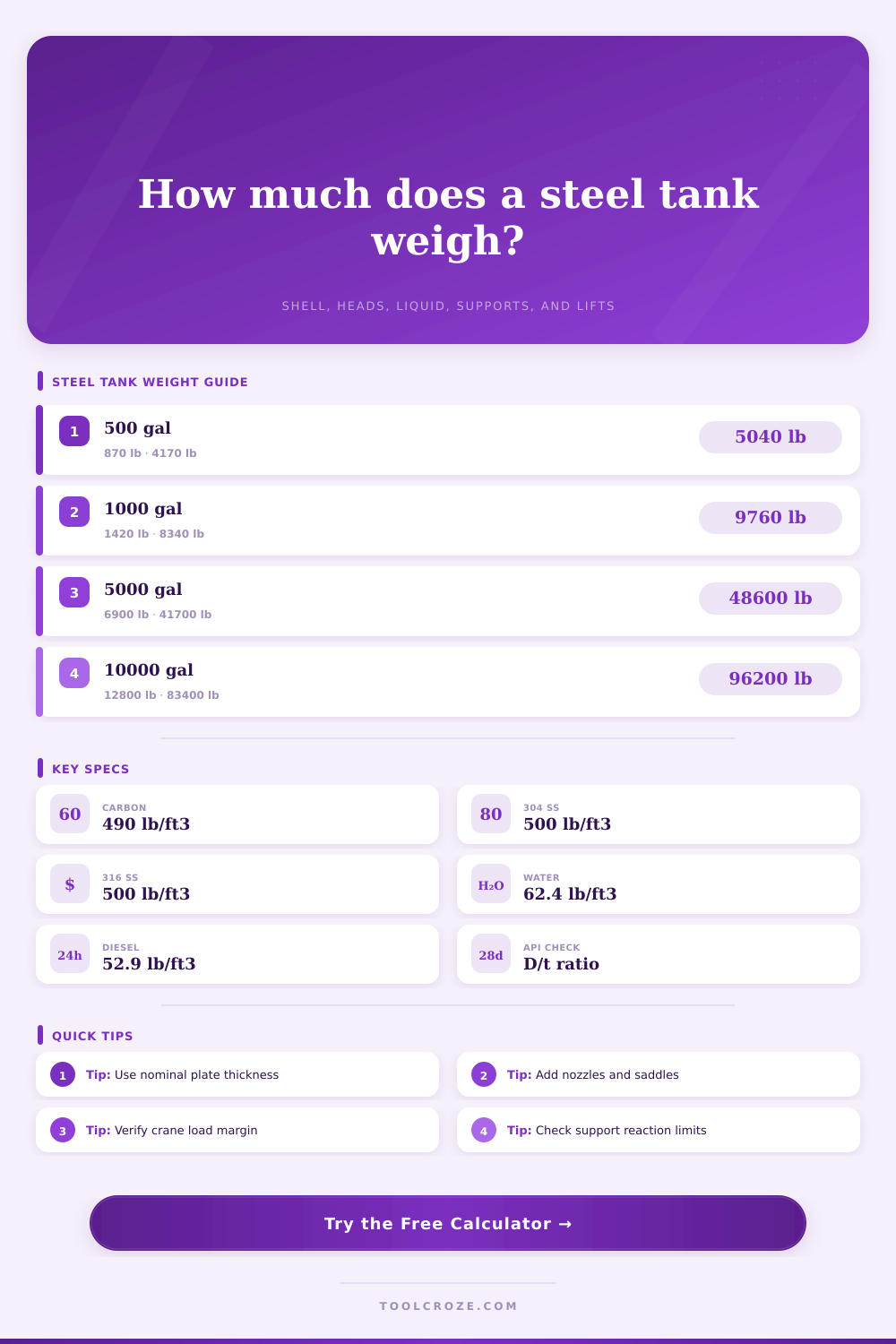

| Nominal tank | Example dimensions | Typical plate | Planning check |
|---|---|---|---|
| 500 gal horizontal UL-142 | 48 in dia × 6 ft | 3/16 in shell | Saddles usually govern reactions |
| 1000 gal horizontal farm tank | 64 in dia × 6 ft | 3/16 in shell | Check full liquid plus saddles |
| 5000 gal vertical water tank | 96 in dia × 11 ft | 1/4 in shell | Foundation sees full operating load |
| 10000 gal API-style tank | 120 in dia × 14 ft | 1/4 in shell | Roof steel and wind clips matter |
| 20000 gal fire water tank | 144 in dia × 21 ft | 5/16 in shell | Anchor and slab checks are separate |
| Plate thickness | Carbon steel psf | Stainless psf | Tank estimating use |
|---|---|---|---|
| 10 ga / 0.135 in | 5.51 lb/ft² | 5.63 lb/ft² | Small day tanks and light covers |
| 3/16 in / 0.1875 in | 7.66 lb/ft² | 7.81 lb/ft² | Common shop-built shell estimate |
| 1/4 in / 0.250 in | 10.21 lb/ft² | 10.42 lb/ft² | Large atmospheric shells and heads |
| 5/16 in / 0.3125 in | 12.76 lb/ft² | 13.02 lb/ft² | Heavier water and fire tanks |
| 3/8 in / 0.375 in | 15.31 lb/ft² | 15.63 lb/ft² | Pressure shells and reinforced zones |
Lifting mistakes is not good. It’s important to estimate weight of your steel tanks. If you have ground prepared with a solid foundation and even have a crane on site, all will be for nothing if the tank exceed the rated lift capacity. In other words: What does it weigh empty? Full? On the truck? Many folks think they know shell weight and fail to account for everything else. That’s where things go wrong.
To use it, simply input dimensions and let the calculator do the rest. But first: What does each thing mean? The main input is grade of material. By default, that’s carbon steel (ASTM A36). Stainless grades, like 304 and 316L, are roughly two-percent heavier. For large tanks, such as ten-thousand-gallon ones, that little number go up really quickly. If you’re looking at the same-size stainless tank than a carbon one, it will strain support even further; make sure you account for this increased weight prior to having foundation concrete poured.
Why You Must Calculate Steel Tank Weight
Weight. The shape of heads also contributes to this. Flat heads is lightweight and easy but don’t hold pressure as well. Elliptical and torispherical heads distribute stress and improve the strength but they do have more surface area and thus weigh more in steel. Since a curved head weigh more than a flat disk, weight equation has a couple of factors specifically addressing these shapes. It’s an important detail if you’re working with tight load limitations such as lightweight skid mounts or rooftop installs.
Appurtenances are no exception. Internal coils, ladders, manways and nozzles all add to your tank’s weight and aren’t accounted for in the shell thickness formula. A typical addition is eight percent for appurtenances, though if your tank has heavy heating elements or is jacketed this could be more.
Looking at the reference table will give you a feel for what the shell weigh in pounds per square foot, helping you see where weight goes on the tank. Note that increasing shell thickness increases its poundage but also allow for greater diameter before it bends too far. You’ll have to balance overall dead load and structural integrity.
The gross operating weight is largely influenced by liquid density. Water is heavy, around sixty-two pounds per cubic foot, but diesel or ethanol changes the equation entirely. These liquids turns the equation on its ear. Changing oil or adding brine greatly alters the liquid mass. The calculator allow you to switch the liquid densities for an empty and a full tank and witness impact that has on the vessel’s overall weight. This distinction is essential for foundation design because only the empty steel skin (tare weight) do not affect the ground.
Safety margin should of applied when planning the lift. In the field, dynamic forces and wind make this lift different than a static shop move. Applying a factor of at least 1.15 will assure you don’t throw the riggers for a loop when hook is in the air. It is better to have more crane capacity then to realize mid-air that the load is over the rated limit.
Estimates based off accurate data. Get the numbers right prior to the hook touching the tank. Final weights must be verified by both mill certificates and approved drawings. The steel doesn’t give a hoot what you think; get the numbers right.
