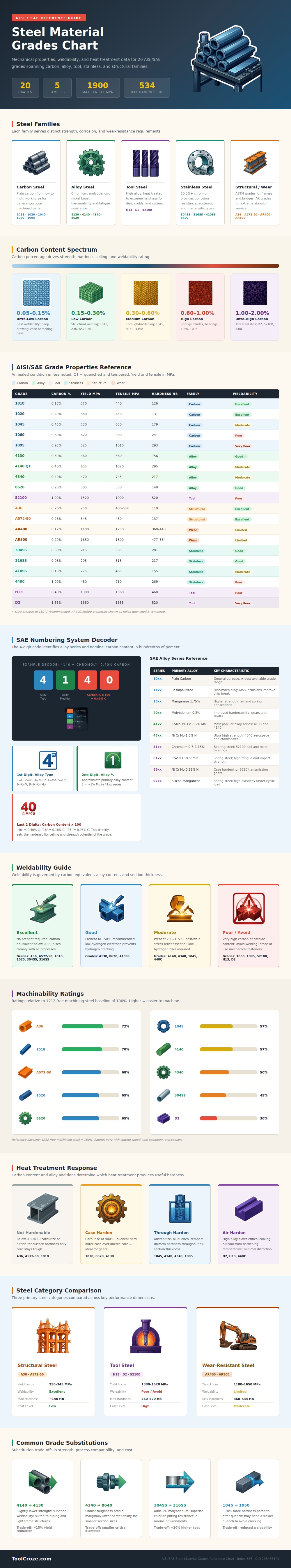

“You’ve got this hunk of steel that is all gray and hefty looking; there’s another hunk just like it. You ask yourself, “How do I pick which one?” as you stare at a pile of raw materials in the machin shop. If you make the incorrect choice, you’ll spend more money. All steel appear identical, yet each grade have significant mechanical differences. There are two dozen popular grades (see chart above), and each belong to one of five families. These range from soft beams to hard tool steels.
It is a decision tree for those who want to know how any given piece will withstand pressure. The reason is the Carbon Content.
How to Choose the Right Steel
Low carbon steel like A36 or 1018 are soft, machine quickly, and weld easily. These are your frames and brackets you assemble.
Your higher carbon grade 1095 is strong and hard. It is difficult to work with, but it resist wear. You would of use this on bearings and knives. It has more strength then less weldability.
Impact loads matter in part design. Elements such as nickel or chromium are added to alloy steels. They increases performance with minimal amounts of carbon. An example is Grade 4140. This contains moderate amounts of carbon, but its alloy combination increase its strength. Yet, it remain relatively tough and can be quenched and tempered into high strength. It also resist shock. However, 4140 must be preheated when welded. If not, cracking will occur.
Alloying slows the cooling process in heat treating. As a result, it harden deep without brittleness.
Then there’s tool steels such as H13 or D2. Those have been developed for their heat resistance and extreme hardness. These are materials that you don’t really weld. They’re made by forging or casting into molds and dies. They are typicaly very hard (exceeding 500 on the Brinell scale). This means special cutters, like carbide or diamond tools… Must be used to machine them. Use anything else and it’ll tear up your tool.
But AR400 steel isn’t like that. Instead of being something that cuts stuff, it gets beat up in construction and mining applications where it resist wear very well.
Grade numbers is useful for selection. First two digits are the alloy family. Last two digits are carbon percentage. So, 1045 is 0.45 percent carbon. 4140 is 0.40 percent carbon. Once you get the pattern in your head it stops feeling like a bunch of random codes for names. You can figure out what’s going on before you have to go measure the part.
Steel is all about capability, not just strength. A bridge beam does not need the hardness of a drill bit. A gear tooth do not need the weldability of a sheet metal bracket.
The chart tells you what’s possible. Within those limits you go. Prioritize function. Check the carbon level. Test the weldability and avoid costly mistakes.
Respect steel’s limits and it will be forgiving. Don’t, and it’s unforgiving.
