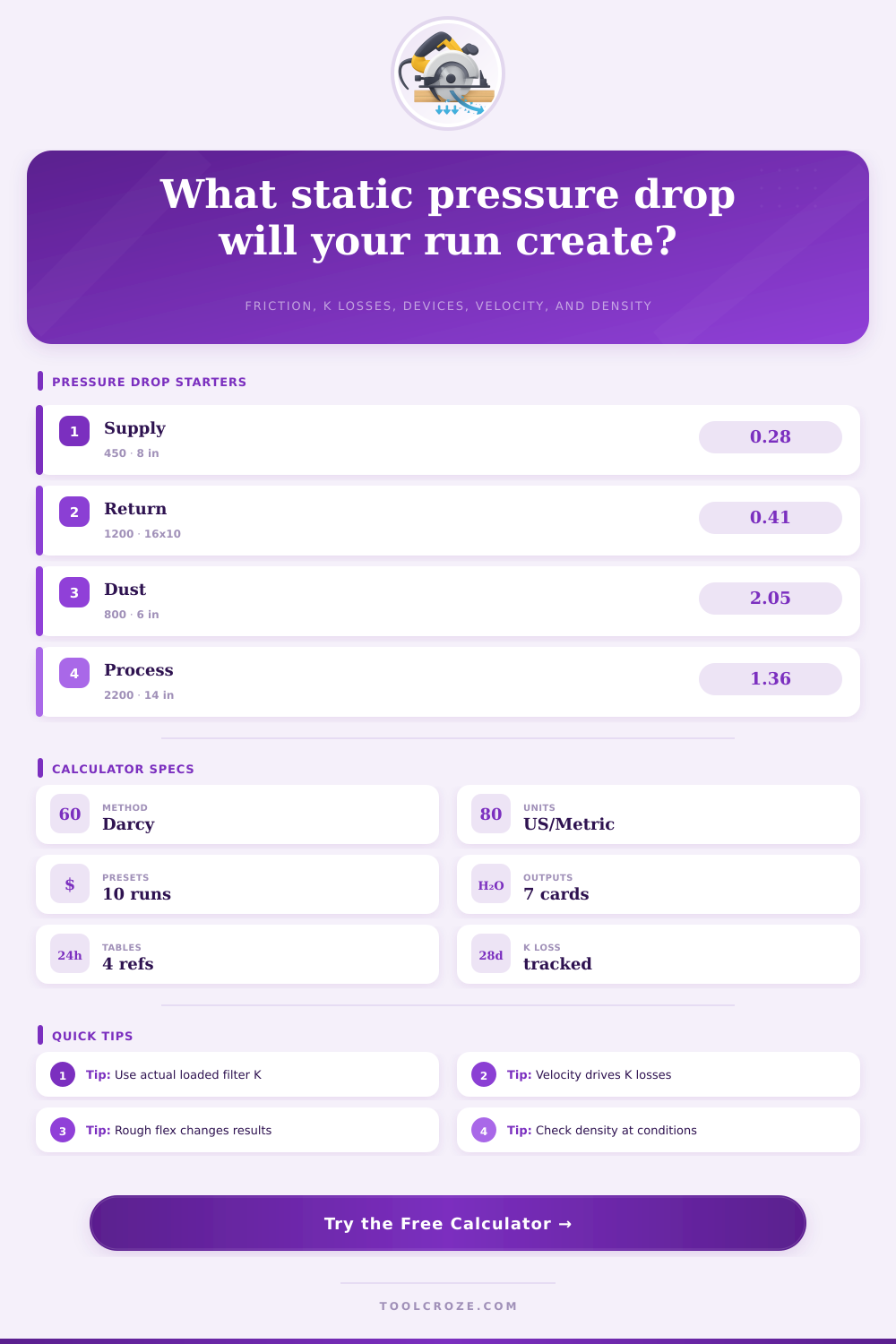

Static Pressure Drop Calculator
Estimate density-corrected pressure loss through straight duct or process pipe, fittings, dampers, filters, and other K-rated devices.
▣System presets
Load a realistic HVAC, dust, exhaust, or process-air case, then tune the component counts and roughness to match the actual run.
▥Pressure drop inputs
▦Component drop grid
After calculating, this grid separates the total into the pieces that usually matter most: length, fittings, filter/device K, fixed device drop, density, and velocity reserve.
▧Reference tables
| Surface | Typical roughness | Use case | Pressure effect |
|---|---|---|---|
| PVC or smooth plastic | 0.000005 ft / 0.002 mm | Process exhaust, lab lines | Very low friction |
| Smooth steel or aluminum | 0.00015 ft / 0.046 mm | Clean pipe or smooth duct | Low friction |
| Galvanized sheet metal | 0.00050 ft / 0.15 mm | Common HVAC duct | Normal baseline |
| Flexible duct, pulled tight | 0.0030 ft / 0.91 mm | Short HVAC flex runs | High friction |
| Component | K used | When to use | Model note |
|---|---|---|---|
| Long-radius 90° elbow | 0.35 | Smooth sweep elbows | Lower loss than mitered turns |
| Square or miter 90° | 1.20 | Sharp shop-fab turns | Can dominate small runs |
| Tee branch entry | 1.80 | Branch joining a trunk | Highly geometry dependent |
| Open discharge | 1.00 | Exit to room or atmosphere | Consumes velocity pressure |
| Application | Low velocity | Normal velocity | Watch point |
|---|---|---|---|
| Quiet supply HVAC | 600 FPM | 900 FPM | Noise rises fast above target |
| Return trunk | 500 FPM | 1200 FPM | Filter face loss matters |
| Dust collection | 3500 FPM | 4500 FPM | Keep chips suspended |
| Process exhaust | 1500 FPM | 3000 FPM | Confirm capture requirement |
| Preset | Shape | Key loss source | Design use |
|---|---|---|---|
| Cleanroom HEPA module | Rectangular | Device K plus fixed drop | Terminal filter comparison |
| Dust collector branch | Round | Velocity and elbows | Shop duct sizing |
| Fume hood exhaust | Round | Entry, stack exit, damper | Lab exhaust check |
| Baghouse inlet pipe | Round | Long run friction | Industrial process air |
▩Calculation tips
To get the airflow you expect, you must calculate the systems resistance, measured in inches of water gauge. Failure to do so result in a noisy, energy-wasting system. Knowing this up front will avoid headaches down the road.
Straight pipes and ducts offers resistance due to friction. The faster the air moves, the rougher the surface, and the longer the run, the greater the friction loss. Smooth inside materials like PVC and aluminum has less drag than galvanized metal. Also, flexible duct offer more drag than a rigid duct of equal size. These variations matter and impact total pressure so you need to factor them in.
How to Calculate Air System Resistance
Extra fittings make it harder for the system to work. Tees, elbows, and transitions result in pressure loss depending on velocity pressure. The higher the airspeed, the greater the losses (which are proportional to the square of the airspeed). This velocity-squared relationship means a few quick turns can rob as much pressure as a longer run in a straight line. You dont need to look things up in a reference book; you can estimate the losses using K-factors. Long-radius elbows create far less pressure drop than mitered ones. Smooth out your fittings and save yourself total pressure drop.
Dampers, filters and coils also reduces pressure. Every component extracts its own pressure penalty. Some manufacturers rate their units with a K value or offer pressure curves for a given airflow. A K-factor loss changes with duct size and velocity. A fixed pressure drop (such as a loaded filter) stays roughly the same regardless of velocity. Use the pressure drop of a loaded filter, not a clean one. Avoid error once the system is up and running.
Air density deserves more attention than it usually gets. The standard calculation assumes sea-level air at seventy degrees. Higher density increases pressure drop. Lower density reduces it. For different gases, temperature and/or altitude, you need to correct for this. This would include any hot exhaust system or high-altitude lab. And the results will be accurate once corrected for density.
Comfort and efficiency are functions of velocity. Too low a velocity allows dust particles in the airstream to fall out of suspension. Too high velocity results in higher energy consumption, and it makes more noise. The right velocity for any application is a function of the application. Dust-collection lines has different requirements different than office ducts. Generally, raising the diameter of a duct lowers overall pressure drop by reducing velocity (velocity pressure varies as the square of velocity).
The poor performance is often due to common mistakes. Common mistakes include forgetting the exit loss when air discharges into a room, using clean-filter instead of loaded-filter values, and ignoring density corrections on hot roofs. Each is another source of error that accumulates in the total. What looked right on paper might actualy require a bigger fan. Be sure to double-check these things because you dont want change orders.
You can then check your numbers against the reference tables. The reference tables give you a starting point. You can determine what kind of fan and duct sizes you need. And they recommend velocity ranges based off K factor and roughness value.
A system that works well. A decent static pressure estimate will help you choose the proper fan, properly size your ductwork, and so on. Little changes can yield big results. A straighter duct run, one less elbow, etc., may release enough static capacity for the entire system to operate more effectiveley.
Do so taking into account the reality of your situation. Whether you compute it or not, the resistance is there. Pressure drop puts you back in control. From this knowledge you can select ducts and fans confidently. Understanding the real pressure drop is what makes the difference. That makes a difference that means the system operates as intended in the real world. As intended under actual operating conditions.
