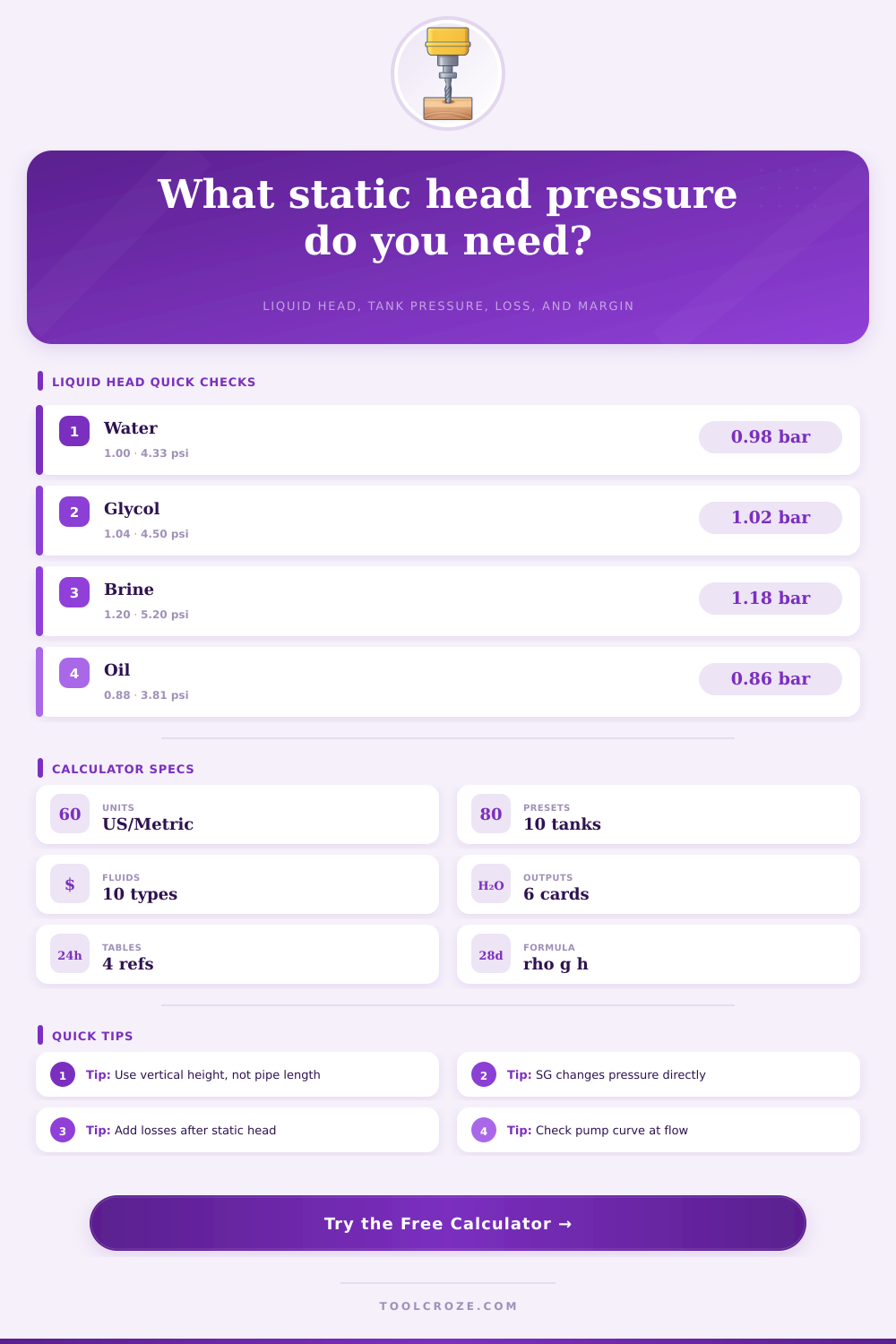

Static Head Pressure Calculator
Estimate liquid static head pressure for tanks, pumps, reservoirs, and transfer lines using fluid specific gravity, liquid height, elevation difference, tank pressure, pipe losses, and safety margin.
📌Pump and tank presets
Start with a liquid system profile, then adjust the fluid, column height, elevation, tank gauge pressure, and optional pipe-loss allowance.
📏Liquid head, pressure, and loss inputs
Calculation breakdown
💧Fluid and pump grid
The grid shows how selected fluids change pressure per vertical foot and what pump style usually fits the service.
📑Static head pressure reference
| Fluid or SG | Pressure per foot | Pressure per meter | Use this for |
|---|---|---|---|
| Water, SG 1.00 | 0.433 psi/ft | 9.81 kPa/m | Open tanks, cisterns, reservoirs |
| Light oil, SG 0.88 | 0.381 psi/ft | 8.63 kPa/m | Fuel, oil, and tote transfer |
| Glycol mix, SG 1.04 | 0.450 psi/ft | 10.20 kPa/m | Hydronic and process loops |
| Brine, SG 1.20 | 0.520 psi/ft | 11.77 kPa/m | Salt solution and dense liquids |
| Caustic, SG 1.22 | 0.528 psi/ft | 11.97 kPa/m | Chemical day tanks |
⚙Head component table
| Component | Sign convention | Formula used | What it means |
|---|---|---|---|
| Liquid column height | Positive pressure at base | SG x 0.433 x height ft | Hydrostatic pressure from liquid depth |
| Elevation difference | Positive uphill, negative downhill | SG x 0.433 x lift ft | Static lift the pump must overcome |
| Tank gauge pressure | Positive pressure helps | Subtract from pump requirement | Pressurized tanks can reduce pump duty |
| Pipe and valve loss | Always added when entered | Pressure loss or head loss converted | Friction loss at the desired flow rate |
| Safety margin | Multiplies positive requirement | Subtotal x margin percent | Allowance before checking pump curve |
🔧Pump and tank scenario table
| Scenario | Typical static range | Watch item | Practical pump note |
|---|---|---|---|
| Open cistern to fixture | 10 to 80 ft head | Elevation lift dominates | Check required pressure at target flow |
| Elevated storage tank | 15 to 120 ft head | Downhill head may help | Pressure-reducing valve may be needed |
| Pressurized vessel | Tank pressure plus lift | Gauge pressure sign | Tank pressure can reduce pump work |
| Chemical day tank | 5 to 40 ft head | Fluid SG and compatibility | Metering pumps often publish max psi |
| Glycol or brine loop | SG above water | Higher density and viscosity | Add dynamic loss from the loop calc |
📊Pressure and head conversion table
| Conversion | Water value | SG-adjusted use | Calculator note |
|---|---|---|---|
| 1 ft water | 0.433 psi | Multiply by SG | Base imperial head factor |
| 1 psi | 2.31 ft water | Divide by SG | Pressure to liquid head |
| 1 m water | 9.81 kPa | Multiply by SG | Base metric head factor |
| 1 bar | 10.20 m water | Divide by SG | Metric pressure to head |
| 1 kPa | 0.102 m water | Divide by SG | Small pressure checks |
💡Static head calculation tips
Static head is one of the component that goes into calculating the size of the pump that will be used for a system. Static head is also a component that remain constant throughout the operation of the system. Furthermore, static head exerts a force for every vertical foot of the liquid in the system.
If the static head is calculated incorrect, the pump will either have to work harder then necessary to perform its tasks, or the pump will fail to perform those task altogether. Therefore, if a person calculates static head incorrectly, the discharge pressure will differ from the actual measured discharge pressure after the system is install. Vertical distance is one of the factor that must be considered when calculating static head.
What Is Static Head in a Pump System
However, the vertical distance isnt the same as the length of the pipe that will be used to distribute the liquid to the various point of use. A long pipe will allow for the movement of the liquid over a short distance will produce more static head. Each of these variable must be entered separately into a static head calculator; each represent a different mathematical component of the calculation.
Furthermore, these two variable must remain separate from one another in order to allow for accurate calculation of static head. The specific gravity of the liquid will impact the amount of pressure that is produced for each foot of height of the liquid. The specific gravity will also have a direct impact upon the static head calculation.
Water has a specific gravity of 1.0. Moreover, water will produce 0.433 psi for each foot of the height of the water column. However, other fluid have different specific gravities.
As a result, there will be a difference in the amount of psi for each foot of height of those fluids. A different specific gravity can be entered into a static head calculator to adjust for fluid other than water. The pressure and the elevation of the tank will also impact the static head.
Positive pressure in the tank will reduce the amount of static head. Negative (vacuum) pressure will increase the static head. Furthermore, if the elevation is above the reference point, this will increase the static head.
However, if the elevation is below the reference point in the system, the static head will decrease. The static head calculator will ask for both tank pressure and elevation, as each impact the system differently. Furthermore, the system will subtract the tank pressure from the elevation demand in the system to determine the true static head of the system.
Pipe loss is a separate calculation from the static head. The concept of pipe loss is separate from static head because pipe loss is dependent upon the flow rate, size of the pipe, and various component in the system that introduce friction in the system. The amount of static head that is required to move the fluid from the tank to the various point of use will change if the level of the tank change.
Pipe loss does not change with the level of the tank. Therefore, pipe loss is calculated separately from static head, and the two figure are combined to determine the total dynamic head of the system. This separation of the two concept allows for the testing of various flow rate.
Furthermore, it also allows for the inclusion of a safety margin to the dynamic head before consulting the manufacturer curve for the pump. Although static head may seem like a number that is static and does not change throughout the operation of the system, there are a variety of factor that can impact the static head of a system. Static head change with the change in tank level, the temperature of the liquid, and the barometric pressure.
A static head calculator will calculate static head for a specific set of condition for the system. If any of those variable change, the calculation will need to be performed again. Therefore, static head calculation will need to be performed again if the tank level change or the fluid change.
The last step in the calculation of static head is to compare the static head that is required to supply the system with the available curve of the pumps that will supply that system. Furthermore, it is also necessary to ensure that the systems component can handle the dynamic head of the system at the highest flow rate. Thus, while static head is just one of the factor to consider in the sizing of the pump for a system, it is a critical value that cant be ignored in the operation of that system.
