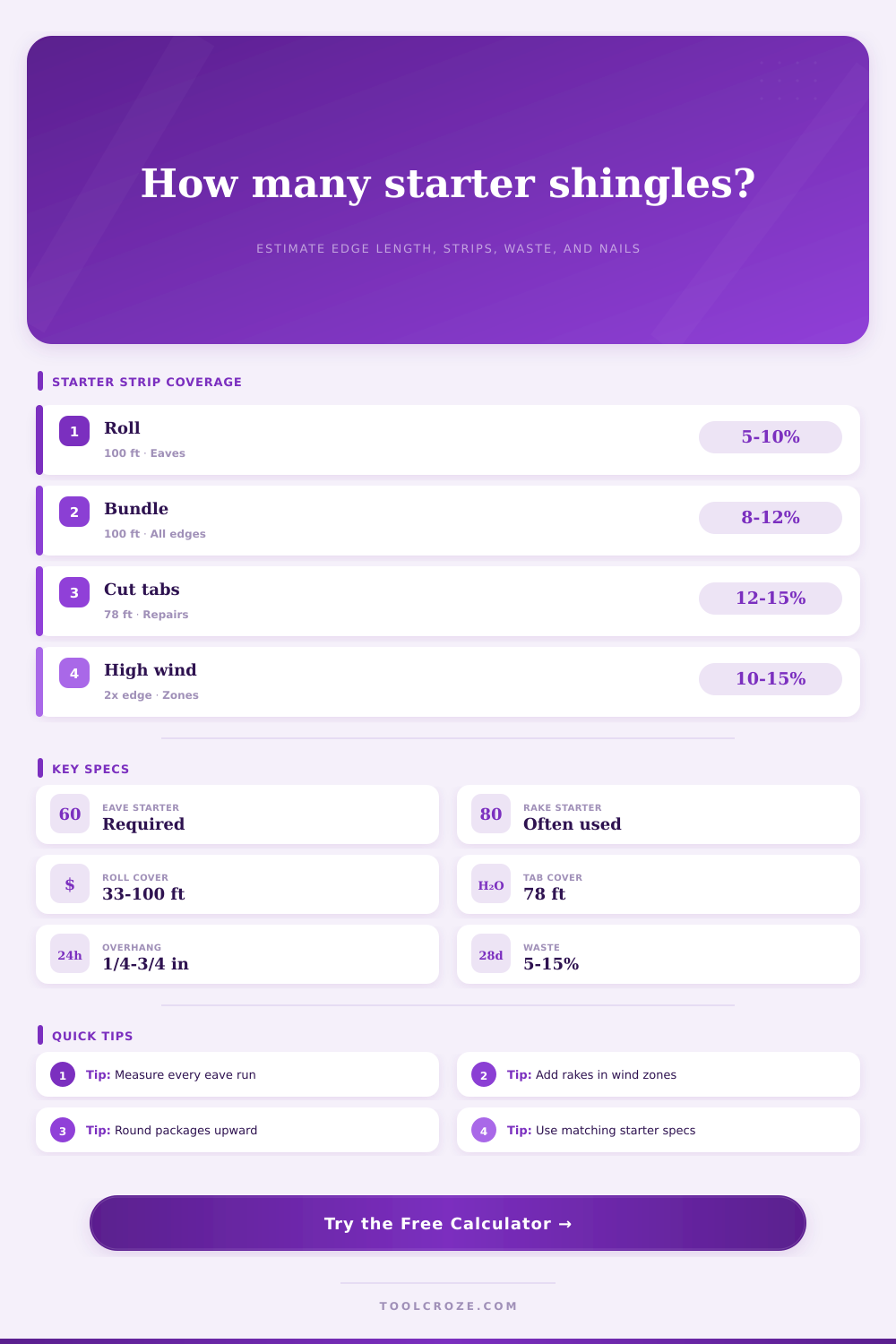

Starter Shingle Calculator
Estimate starter strip quantity for eaves, rakes, roof edges, overhang allowance, cut-tab conversion, waste, and high-wind extra starter runs.
⚡Starter Edge Presets
📏Roof Edge Inputs
📋Starter Spec Grid
📚Reference Tables
| Roof edge preset | Typical starter placement | High-wind adjustment | Best use |
|---|---|---|---|
| Simple gable | Eaves and two rakes | 0 to 15% | Standard house roof |
| Hip roof | Eaves around perimeter | 0 to 15% | No gable rake edges |
| Shed roof | Lower eave and side rakes | 15 to 25% | Open side exposure |
| Rake repair | Selected sloped edges | 0 to 25% | Partial reroof sections |
| Starter type | Input coverage | Piece length | Calculation note |
|---|---|---|---|
| Pre-cut starter bundle | 100 linear ft | 40 in | Use package label coverage first |
| Starter roll | 33 to 100 linear ft | Continuous roll | Round rolls upward after waste |
| Cut 3-tab shingles | About 78 linear ft | 13.3 in tabs | Counts full shingles and bundles |
| Custom strip | User entered | User entered | Match the product data sheet |
| Fastener spacing | Nails per 100 ft | High-wind use | Field note |
|---|---|---|---|
| 12 in on center | 100 | Low to normal exposure | Common estimate only |
| 8 in on center | 150 | Windier edges | More holding points |
| 6 in on center | 200 | High wind zones | Check local requirements |
| Per strip pattern | Varies | Manufacturer layout | Follow printed nail line |
| Conversion | Imperial value | Metric value | Use in calculator |
|---|---|---|---|
| Starter strip length | 3.33 ft | 1.02 m | Piece count estimate |
| Typical overhang | 1/4 to 3/4 in | 6 to 19 mm | Run end allowance |
| Package coverage | 100 ft | 30.5 m | Package rounding |
| 3-tab bundle yield | 78 ft | 23.8 m | Cut-tab mode |
💡Starter Layout Tips
When the roof goes on, you’ll probably never give starter shingles another thought. Starter shingles go beneath the first row, under the cover of the roof itself. They are hidden from street view, but they does the thankless job of locking down the roof’s weakest spot. This is why people mess them up. You could have the hottest looking asphalt shingles in the marketplace, but if your starter strip is missing or loose or too short, wind gets beneath there and peels your investment up like a sticker. Wind doesn’t care about good looks; it cares about being kept out. Staying put.
The calculator above does all the math for you. It runs the conversions. It takes into account waste factors. You won’t need to guess. But knowing what those numbers represent is where difference lies: between a roof that stays dry, and a roof that leaks.
How to Measure Your Roof Edges
What do I mean? The first thing is to think about edges. Most folks measures the bottom horizontal lines (the eaves) and stop there. If you’ve got a gable roof, though, sloping sides (the rakes) require starting materials as well. And that is particularly true for anyone who lives where wind can get strong. The tool will allow toggling to eaves-only, rake-only, or all. In really windy areas, you may even double-up the rake-starters. It uses a little more material, but it provide another layer of protection against uplift. The page’s table spells this out. It lays down what various roof forms requires at the edges. What you don’t want to ignore: Those rakes, even though harder to measure, are the first to go in a storm.
Next, you choose the product. This is where it starts getting mathematical. There are pre-cut starter bundles available. There are rolls ranging from 30 feet long to 100, depending on who make them. And there’s always the option of using regular three-tab shingles and cutting off the tabs if you’re making a repair or just need some roofing done fast. That’s a popular DIY trick, but it will drastically affect your coverage math. By removing the tabs, you waste most of the shingle, so each one cover less area. When you toggle into cut tab mode, the calculator automatically accounts for this. This is handy, since it prevents you from ordering less than needed simply because you miscounted how much actual shingle length you’d had left after cutting out the tabs. It is the silent budget killer.
This one is called waste. Yeah you measured perfectly, but you cut some pieces too short. You trimmed off the end to make them fit in the corner. And then you messed up on first pass so you should of did it again. A ten percent waste factor is not being pessimistic. It’s being realistic. If you’ve got a complicated roof (lots of dormers, lots of hips, lots of valleys), bump it up to fifteen or twenty percent. This number can be moved in the calculator based off how confident you feel. Are you a professional? Slide it down. Are you learning on the job? Slide it up. Better to have left over starter strips sitting in garage than run out in middle of a rain storm.
The other part of the equation are fasteners. They’ll come in handy for securing these things. Not too tight, as that will crush the sealant strip, but not too loose either or they won’t stay put! Nail them down good. The calculator tells you how many nails to expect based on the spacing. It is handy if you want an idea of what kind of hardware to purchase. Twelve inches apart is usually ok in calm zones. Use six or eight inches if it gets real windy. Darn, it’s a time vs than it is a durability issue. More nails = more effort = less peace-of-mind during those wind-gust moments. Be sure to check your local building codes. Often they specifies a minimum nail spacing appropriate for your particular climate zone.
And that’s where it gets tricky, in figuring out exactly what you’re measuring. It ain’t square footage you’re covering up. It’s linear feet around the perimeter of house. It’s a perimeter game. Each run along an eave counts. Each rake counts. Count the return(s) on the porch(es). And don’t forget to include waste.
The calculator does all the work for you, but someone still needs to watch the roof. Get the edges secured first. Let the rest of the roof fall into place. That’s how entire system works. Quite literally, the foundation.
