Accurate weights matter: Forgetting a few pounds of stainless steel will cost you in the long run. You might find yourself missing something like three pounds of tube because nobody accounted for wall thickness tolerance. Knowing where you are headed before you cut metal means you stay within budget and save time. And more importantly, your load handling equipment has enough capacity. Accurate weights help make for a nice smooth lift. Avoiding failed load checks and unnecessary shipping costs.

It is stainless steel. If you ask most folks, they’ll tell you all grades of stainless steel weigh the same. That is a dangerous assumption. On paper, the difference in densities among common grades may seem small. But with each pile of bar stock weighing fifty pounds, those little differences realy begin to matter. Generally speaking, austenitic grades such as 304 and 316 has a density of approximately 8,000 kilograms per cubic meter. Meanwhile, ferritic grades such as 430 will be slightly lower (closer to 7,700). When it comes time to hoist a multi-ton plate assembly, that three percent difference matter. Know your material’s grade family; don’t undercalculate your lift. The density of your selected grade preset feeds into everything else this calculator spits out so get it right.

How to Calculate Stainless Steel Weight Accurately

And then there are the variables that come from shape geometry. Sheet steel is easy: it’s just square inches. But what happens when you have a tube? Or do you have an angle section? You start considering your cross-sectional area. If you’re working with tubing, what good does it do you to know the outer diameter unless you also know the wall thickness? A thin-walled two-inch tube will weigh much less then a heavy-gauge two-inch tube, despite both having the same outer appearance. Likewise, angle iron can play tricks on you; the different combinations of leg dimensions and corner radius changes the weight distribution.

This tool makes all of this possible. It breaks these tricky shapes down into their most basic geometric parts so you can see exactly where metal lies within the cross-section. This shows you how much empty air you are lifting. Most estimates get screwed up here. The holes and voids need to be accounted for if material is going to be nested onto another part. You can remove material (reducing the weight of that single part), but unless you cut out the skeleton that’s left behind, you haven’t removed the weight from the lift itself. That is an important difference, but it is often overlooked in shop. You may quote out the net weight so you don’t lose money, but you also need to figure gross weight for shipping and safety reasons. It all hinges on whether or not the material will be moved around inside your facility.

The last layer of realism involves factors like quantity and waste. In the real world projects rarely consist of just one perfectly sized piece. With a quick addition of a quantity multiplier, you can scale it right up. Waste allows for edge trimming, kerf from your saws and loss due to thermal cutting. Five percent is a safe standard for most fabrication jobs, but if there are complex shapes or lots of nesting, then ten percent or even higher might be needed. Not allowing for these will cause production to stop as someone goes out and orders additional stock.

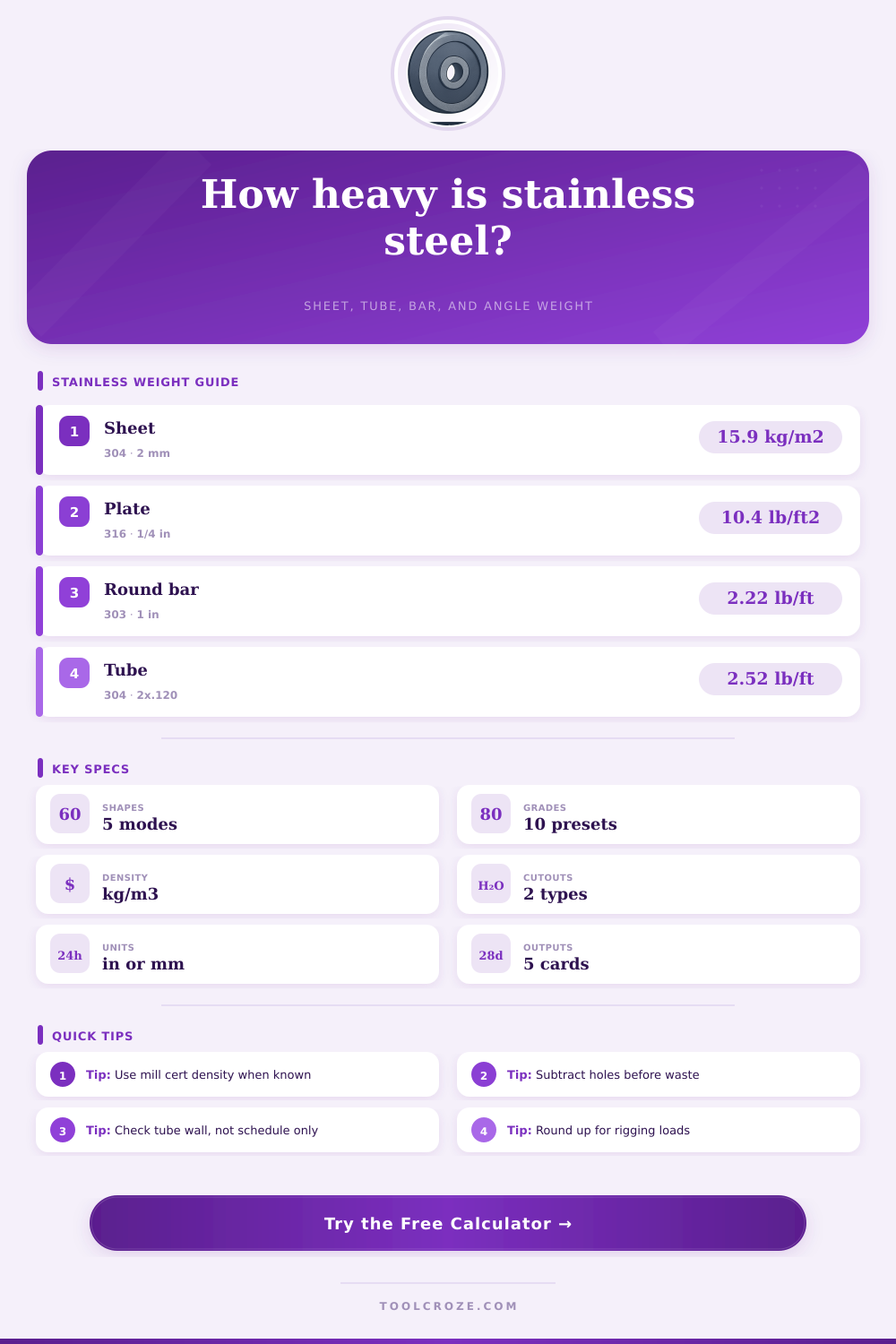

You’ll also notice some quick reference data included with the calculator to check your work. Anywhere your calculated weight per foot is outside of what’s expected based off standard industry charts, you know you either selected the wrong grade or entered incorrect dimensions. It is a little thing that makes all the difference, because a mistake on the screen is much cheaper than discovering it once holes are already drilled.

Uncertainty becomes confidence when you plan ahead. That means what you hold in your hands in the real world matches exactly what you saw on paper. Use the right material for the right weight and the right job.
