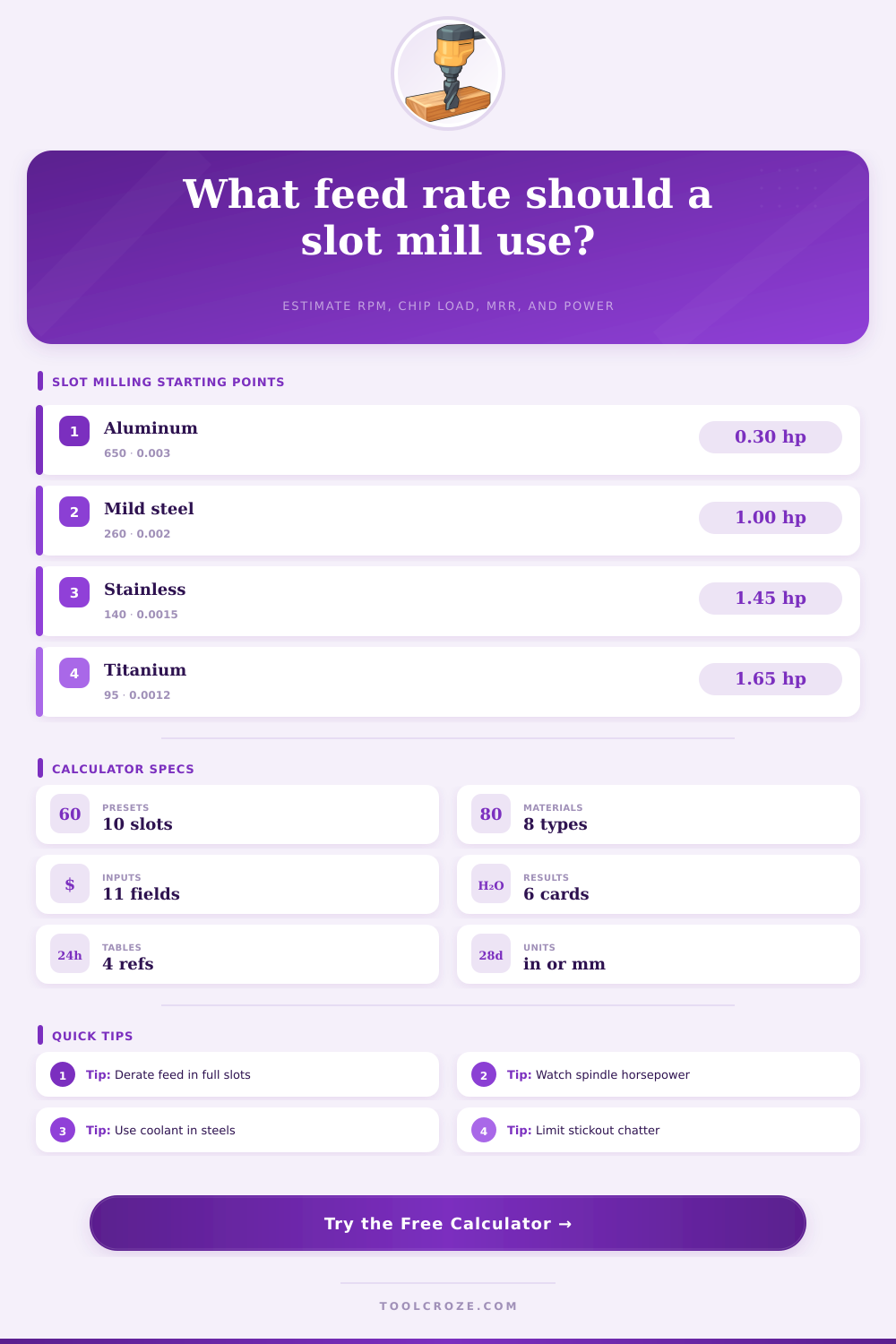

Slot Mill Feed Calculator
Estimate spindle speed, feed rate, chip load, cutting time, material removal, and horsepower margin for end mills cutting slots.
⚙Named slot milling presets
📏Slot milling inputs
Calculated slot milling setup
🔬Current material snapshot
📊Slot milling material reference
| Material | Starting SFM | Nominal chip load | Slot feed note |
|---|---|---|---|
| 6061 aluminum | 500 to 900 | 0.0025 to 0.0060 in/tooth | High flute clearance and mist coolant help prevent welding. |
| 7075 aluminum | 450 to 750 | 0.0020 to 0.0050 in/tooth | Usually cuts cleaner than 6061 but still needs chip evacuation. |
| 360 brass | 350 to 700 | 0.0015 to 0.0040 in/tooth | Use sharp tools and avoid rubbing on very light chip loads. |
| 1018 mild steel | 180 to 320 | 0.0012 to 0.0030 in/tooth | Full slots often need lower chip load than side milling. |
| 304 stainless steel | 90 to 180 | 0.0008 to 0.0020 in/tooth | Keep feed positive to avoid work hardening. |
| D2 tool steel annealed | 80 to 150 | 0.0008 to 0.0018 in/tooth | Reduce radial burial or depth if the spindle load spikes. |
| Gray cast iron | 140 to 260 | 0.0010 to 0.0030 in/tooth | Dry cutting is common; protect ways from abrasive dust. |
| Ti-6Al-4V titanium | 60 to 120 | 0.0006 to 0.0015 in/tooth | Use rigid workholding and avoid dwelling in the slot. |
🔧Cutter and slot geometry comparison
| Cutter style | Best slot use | Typical flutes | Feed adjustment |
|---|---|---|---|
| 2-flute carbide | Aluminum full slots | 2 | Good chip space; use full calculated chip load on rigid machines. |
| 3-flute aluminum end mill | Fast aluminum slotting | 3 | Balance high feed with air blast or mist coolant. |
| 4-flute carbide | Steel keyways | 4 | Derate 10% to 25% when radial engagement is above 70%. |
| Roughing end mill | Deep rough slots | 3 to 5 | Can hold feed at lower horsepower due chip breaker edges. |
| Coated carbide | Stainless and tool steel | 4 to 6 | Keep chip load steady and reduce SFM for heat control. |
| Small micro end mill | Slots below 1/8 in | 2 to 3 | Limit runout; reduce chip load before reducing RPM. |
📝Engagement and derating guide
| Radial engagement | Slot condition | Suggested chip factor | What to watch |
|---|---|---|---|
| 90% to 100% D | Full slot | 0.70 to 0.85 | Chip packing, chatter, and horsepower rise quickly. |
| 60% to 89% D | Heavy slot | 0.80 to 0.95 | Use coolant or air blast to clear the channel. |
| 30% to 59% D | Moderate step-over | 0.95 to 1.10 | Chip thinning may allow slightly higher feed. |
| 10% to 29% D | Peel or trochoidal | 1.05 to 1.35 | Machine acceleration can limit practical feed. |
| Below 10% D | Very light wall pass | 0.80 to 1.20 | Too little chip load can rub instead of cut. |
📐Common slot milling setups
| Setup | Cutter and material | Starting feed target | Practical note |
|---|---|---|---|
| Aluminum fixture slot | 1/2 in, 3-flute, 6061 | 60 to 110 IPM | Use air blast and keep chips from recutting in the bottom. |
| Steel keyseat | 3/8 in, 4-flute, 1018 | 8 to 20 IPM | Multiple passes can be faster than one overloaded pass. |
| Stainless groove | 1/4 in, 4-flute, 304 | 3 to 10 IPM | A positive chip beats a slow rubbing pass. |
| Tool steel channel | 3/8 in, coated carbide, D2 | 3 to 9 IPM | Check heat and sound before increasing depth. |
| Titanium relief slot | 1/4 in, 4-flute, Ti-6Al-4V | 2 to 7 IPM | Keep engagement controlled and avoid dwell marks. |
| Plastic plate slot | 1/4 in, 2-flute, Delrin | 40 to 120 IPM | Sharp tools and chip clearance prevent melting. |
💡Slot milling calculation tips
On paper, slot milling sounds easy, drop the end mill into a straight channel, move across the material until the cut is made and repeat. But when you do it, the cutter gets buried on both sides simultanous with no place for the heat to go. The chips gets packed into the flutes and you’re not even sure what happened because you didn’t hear it happen until spindle bogged down. Getting the speed and feed right determines if you finish quickly or end up with a broken tool to replace halfway through the day.
Slot milling is a combination of four factors: power availability, radial engagement, chip thickness and surface speed. The latter three has some connection with each other and they all interact with first one. How fast do you want the cutting edge to rub against the work piece? Too slow and you risk work hardening the metal, too fast and you burn your edge. That’s called surface speed.
How to Mill Slots Safely and Easily
Chip load determines exactly how much each tooth bite off in terms of material. If you go too high, you deflect the cutter. If you go too low, you are just rubbing rather than cutting which creates even more heat. But that’s where things get interesting. A 6061 aluminum half-inch cutter can cut.0035 inch per tooth on a light side pass, but using that same cutter in a full slot may require 15 to 20 percent less chip load to stay within the spindle’s horsepower limits. The calculator will adjust once you enter the type of operation, radial engagement, and your choice to derate for machine rigidity or stickout. That’s not to say you’re off the hook for understanding why numbers change.
The material is what matters most. Heat conduction out of the cutting zone combined with lack of work-hardening enables high speeds and heavy chip loads on aluminum. Drop into a 304 stainless and sweet spot narrows dramatically. What might have run at 8000 rpm in aluminum drop down to 1800 rpm. A chip load that was three thousandths drops off to just about one. Titanium narrows the window even more due to very low thermal conductivity. It keeps the heat right at the edge. You’ll notice the immediate difference in color of the chips, and you can hear it too.
Length and depth are factors as well. Six-inch-long shallow slots with aggressive feeds will be done in a flash. Doubling the axial depth doubles the material removal rate. This might seem conservative on paper but it pushes your spindle into overload. Add to this the need for tool to remove chips the full distance of the slot. Good coolant is critical here; otherwise, a long slot in steel becomes a recutting nightmare, destroying edge life and surface finish.
There is also a caveat with cutter selection. In aluminum slots, two-flutes are great for removing chips; however, many steels requires more rigid cutters than that. Four- and five-flute cutters damp vibration and spread the load out nicely but don’t leave much room for a chip in a fully packed slot. Coatings change things. You can run hot without welding as long as your chip load is enough to ensure the coating doesn’t rub off.
The last gate keeper is power margin. Yes, the feed seems to compute correctly for that rpm, but the spindle may not deliver the torque. By showing you the margin in the calculator, you get to choose: do I need to just go slower? Do I need to widen the slot and let the cutter make a trochoidal path? Or do I need to back off and take two lighter cuts? Fighting one monster cut that trips the overload every time might of been the dumb thing to do after all.
This doesn’t take the place of actualy hearing it cut. It will get you in the ballpark quick with the calculator. From there it’s down to your eyes on the chips and your ears. You’ll start getting the feel of the machine and finally the balance of control and aggression. Slot milling won’t be as much of a crap shoot. Instead, it becomes one of the most predictable things in the shop. This is just what you need when everything else about the job isn’t.
