So you pick up a run-of-the-mill piece of four by eight sheet mild steel and are suddenely reminded that it’s much heavier then you remember. It’s happened to most of us at least once. That’s when a disconnect occur between the number on the nominal gauge scale and actual weight it represents. You draw something up on the computer and think it’ll be fine… until it droop like a wet noodle as soon as you attach it. Or you attempt to lift a pile of panels up the ladder before factoring in the combined weight.

Weight isn’t everything in making things; sometimes it is the only thing that matter. The weight dictate whether you need a forklift or just a pair of strong hands. If you fail to account for this, you will not only waste precious time but also risk safety.

How to Calculate Metal Sheet Weight Safely

It will do math for you; all you have to do is plug your dimensions into calculator above, sparing you any need to guess at any conversions or factors. But the real value is knowing what those numbers mean. Gauge is not a universal constant. Seventeen isn’t going to mean the same thing on copper as it would on aluminum, or on steel. You have to take into account that materials vary in densities, that’s the piece most folks fail to account for. For example, stainless steel is noticeabley heavier (more dense) than mild steel, since stainless include chromium and nickel.

A slight difference in thickness get multiplied by the area of the entire sheet. So if you’re converting from say carbon steel to thirty-four stainless for a food service panel, don’t be surprised if weight increases despite the use of exact same gauge.

Cutouts make all the difference. You can easily ballpark a raw sheet. But how about a vented door full of hole or a perforated machine guard? Use the tool to subtract out the cutout area before adding in the weight of the coating. Why does it matter which way round? Because you don’t paint air. First subtract out the voids so your net weight of just metal is realistic. Now add back on the finish.

Hot-dip galvanizing and powder coating adds mass. On an individual square foot, that additional mass seem insignificant, but it adds up fast over a big enclosure. Not accounting for the coating allowance means you underestimate what’s needed for rigging. Small detail, but it make a difference if you’re trying to lift something above your head.

Also plan on handling allowances. You can set a safety margin in the calculator. That’s for things like straps, dunnage and the fact that stack don’t lay flat. Add 10 percent to your total stack weight to be safe. This is important when you are adding a stack to a forklift or hoist. This way, you’ll have plenty of capacity on your hoist or forklift for real world instead of theoretical minimum.

There’s no cost (except peace of mind) if you overestimate. But underestimating could of do permanent damage to something (or someone).

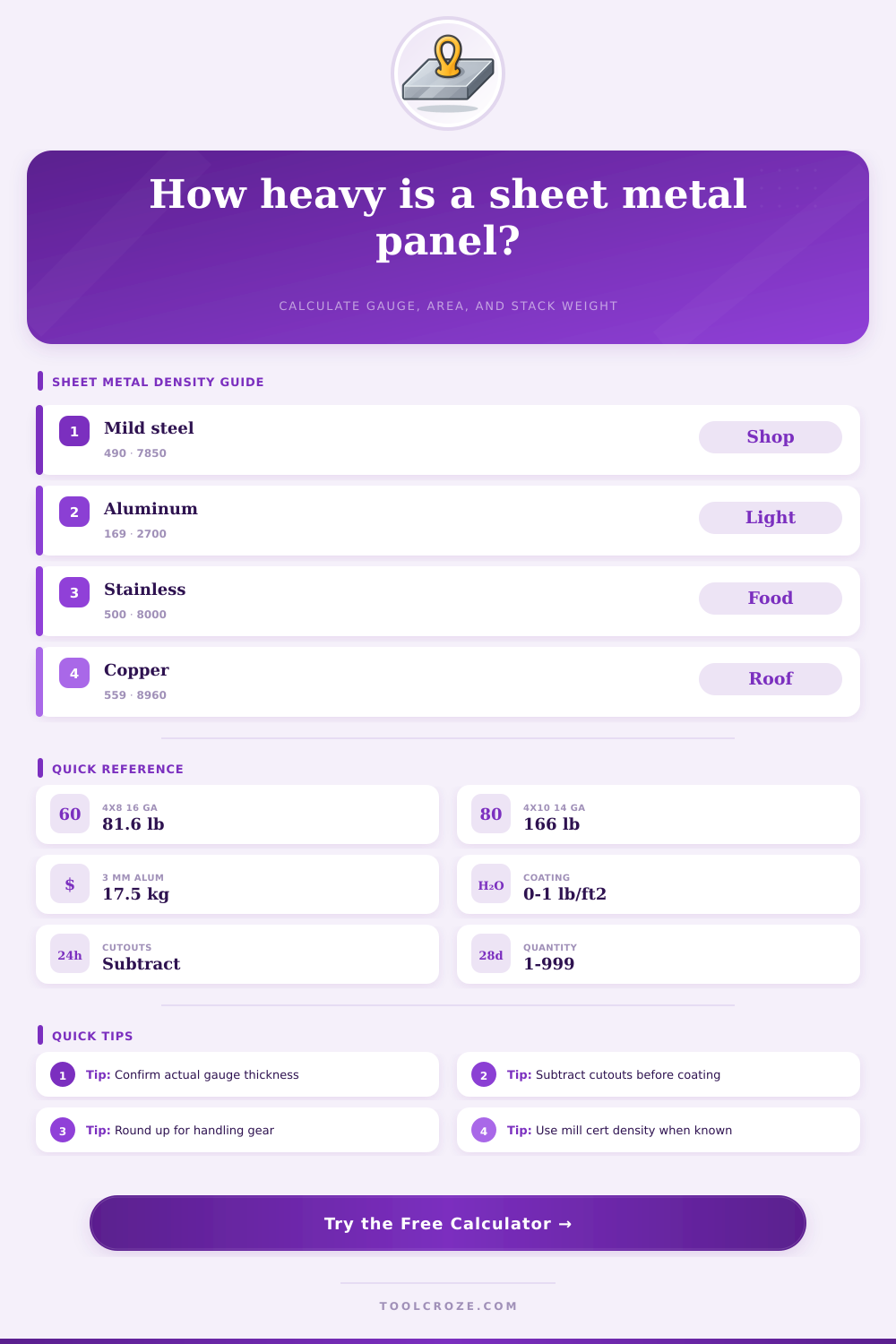

The page also includes reference tables to density guidelines for popular materials. These provide an at-a-glance comparison of the expected weight of a given metal. For example, aluminum is lightweight for use in aerospace or the marine industry, while copper are heavy enough for roofing and flashing jobs. Having a starting point for density allows you to catch your mistakes early. Does the weight you’re getting seem too low for the thickness you used? Check your density again to see if it make sense.

There is some ballpark weights for sheets that seasoned shop rats have in their heads. For example, an eighty-pound piece is a four by eight steel sheet cut from 16 gauge steel. Why? Because that’s about as heavy as one guy can comfortabley pick up. Beyond that weight, you’re gonna need mechanical aid. Knowing those limits allows you to plan your work flow ahead of time rather than having to scramble at the last minute for tools or manpower.

Remember, the gauge is a nominal value so always check actual thickness versus nominal gauge where possible. Some material families may have tighter or looser tolerances among manufacturers. Check the print if specific values are called out; go by them different than the pre-set gauge. Precision pays off in fit and function.

Your judgment will drive it; the calculator provides the numbers. Begin with good input data. Recognize the differences between densities. Add some safety to your build-in. When you reach down for that sheet, you’ll find that knowing what it realy is will make all the difference.
