Roof Pitch Height Calculator

At some point during each of your roof framing projects, the abstractions of math turn into cold hard cash. Here’s how it plays out: You’re standing on a ladder holding a rafter square. You look up at a ridge board that must be precisely the correct height. Cut it too short or long by just an inch and the rafters won’t align. Your entire geometry turns to puzzle pieces that need to be cut and recut, expensive wood. The key? Figuring out the height of that ridge before you pick up your first board. This is the difference between a headache and a neat build.

How do you translate a simple ratio into something vertical? The basic idea is simple enough, but it always confuses novices. Pitch isn’t just a numeric value; it’s a ratio: the relationship between vertical rise and horizontal distance. When I say six on twelve, that means for every twelve inches of horizontal distance, there are six inches of vertical rise. That horizontal distance (the “run”) is typically half the overall width of your structure if you have a traditional gable roof. Knowing this makes all the difference, as it tells you how high the peak should be. If you confuse the run and the rafter length, your ridge won’t be tall enough. Your slopes will never touch at the top. Once you know why the run matters, you can catch these mistakes before they turn into structural problems.

How to Calculate Roof Height

The calculator, above, will do all the math for you when you input the span and the pitch you want. But knowing why the run matters will help you spot the mistake before it becomes a problem.

So now we have the rise and we must take into account the real world. That includes thickness of actual board on which our roof rests: a two-by-twelve or two-by-ten. This adds a dimension to the ridge board; the ridge board top is not where the rafters theoretically intersect one another. Most advanced calculators will assume some sort of ridge material. It feels like no big deal, but if you don’t allow for it, then your roof ends up being two or three inches shorter than you thought it would be. And that’s important if you’re shooting for a particular ceiling height or trying to adhere to zoning setbacks. A little tweak, but it alters the overall envelope of your house.

Where the geometry really comes into play is estimating materials. To know how much material you’ll use requires a simple multiplication factor called area factor. It multiplies the actual amount of roof by the building’s flat footprint. On a low slope there is hardly any increase in surface area, so your order size remains about the same as the floor plan would indicate. On a steep pitch the sides of the triangle greatly increase its square footage. If you’re designing a shed that’s twenty-four feet wide but has a steep ten-on-twelve pitch, then the actual surface area will be much larger than the number from the floor plan. You can’t simply purchase roofing by looking at the floor plan. The slanting area matters. This factor takes into account the Pythagorean theorem in practical terms, and makes sure you don’t end up one bundle short on the day of installation.

The next level up on the complication scale are overhangs, which most simple charts don’t account for. The majority of houses have eaves, those parts that stick out beyond the exterior walls that shield the siding from rainfall. That means that the rafters also gets longer, and the overall roof gets more surface area. If you feed in your overhangs then the tool will adjust accordingly, displaying the actual length of the rafters, including the tail that hangs out over the gutter. Remember: The rafter doesn’t stop where the wall plate ends; rather it keeps going. If you don’t consider this at first, you won’t realize you have short pieces of lumber until partway through the installation.

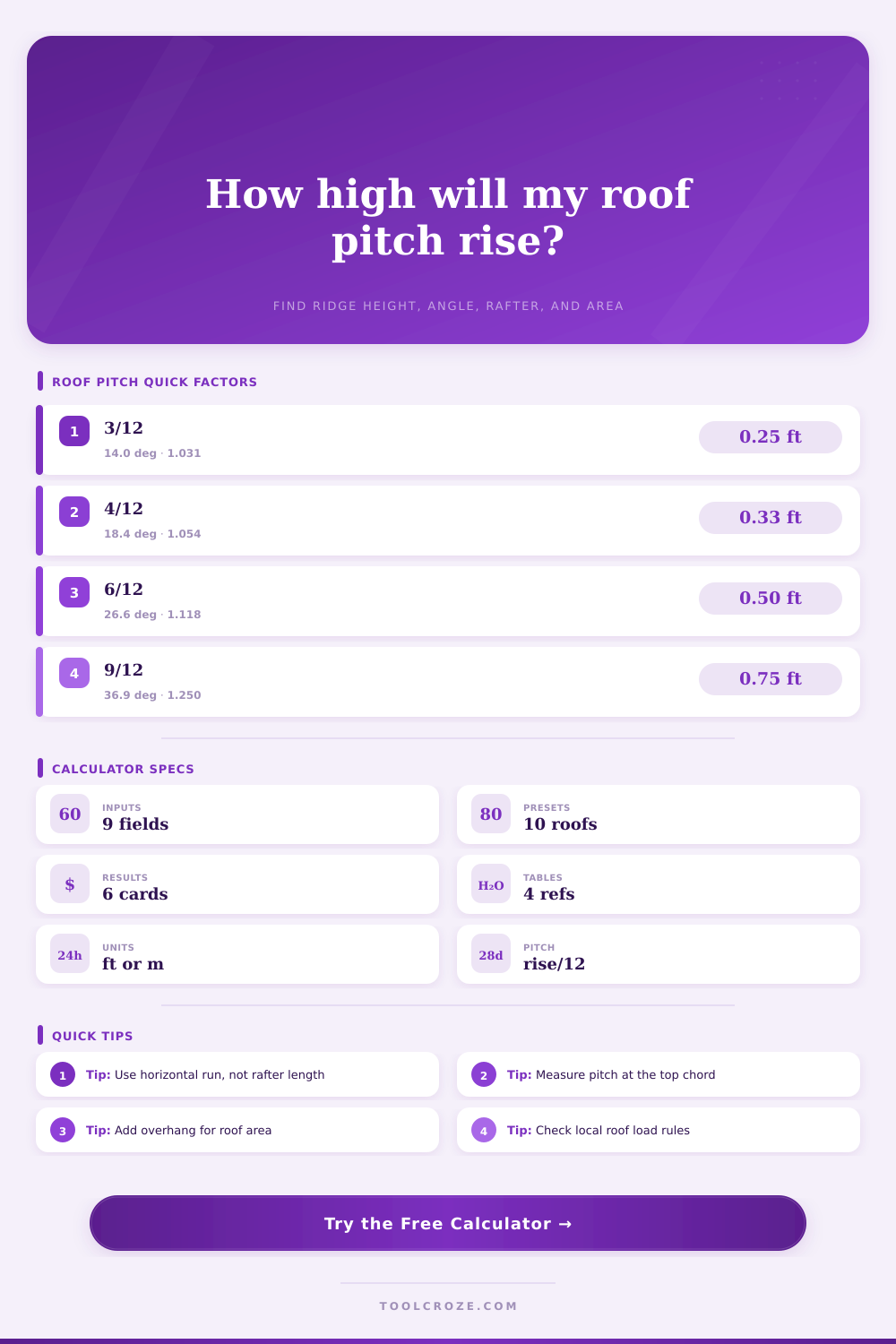

But you’re limited by local climate as well. If it tends to be very snowy where you live, a steeper roof will help shed snow better, but if too much snow piles up, it could make the roof sag. That means longer rafter lengths (and more complicated bracing), which adds cost. But there’s a tradeoff: a gentler slope is cheaper & simpler; a steeper one is more material-heavy & expensive in labor. What do you want aesthetically? How much can you afford? The page has a reference table that illustrates how the tradeoff changes as the angle shifts.

To conclude, roof framing is all about accuracy. Everything from the span to the pitch to the rise affects the skeleton of this building. The inputs that you select determines the outcome. You can put yourself back into the driver’s seat by learning how rise, pitch and span relate to each other, instead of feeling like the geometry controls the game. You should of measured twice, calculate once, build confidently.
