Roof Pitch Formula Calculator
Convert rise, run, span, angle, and rafter length into X:12 pitch, degrees, slope percent, roof area, eave area, material suitability, and layout checks.
⚙Unit System
🏠Roof Pitch Presets
Start with a real roof geometry, then tune the dimensions for your span, rise, eave, material, and roof shape.
📏Pitch Geometry Inputs
Formula Breakdown
🧮Live Material and Spec Comparison
📐Roof Pitch Formula Reference
| Known values | Formula | Output | Use note |
|---|---|---|---|
| Rise and run | Pitch = rise / run x 12 | X:12 ratio | Most reliable field method |
| Angle | Pitch = tan(angle) x 12 | X:12 ratio | Use a digital angle finder |
| Rafter and run | Rise = sqrt(rafter² - run²) | Rise and angle | Use only a straight rafter line |
| Pitch ratio | Angle = atan(pitch / 12) | Degrees | Converts X:12 to roof angle |
| Run and pitch | Rafter = run x sqrt(1 + (pitch/12)²) | Rafter length | Excludes ridge cuts and tails |

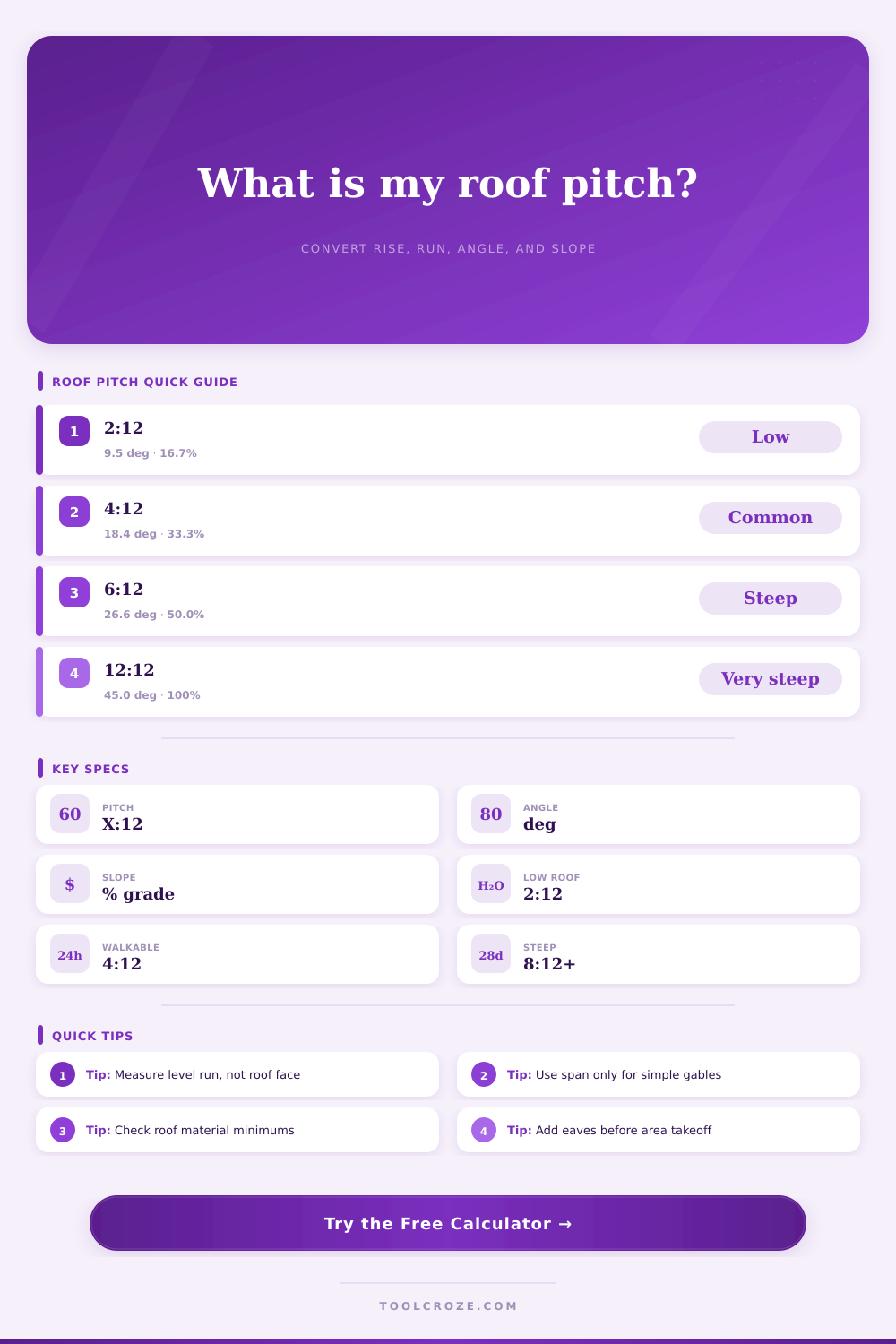

📋Common Pitch Conversion Table
| Pitch | Angle | Slope percent | Typical roof character |
|---|---|---|---|
| 1:12 | 4.8° | 8.3% | Low slope; material-specific detailing required |
| 2:12 | 9.5° | 16.7% | Minimum range for many shingle assemblies |
| 4:12 | 18.4° | 33.3% | Common walkable residential roof |
| 6:12 | 26.6° | 50.0% | Moderate steep roof with good drainage |
| 8:12 | 33.7° | 66.7% | Steep roof; more face area per plan area |
| 12:12 | 45.0° | 100% | Very steep, one foot rise per foot run |
🛠Material Minimum Pitch Grid
| Roof material | Common minimum | Calculator check | Specification note |
|---|---|---|---|
| Membrane roof | 0.25:12+ | Low-slope capable | Drainage still needs positive fall |
| Low-slope metal panel | 1:12+ | Panel system dependent | Seams and fasteners control suitability |
| Asphalt shingles | 2:12+ | Needs selected pitch at or above 2:12 | Low slopes may require special underlayment |
| Standing seam metal | 3:12+ | Needs selected pitch at or above 3:12 | Confirm panel listing and seam height |
| Tile, slate, wood shake | 4:12+ | Needs selected pitch at or above 4:12 | Fastening, battens, and climate may raise minimum |
🗂Preset Geometry Reference
| Preset | Pitch target | Typical use | Measurement basis |
|---|---|---|---|
| Low Porch 2:12 | Low roof | Covered porch or canopy | Rise over run plus eave |
| Ranch 4:12 | Moderate | Single-story gable roof | Rise over half span |
| Craftsman 6:12 | Moderate steep | Front gable with wider eaves | Rise over run |
| Snow Country 10:12 | Steep | Cold-climate shedding roof | Rise over half span |
| Gambrel Upper 14:12 | Very steep | Upper gambrel face | Known angle and run |
💡Roof Pitch Calculation Tips
On a dusty job site it usually starts with a tape measure and a level. It also involves a lot of squinting. Because you’re looking at that old house and wondering: Is that thing four in twelve? Or maybe it is more like six in twelve. That’s an entirely different pitch and will change the whole order of material.
It’s basic geometry, sure, but getting it wrong costs money, because cutting rafters is expensive and ordering too many shingles eats into your profit. Most folks view roof pitch simply as a number on a blueprint. In fact, it is a physical limitation. It determines everything from how fast water drains off to what sort of structure can support its weight, and even whether certain materials can stay dry without some underlayment trickery.
Why Roof Pitch Is Important
Enter your dimensions and roof size into the calculator above. It does all of the math for you, so you don’t have to convert feet to inches or guess at conversion factors and coefficients. The key here though is knowing what they refer to in terms of three dimensional space. Run is always measured as the horizontal distance between exterior wall plates and the center ridge line (not the sloping surface over the shingles).
Why? If you measure it along its face, you has the length of each rafter, which means you would need different math to calculate the rise. Confuse one for the other and you’ll get the pitch ratio wrong, and the material takeoff wrong by a very dangerous amount.
On sloped roofs, the material matters more than looks. Slate and tile require a steep enough pitch so that gravity sheds water quickly. Asphalt shingles work this way too; if they do not have at least a two-in-twelve rise, water will back up underneath their tabs. However, standing seam metal’s sealed seams allow it to handle a three-in-twelve pitch.
The pitch calculator checks your estimated pitch against those minimums and flags any concerns before you’ve ordered decking or lumber. It also includes your area when calculating slope, such as overhangs from eaves, which is a detail many estimator overlook when they estimate square footage.
The real estate on the roof is also affected by steepness. A 12 in twelve pitch doubles the surface area compared to a flat footprint because the rafter length increases much more then the run. So more sheathing sheets are needed; more chimney/vent flashing is needed; and lots more safety equipment is needed when installing it. That’s why the adjusted roof area clearly shows up in the calculator, plus your chosen allowance for complex cuts and waste.
Adding more complexity is hip roofs, where hip rafters cut through corner squares so there is more waste than just simple gable ends. Beyond meeting minimum building codes, climate also influences pitch decisions in subtle yet powerful ways. Steeper roofs in snowy climates self-clear snow loads. This eases structural loads on foundations and walls during times of maximum strain, such as when it is realy, realy snowing in winter.
By contrast, flat-roofed buildings in windy locales must be carefully detailed to resist uplift at their edges. Knowing these trade-offs will help you decide if a steep roof is worth the extra labor. It will also show if stronger, lower-pitch alternatives makes more sense for your site conditions.
No matter what the calculator is like, most people gets it wrong with their measurement. Make sure you have a straight edge that runs along the ridge. Use that as a reference for the highest point compared to eave line. Also, make sure your tape measure is vertical (true). Digital angle finders will work but need to be checked carefully against a known reference or they can drift. Small measurement changes add up fast when dealing with long spans so double check all dimensions before going ahead with a plan. You should of checked the measurements twice.
At the end of the day, there’s more to roof pitch than math. You also need to consider looks, physics, and how materials work. To be effective, your roof needs to balance these factors. This ensures that materials perform the way they are designed, the structure stays intact under different loads, and water flows off the surface as intended. You don’t want to learn the hard (and expensive) way; get this part right at the start and avoid headaches later.
Turn all those variables into something real. Let them point you in one direction so you can concentrate on doing good work, instead of scrambling to fix problems caused by not thinking things through. Measure correctly, and the math will speak for itself.
