A rafter and a ceiling joist may look alike, but these two structural component differ greatly, and mistaking one for the other will result in a roof that collapses under its own weight or fails an inspection. Knowing how to interpret span tables can mean the difference between a strong roof that holds snow and a sagging one that doesn’t hold much besides shingles.
Armed with a stack of seemingly sturdy dimensional lumber and a tape measure, you’re feeling pretty confident as you begin framing a roof. You cut your rafters to size, lay them out along ridge and nail them into place. From the ground, it appears just fine. Unfortunately, structural framing is where looks can be very misleadingly.
How to Read Roof Span Tables
To break it down simply: the chart distinguishes between rafters (which angle upward toward the ridge) and ceiling joist (which are horizontal; they run between walls). On ceilings, joists supports any load on the attic floor (so if you’re going to store things up there, you’ll want strong joists), while also resisting outward pull of the rafters. Rafters themselves carry both their own weight (the weight of the roof itself) as well as live loads such as wind and snow.

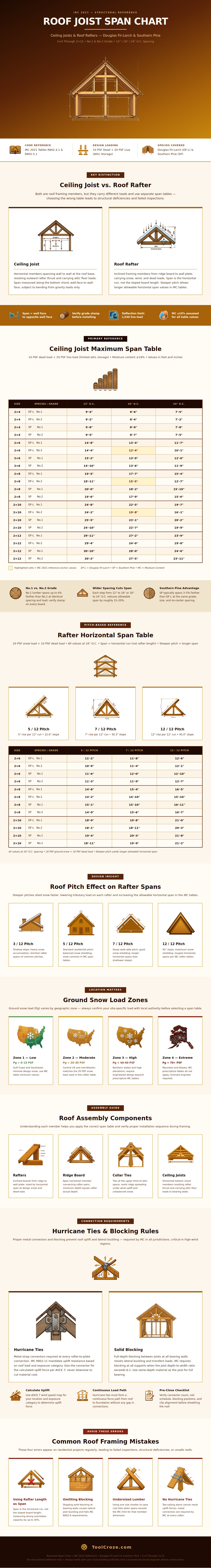

The infographic cites the International Residential Code’s 2021 tables for 10 PSF dead load and 20 PSF live load for attic storage. This is important to keep in mind, because a lot of DIYers assume one size will do, and that a standard span applies to all. But that isn’t so. If you use a rafter table for a ceiling joist, you might underbuild. Use a joist table to design your rafters and you could be cutting corners that the code expressly prohibits… Meaning you may be overbuilding, or you might be doing something wronger.
The grade of the lumber also makes a difference. A number one grade of wood will span slightly further than a number two grade, often by a few inches per span. That seems like a small difference but in building it means the difference between having an additional support wall…or needing to size up the lumber altogether. For these tables, southern pine is better than douglas fir-larch because it generally spans just a little bit further using the same dimensions. Before you cut, make sure to check the stamp on your lumber. All 2×10’s aren’t made the same! The grade and species matter.
There’s also the matter of roof pitch. As shown in the chart, steeper slopes allows for longer horizontal spans. For example, you can span further with a rafter on a 45-degree slope (a 12/12 pitch) then one on a shallow pitch (say, 5/12). Why? Physics makes steeper slopes shed snow better, so they have less weight on each rafter (tributary load). On a low slope, snow piles up and sits there, causing it to be a heavy, static load. But in a steep-slope area, gravity minimizes that load. That’s why the IRC tables factor pitch into their span allowances. If you don’t account for this, you’ll either over-engineer your framing in a steep climate, or dangerously under-do it in a flat one.
In addition to what kind of wood you use, where it’s placed matter. How much snow your area gets varies widely throughout the country. Depending on how much snow there is on the ground, the code may require an engineered design instead of using prescriptive tables in the code. For areas of moderate snow loads, staying within those tables will give you peace of mind without costing too much extra.
A common mistake I see people making is they measure the length of their rafter which includes the slope, rather than its horizontal run. The span is the distance from wall face to wall face, not the length of the actual board. Getting this wrong by up to a third can result in having a span calculated incorrectly. That is a huge safety margin to waste.
The other mistake is connections. Code requires hurricane ties because these metal connectors create a continuous load path from the roof down to the foundation resisting uplift forces exerted by wind. Toe-nailing rafters to plates doesn’t holds your roof in place during a storm. You need these metal connectors to create a continuous load path from your roof down to your foundation. Side twisting can occur, particularly as your joist depth-to-width ratio increases without solid blocking at bearing walls. It’s easy to overlook these details when your eye is on the big picture but it’s what keeps the roof connected to the rest of the house.
Roof framing is physics and it’s about the numbers. Engineering data can’t be replaced with intuition. To make a chart work, you need correct measurements, accurate moisture content and proper installation. The charts are safe baselines. Confirm your lumber grade, calculate the span from the horizontal run, and install the right connectors. It will save you a lot of money, whether by avoiding a costly mistake or gaining decades of roof life.
Guesswork should of not last on your house.
