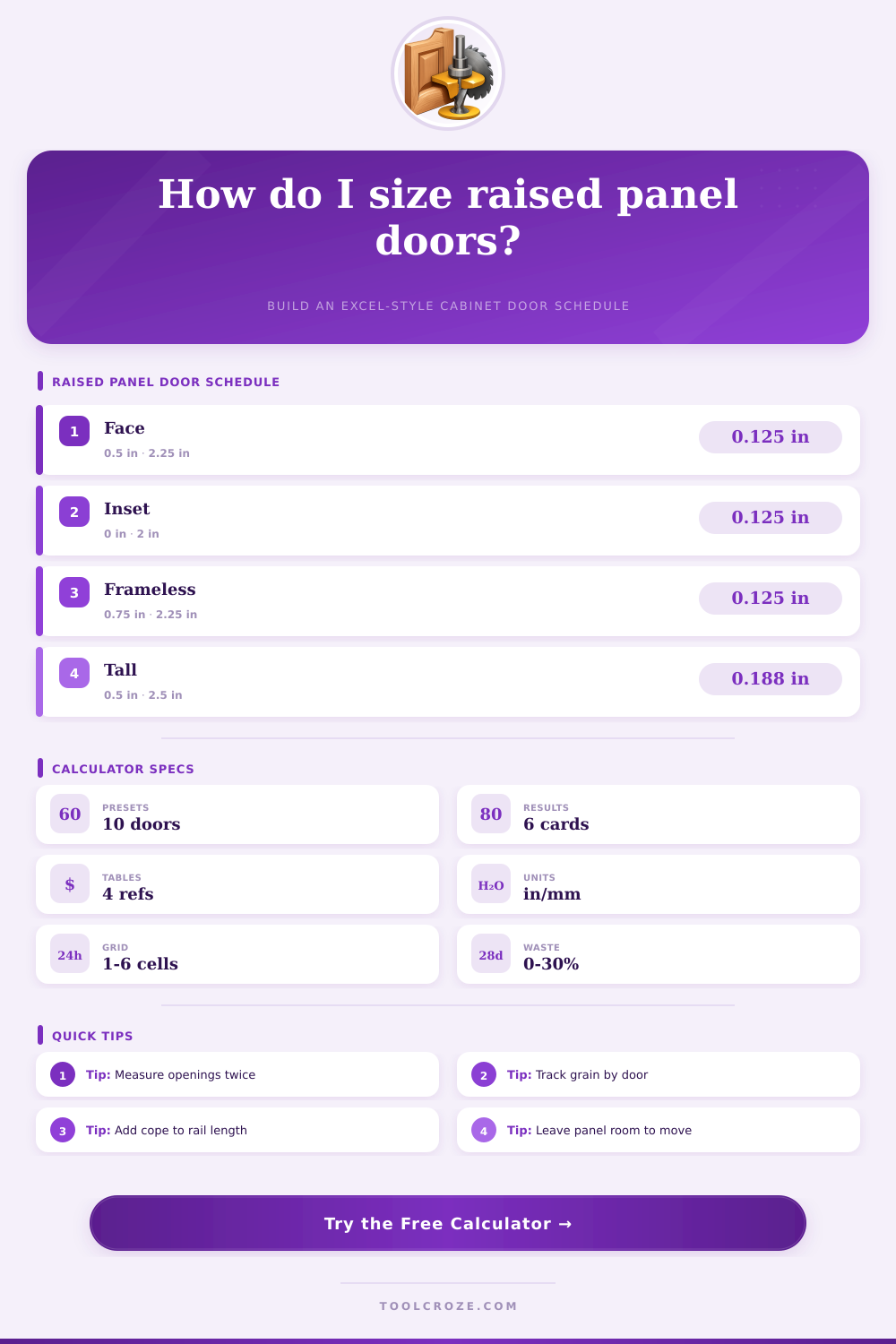

Raised Panel Door Calculator Excel
Build a spreadsheet-style raised panel cabinet door schedule from opening size, overlay, stile and rail widths, panel reveal, cope allowance, rows, columns, count, and waste.
Choose a cabinet scenario, then adjust the opening, overlay, frame profile, panel reveal, grid layout, and door list count for your shop sheet.
Spreadsheet breakdown
Finished leaf area before rows and copies.
Stiles and rails for the full door list.
Raised panel blanks before waste factor.
Stable hardwood frame schedule.
| Part | Qty | Length | Width | Thickness | Schedule note |
|---|---|---|---|---|---|
| Stile | 0 | 0 | 0 | 0 | Calculate to fill |
| Preset | Opening pattern | Overlay or gap | Frame profile | Best use |
|---|---|---|---|---|
| Face frame base pair | 30 x 34.5 in, 2 columns | 1/2 in overlay | 2-1/4 in stile and rail | Standard sink or base cabinet doors |
| Wall cabinet single | 15 x 30 in, 1 column | 1/2 in overlay | 2 in rail, 2-1/4 in stile | Upper cabinet single door schedule |
| Frameless overlay pair | 31.5 x 30 in, 2 columns | 3/4 in overlay | 2-1/4 in shaker-compatible frame | Euro box pair with tight center reveal |
| Inset drawer bank front | 18 x 9 in, 3 rows | 1/8 in inset gap | 1-3/4 in rails, 2 in stiles | Inset raised panel drawer fronts |
| Tall pantry raised panel | 24 x 72 in, 1 column | 1/2 in overlay | 2-1/2 in frame members | Long door where rail width matters |
| Metric wardrobe panel | 600 x 1800 mm | 2 mm inset gap | 60 mm frame members | Metric cabinet or wardrobe schedule |
| Door element | Calculator formula | Typical allowance | Shop note |
|---|---|---|---|
| Finished door width | (opening + side overlays x 2 - center gaps) / columns | Overlay or negative inset gap | Check hinge reveal before cutting pairs |
| Finished door height | (opening + top overlays x 2 - row gaps) / rows | Top and bottom overlay | Rows share the total reveal stack |
| Stile length | Finished door height | No cope added | Stiles run full door height |
| Rail cut length | Door width - 2 stiles + 2 cope allowances | 1/4 to 1/2 in per end | Match your cope and stick cutter set |
| Panel blank | Door opening behind frame - reveal allowance | 1/8 to 3/16 in each axis | Leave seasonal movement room |
| Material | Typical use | Waste range | Raised panel note |
|---|---|---|---|
| Hard maple | Paint or clear hard-wearing frame | 10 to 15 percent | Mill carefully to reduce burn and tearout |
| Red oak | Traditional raised panel kitchens | 10 to 14 percent | Open grain usually needs consistent orientation |
| Cherry | Clear-finished furniture-style doors | 12 to 18 percent | Color match panels and rails before assembly |
| Poplar | Paint grade frame stock | 10 to 15 percent | Sort for straight stiles and clean rail ends |
| MDF panel | Paint grade raised center panel | 8 to 12 percent | Seal edges and confirm cutter rating |
| Walnut | Premium clear-finished doors | 15 to 22 percent | Allow more waste for grain matching |
| Column | What to enter | Formula idea | Why it matters |
|---|---|---|---|
| Door ID | Cabinet code and position | B01-L, B01-R, W03 | Keeps cut parts tied to each opening |
| Opening | Width and height | Measure the actual box or frame | Bad openings create wrong finished doors |
| Overlay or gap | Positive overlay, negative inset clearance | Opening plus two allowances | Controls reveal, hinge clearance, and fit |
| Frame parts | Stile, rail, cope, panel reveal | Rail = width - stiles + copes | Turns finished size into machine cuts |
| Waste | Milling, defects, grain matching | Subtotal x waste percent | Provides realistic material pull numbers |
With the raised panel door calculator you input the size of your cabinet opening and it spits out the cut list for panel blanks, rails, stiles, cabinet doors, and total material. It figures how big each piece needs to be and it even accounts for material waste and prints in spreadsheet form for planning in the shop. No more guessing at measurements that affect several pieces.
The calculator does all the math while you work with cutting and putting together. To use it: Choose how much overlay you want, the calculator takes that away from the opening width, then pick the number of leaves and the calculator will divide the door width equally into those spaces. It even allows for a centered reveal when using double doors by taking the center reveal amount away from the opening width first.
Calculator for Making Raised Panel Doors
Then, dividing what’s left over by however many leaves are selected, makes sure both doors line up with the frame. No more gaps or binding issues, just perfect fit to the opening every time. The sizes of the rails and stiles will vary according to the style of frame you choose as well as the height of the door.
If you enter the width of your stiles the calculator will calculate your rail lengths for you. It also includes the cope allowance at both ends of the rail which ensures that when you set your cut depth it dont cut the rail too short. There is no adjusting the fit of the joint.
The tool does all that. And all of this is carried through each door in the project with consistency. The panels are made of wood so they will move over time.
For that reason, the blanks need to be slightly larger in both directions to compensate. The clearance allows the wood to expand or contract without cracking. But all of this assumes your reveal is the same on every piece along the edges of your panel.
When you add the float allowance, the blank size shrinks according to the groove depth. Then the calculator sizes the blank up (or down) to retain the structural integrity of the finished door. Cut it to size and it fits snuggly into the groove without binding.
The Cut List
Depending on the total board feet required and type of wood, orders are made for materials. Just choose your species and let the calculator add in the waste (the typical allowance for error or imperfection in a board). That way you buy sufficient stock material to make the project.
No more, no less. Youll still check the actual boards for tone and grain. But with this calculator, you have an estimate for how much to order.
Then when it arrives, you confirm the boards are straight grained. It multiplies one set of cabinet door sizes by however many cabinets you have. It’s easy; type in how many doors are exactly alike and the calculator adds up the panels, rails and stiles needed.
Then it will turn all that into board feet. So if your kitchen has three rows of drawer fronts vs. One pantry door, for instance, you can see which material is most economical. Before you go to the lumberyard.
Which saves time and ensures you dont order too much. Standard dimensions of cope lengths, reveals and stiles are listed on reference tables which ensures proportionate sizing between various cabinet styles. Simply apply those numbers in the calculator.
A field is also available for cabinet codes. Assign a code to every door, and note that code on all the matching pieces. That way, you’re assured all doors match grain pattern, and there will be no assembly confusion.
Tables can then stay at hand during big layout projects such as kitchens. Errors in calculations compromise your projects accuracy. For instance, you fail to account for a reveal in the middle of double doors, making them too large on each leaf.
You neglect extra-wide rails for tall doors. And you assume that the blank is the actual size it will be when finished. All of this leads to pieces not fitting together at assembly time.
The calculator eliminates those mistakes because it automatically generates proper dimensions. Follow the cut list and all the pieces fits together. All the opening dimensions are calculated, exactly as they should be cut out in your cabinets.
All you do is enter what you need and it gives you all of the pieces and materials needed. Check them over, then off to the router table you go. Your door fits nicely into the cabinet opening and has just the clearance desired.
It was fabricated precisely because the calculator helped you get the right figures and the final product is exactly as specified.
