You installed a half-inch conduit from the panel to the kitchen outlet. Halfway through your installation, you realize you can’t pull any additional wire in there. A ground, a neutral, and two hot wires is already in the conduit. And now you’re looking at a wall box with nowhere to go because you didn’t check fill rules first.

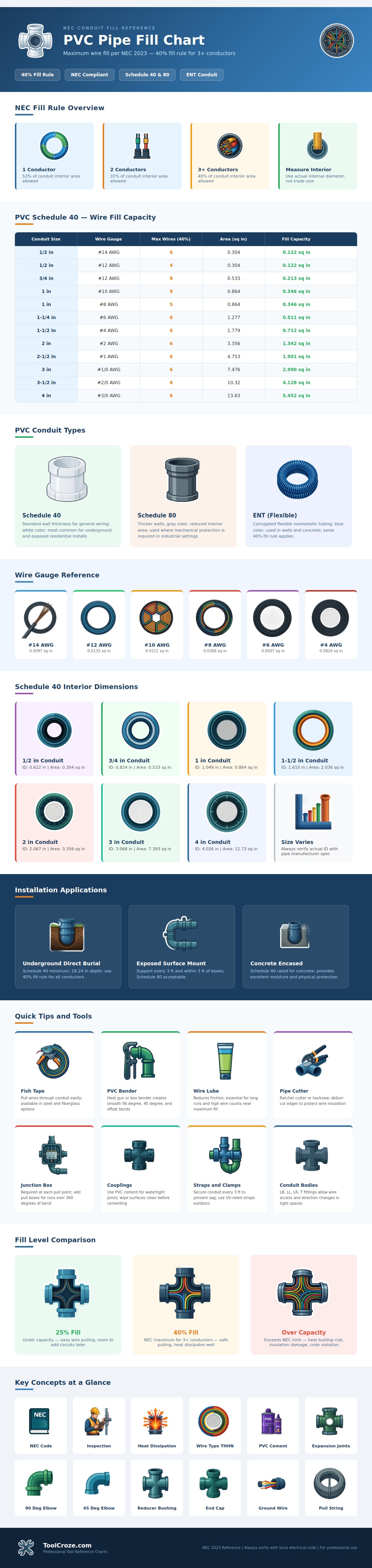

Enter the PVC pipe fill chart. It will tell you exactly how many wires can be pulled inside every size of trade conduit without any costly demolition work.
Why You Need Wire Space
Understanding Wire Density Rules
There are rigid rules regarding how many wires can go in a single conduit or electrical box. Why? Because they want room to pull wires and keep them cool so they don’t overheat. Pulling wires through a tight space can cause friction that strips or damages their insulation. Too many wires packed tightly together create friction which causes heat build up. That heat break down the wire jacket over time. This creates a slow fire waiting to be discovered during an inspection, which is not something anyone wants.
As the chart indicates, with three conductors or more you’re down to a fill rate of forty percent. In other words, no more than forty percent of the inside cross sectional area can be filled with wire. The rest is void. And this void serves as both a way for your fish tape to pass through as well as a cooling buffer. Not much room but on long runs and/or with multiple bends, this difference does matter.
When you’re pulling only a single conductor or two, then the code permits a higher fill percentage. Because there’s less friction among the wires, the maximum fill rate for a single conductor is now fifty-three percent. But most circuits in a home are at least three wires. So the forty percent rule will be what you deal with on an everyday basis.
The first thing to know is that even though both schedule 40 and schedule 80 PVC are called by the same name, they are not created equal when it comes to their interior sizes. If you’re picking conduit based off what’s printed on the outside of the pipe, then you’ll run into problems, specifically failed inspections. That’s because schedule 80 pvc is heavier duty for mechanical protection used in industrial applications. And because it’s got thicker walls, less space remain inside. So how do you know what size to pick? You measure according to the true inside diameter. Remember: the label is on the outside.
The infographic makes it clear why this matters. This reminds installers that one one-inch conduit might not hold the same amount of wires as another. Why? Because some conduits are actualy schedule 80 rather than schedule 40. And schedule 80 doesn’t accommodate as many as schedule 40. You may assume there’s still lots of room in a one-inch conduit so you stuff ten number twelve wires inside. But if that conduit is schedule 80, your pull just became impossible, and now you’re out of code.
A second important thing to think about for your plans is the gauge of the wire. How much does #14 wire take up compared to #4? Quite a bit, right? Many times one big conductor will have the equivalent fill as multiple smaller conductors. These cross sections below are a visual example of that. They also explain why you often need to upgrade the conduit for larger wire sizes. You won’t be able to just replace a smaller wire in a piece of conduit with a bigger one and have them both fit inside.
When multiple gauges of wire need to be run together (common on multiwire branch circuits) the math really starts tightening up. To avoid guessing, you’ll want to calculate total square inch area of all the conductors and then divide by available fill area.
And then there are the installation tools. A good fish tape really helps when it comes time to pull. Don’t skimp on the wire lubricant either. Friction goes through the roof without lube. Not only does this generate heat, but it can damage insulation on any sharp corners. Always be sure to deburr the ends of cut pipes before you begin. Those rough plastic burrs will feel like sand paper on your wires.
Pull boxes help keep number of bends under control while reducing resistance. When the cumulative change in direction is greater than some degree count, the code requires an access point. Plan these ahead of time to save yourself from hours of frustration later.
If you have things underground, that complicates matters too. According to the code, direct burial PVC must be buried below a certain depth. Often they require sand bedding to protect them from rocks. Underground, the same rules about fill apply. Once the dirt goes in, those pipes can’t be easily checked. Get it wrong and you’ll pay for it. Digging up your yard because you installed the wrong size pipe isn’t cheap. Be sure to check your local codes too, since some are stricter then the national standard.
Conduit becomes a science, not a crap shoot once you know how much it can hold. Instead of guessing, it’s about math. And the chart up top? It is a handy reference for that math. It is an easy way to stay efficient and follow the code. By honoring that each wire requires its own breathing room, you’re protecting your install from mechanical stresses and more importantly, heat-build up in the pipes. And all that air between your wires? It is not wasted space. It is your safety margin.
