Pole Barn Roof Pitch Calculator
Estimate pole barn span, half run, ridge height, truss or rafter length, roof surface area, snow-shedding fit, truss count, and sidewall clearance.
🏗Pole Barn Presets
⚙Calculator Inputs
📊Pitch Results
🧱Current Geometry Grid

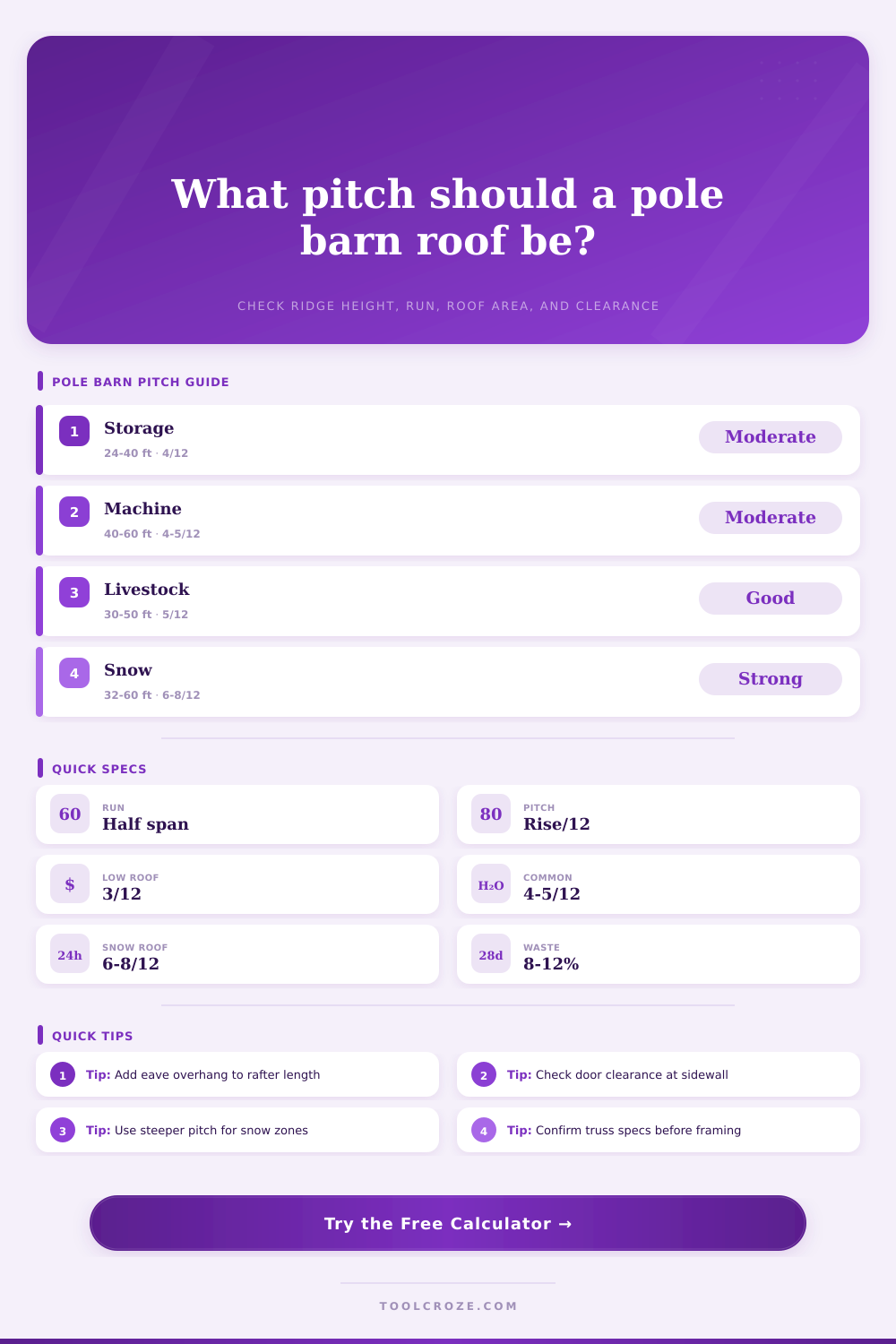

📘Pole Barn Reference Tables
| Pole barn use | Typical span | Common pitch | Sidewall focus |
|---|---|---|---|
| Small storage shed | 18 to 30 ft | 3/12 to 4/12 | Simple door clearance |
| Equipment bay | 30 to 50 ft | 4/12 to 5/12 | Overhead door height |
| Machine shed | 42 to 72 ft | 4/12 to 6/12 | Header and truss heel |
| Livestock shelter | 24 to 48 ft | 4/12 to 6/12 | Ventilation at ridge |
| Riding arena | 60 to 100 ft | 4/12 to 6/12 | High sidewall volume |
| Snow category | Target pitch | Shedding note | Calculator check |
|---|---|---|---|
| Low snow | 3/12 or steeper | Runoff is usually the main goal | Pitch at least 3/12 |
| Moderate snow | 4/12 or steeper | Common post-frame balance | Pitch at least 4/12 |
| Heavy snow | 6/12 or steeper | Better sliding potential | Pitch at least 6/12 |
| Alpine snow | 8/12 or steeper | Use engineer-reviewed loads | Pitch at least 8/12 |
| Clearance item | What to measure | Typical allowance | Why it matters |
|---|---|---|---|
| Sidewall height | Floor to eave line | 10 to 18 ft | Controls door and wall clearance |
| Truss heel depth | Bearing line to lowest chord | 4 to 12 in | Reduces clear sidewall height |
| Overhead door | Clear opening height | 8 to 16 ft | Needs room below truss or header |
| Equipment reserve | Extra height above machine | 6 to 18 in | Allows uneven slabs and tires |
| Truss spacing | Use case | Frame count rule | Roof area note |
|---|---|---|---|
| 2 ft on center | Rafters or close trusses | Length / 2 + 1 | More framing lines |
| 4 ft on center | Common post-frame trusses | Length / 4 + 1 | Good planning default |
| 8 ft on center | Engineered post spacing | Length / 8 + 1 | Needs rated purlins |
| 10 to 12 ft | Large engineered bays | Length / spacing + 1 | Verify truss package |
💡Calculation Tips
The roof pitch are an important detail of your pole barn plan. This isn’t merely about looks: it’s also tied directly to the question of whether water goes in or over the roof. How you build the roof connects your money with laws of physics, and getting that wrong is costly.
How do materials gets ordered? How does the roof angle relate to ceiling heights? Once you plug in your span, sidewall height, pitch, truss heel depth, and snow load requirements, the calculator handles all the math for you. No more converting and guessing at coefficients.
Why Roof Pitch Matters for Pole Barns
To begin calculations, we’ll consider span, which refers to width of the structure from wall plate to wall plate. Span is fixed and sets the structural problem. A span of twenty-four feet are generous, while a span of sixty feet are not as forgiving. Half of that span would of called the run, being horizontal distance covered by the truss/rafter to meet the center ridge line.
Why does this matter? Lumber is available only in fixed lengths. Knowing exactly how much slope there will be help when visiting supplier.
One detail people don’t think about much when they design is the Ridge Height. What’s the vertical distance from your eave to peak of your roof? That’s going to affect how many tool you can store, as well as how it ventilates. A low ridge height will be uncomfortabel. It’ll be tight if you’re storing taller items like mowers. For workshops with heaters, low ridge height will cut down on how useful they are.
Knowing the exact ridge height is important, and this tool takes into account not only the pitch and sidewall height but also the truss heel depth (where the truss touches wall plate). Remember, even that little fraction of a foot accumulates over time. Double-check the clearance results to make sure your overhead doors has enough clearance.
Another important consideration is how much snow will fall where you live. Because some parts of country get hammered with snow, a flat roof presents a liability; a potential danger as it collapse beneath the buildup. A steeper pitch helps snow shed itself, sliding down the roof before piling up to heavily. Based off typical snow conditions, the calculator rates how well your proposed pitch will perform.
This isn’t just about keeping the roof strong. Ice dams are no fun. The weight of winter storms resting on your structural framing is also a problem. You don’t want the snow to stick around for the season. You want it off building.
The calculator factors in roof areas plus a waste allowance that takes into account overlap between panels, as well as potential cutting errors. You don’t want to order just enough material to run out half-way through installing the panels, so the waste factor give you some breathing room. In addition, it predicts how many truss frame will be needed depending on what space you prefer between them. A common standard for post-frame construction is 4 feet on center, although certain types of wind uplift or heavy loads may require tighter spacing.
On the page, there’s also a table of reference that outlines typical pitches according to use: for machine sheds; for livestock; for storage. These are not hard-and-fast rules, but they is a place to start. Depending on your own preferences and your location, you may want a shallower pitch, for less wind or a steeper pitch for better drainage.
Run the numbers first (before laying down the foundation), but understand this: It’s a lot more difficult to change your mind once the posts are set in the ground. A pole barn can be a rewarding project. When done well it’s a place you’ll use for decades. It is something moddern made just for you.
The first part of getting that is understanding how the pitch comes into play. That allow you to make sure it’s sound, has enough material, and works well on the inside. Spend the time and know the math behind it. You won’t regret it in the future.
