Pitch Roof Angle Calculator | Roof Pitch to Degrees

When most people imagine their roof they visualize a plain old triangle. What that geometry doesn’t show is the additional labor involved. A few degrees of pitch can mean a lot more area to cover in your project. If not accounted for early on, that sneaky space will drain your budget.

The calculator do the math for you. It turns your easy-to-understand pitch ratio into total material counts and rafter lengths. This saves you from having to guess at the actual bundle count for shingless.

Understanding Roof Pitch for Your Project

So how do you understand the basic idea, the rise over a twelve-inch run? Well, for starters, it’s a standard measurement from before the age of moddern construction. It was developed by architects and builders who needed a standard way to communicate with each other. If I say six-over-twelve pitch, then I’m describing a slope where the roof rise six inches for every foot of horizontal run. In math terms, it equals approximately twenty-seven degrees. That’s quite a steep slope (for suburban homes), which will alter the type of materials you use.

So how do you remember what it means? What are you measuring? Here’s the key: you’re measuring the vertical rise and the horizontal run. Not the length of the rafter itself. And that’s why formula fails when you measure up the roof deck with a tape measure; that simply yields longest side. So measure plumb and measure level.

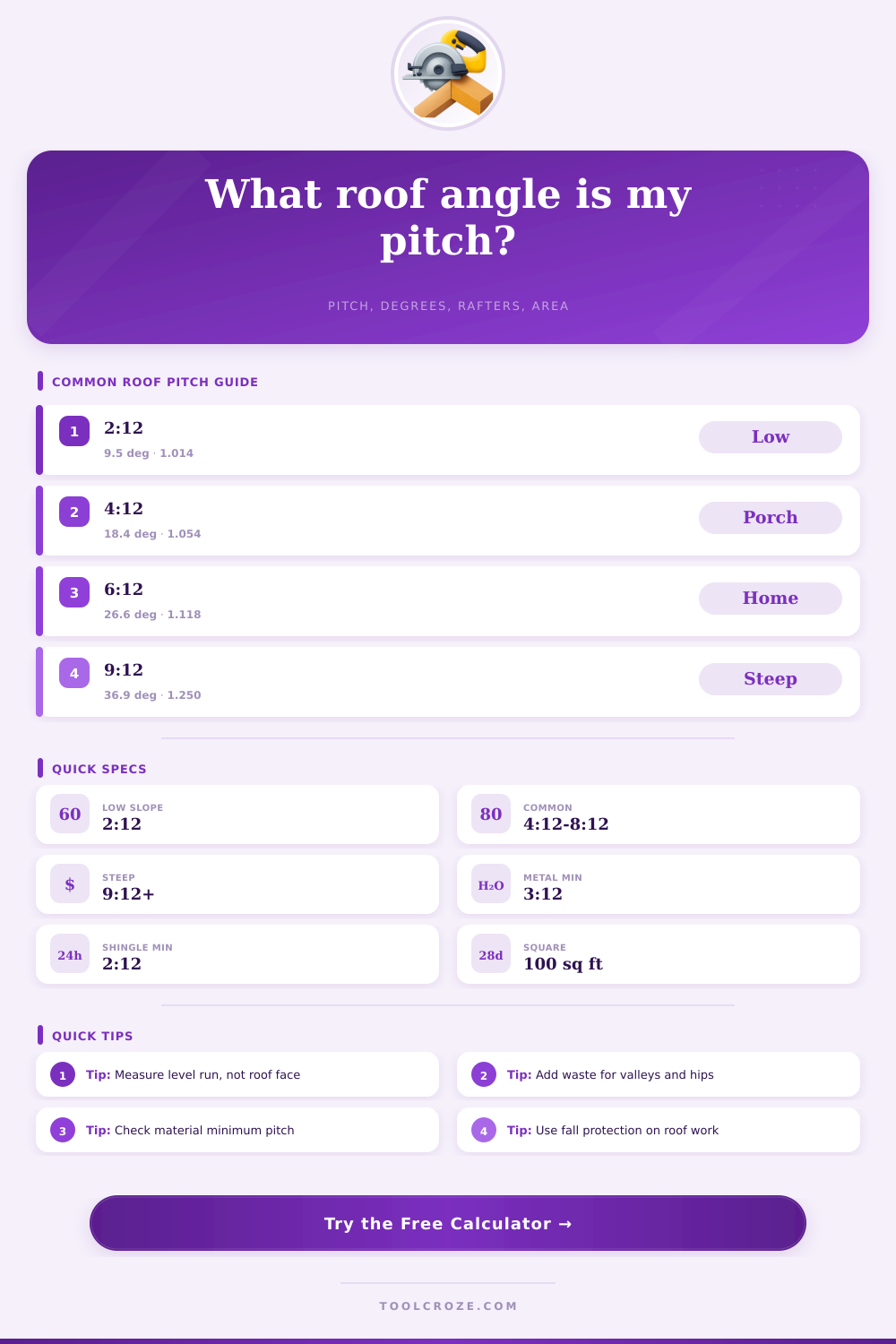

After determining the angle, the next critical multiplier you’ll use in ordering material is the slope factor. This represents how much longer your rafters must be to account for the roof’s rise over its horizontal distance across the house. For example, a six-over-twelve pitch has a slope factor of approximately one point one eighteen. If your house is forty-feet wide, then the rafter need to span approximately forty-seven and a quarter feet from the ridge to the eave. Small, yes, but it makes a difference when you’re at job site trying to cut lumber or buy shingles. And if you don’t have the slope factor, you will come up short. See how fast the factor increase with a steeper roof. Check the chart below (known as a roof pitch reference table) for other pitches.

The lowest slope that’s safe is determined by your material choice. With asphalt shingles, for instance, you typically want to be at or above two-over-twelve (meaning two inches of vertical rise for each 12 horizontal). Below that number, you has to use some combination of sealant tape and specific underlayment products to keep it leak-proof. Metal stands up better, and with good seam seals will function down to three-over-twelve. Slate and tile need steeper pitches in order to drain and resist wind uplift. Get the wrong material for your shape, and you’ll soon get the wrong results.

The other place our intuition lets us down is in waste factors. For a straight-forward gable roof, perhaps five percent overage will be needed to cover any cuts and trim. But if your roof has hips, or valleys, or dormers, or skylights, then bump up that waste allowance to at least fifteen or twenty percent. Those tricky intersections produce odd angles that result in unusable off-cuts. You can tweak this figure using the calculator, according to your roof style. That way, what you order matches the difficulty of actually putting it up, not the clean mathematical space.

The last non-negotiable variable in that equation is safety. A steeper roof increases slip potential and requires longer periods working at height. Twelve-over-twelve pitch are effectively a forty-five degree angle which alters ladder positioning and fall protection needs. Nothing can take the place of good safety equipment or knowledge of what the snow load or wind load might be where you live. But knowing the math allows you to plan, while appreciating the structure make you safe.

Knowing these variables takes the confusing number crunching and turns it into a clear roadmap to your project. You order exactly what’s needed, and could of did it right the first time.
