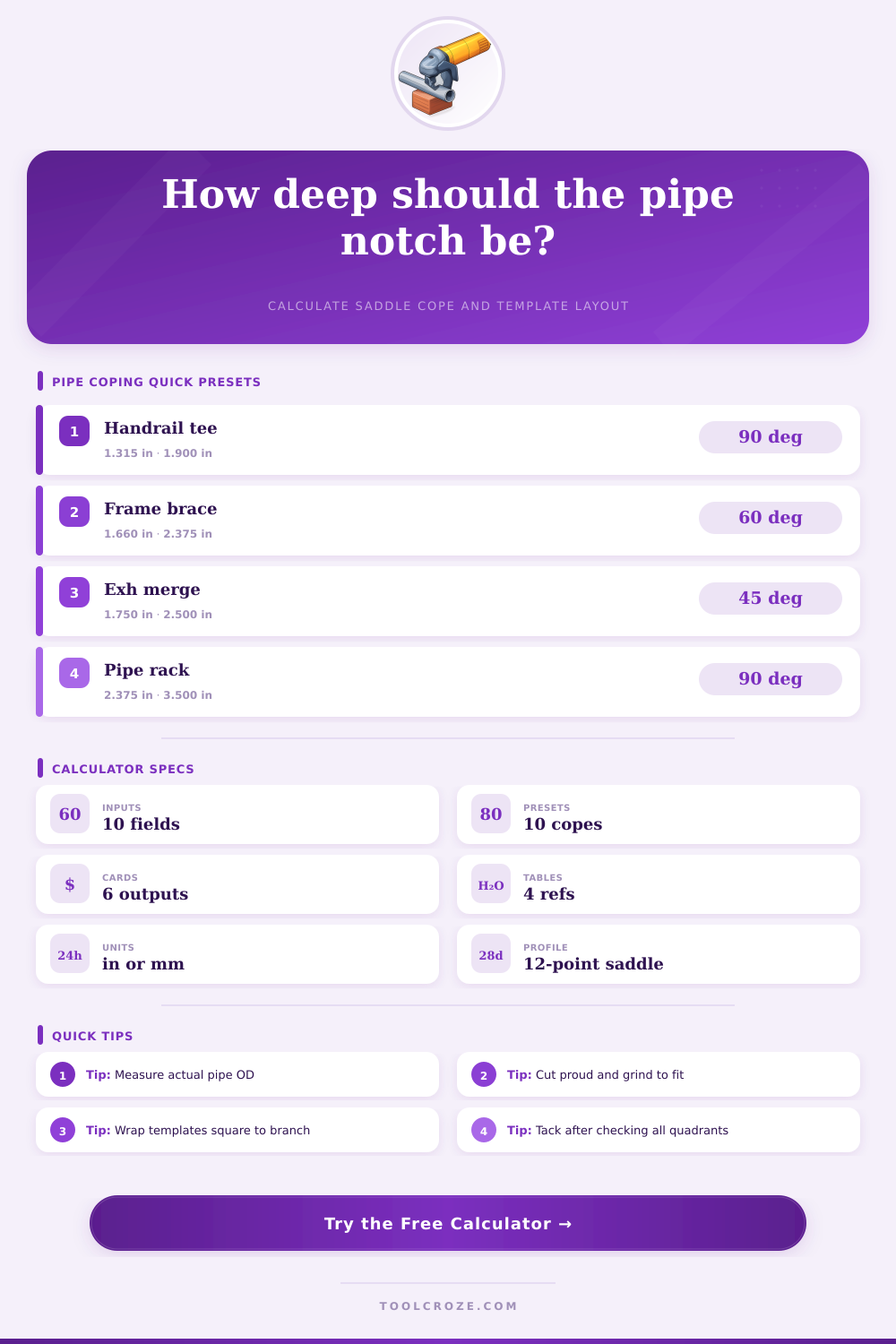

Pipe Notch Coping Calculator

In two dimensions, pipe coping sounds easy; just draw a sketch and it will look easy. Until you pick up that piece of steel in three dimensions. Now you have to bend the branch pipe around the main run. So the deeper you cut, the more metal you take off at edge. No arguing with geometry. It has to fit perfect. And if you don’t get it right, you’ll hear the grinder when you’ve got the notch too shallow, and feel warmth on your gloves.

First, measure outside diameter of each pipe. Nominal sizes is just lies we tell ourselves to keep inventory organized. For example, a one inch schedule forty pipe are actualy one point three one five inches wide. If the pipe is galvanized or painted it will be even different than before. That’s why the calculator takes care of the trigonometry based off your entry of real world measurements. No more guesstimating how much to cut off the sides compared to the crown. Math need to deal with what you have to work with, not a sticker number.

Why Pipe Fitting Is Hard and How to Do It Right

Another source of error occur in the angle where they come together. With a ninety degree tee, it’s simple. The cut is symmetrical. Lower angles will stretch profile to create more of an elongated oval shape. Below sixty degrees, the saddle depth greatly increases while the length of template also increase. That’s why it’s important to pay attention to the angle of hole saw. Set to ninety degrees, but have a forty five degree joint? You’re going to be cutting directly into a diagonal intersection. You will have more material to grind out later. Match the joint angle to the tool angle so the cut hugs the naturaly shape of the wrap.

A good way to tell if your weld looks good or bad is the fit up gap. The tool calculates quality score based on how wide that gap is relative to the wall thickness. Half the wall thickness gap means you are not welding right. You are filling in a hole with hot metal. Filling a large gap with molten metal can cause burn through on thin walled pipe, and on structural members like these it make for a weak joint. Keep your gap less than ten percent of the wall thickness. The calculator checks to see how your target gap compares to the pipe spec. If it says re-cut, then you probably should of do that.

Templates are still king when it comes to proper fit. Draw the profile onto a piece of paper. Wrap it around the branch, mark depth, and cut it out. But that sheet of paper will stretch and slide around, leading to issues. To prevent that, add a small overlap allowance to the length of your template. When you tape it down, that ensures the two ends don’t meet up short of each other. If you leave field blank, the tool does that for you. It takes circumference of the branch + a little bit more for the tab.

And it’s not something you just check off a list either; this job can blind you with flying burrs and grab pipe with the force of a rotating hole saw. The key is to make your first cut after clamping the main run good-and-tight. For structural jobs like guardrails or roll cages that has to bear a load, always double-check with more than a calculator. The geometry will be handled by the tool, the rest has to come from a qualified fabricator who signs off on the final design. Precision and patience are the order of the day.

Measure twice. Cut on the outside of the line. Calculate the curve and grind it to fit. Slide that branch pipe home so there is no gap anywhere all around. It is a tedious process, but worth the prep time for the final outcome. Your hands do the rest; the math gets you there.
