The pipe doesn’t fit a half inch fitting you bought at the store. You hold it up in the aisle, it looks good. The threads appear correct. But then it won’t bind all the way or it will strip before sealing. It is frustrating. It may also be leaky.

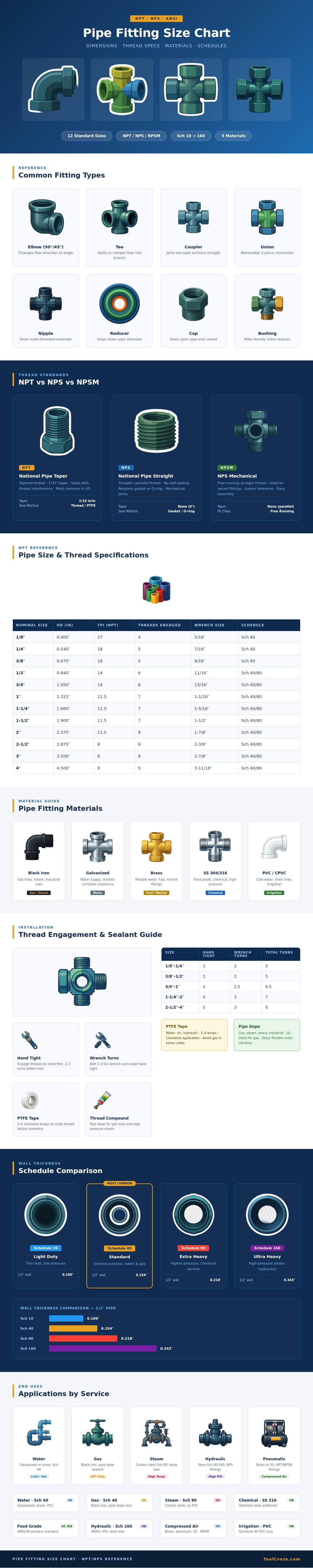

It’s not bad luck. It is typicaly a mismatch in thread engagement, schedule, or standard. Because most DIYers only care about nominal size, those details is overlooked. This infographic explains them. It explain how wall thickness, material types, sizes, and thread specs play into making a seal. Understanding all of this are more important than just getting whatever fits by the closest nominal size from shelf.
Why Your Pipe Fittings Do Not Fit
But first, about those threads: There are basicly three standards at work here, and if you get confused about which ones apply, your project is toast before it even begins. National Pipe Taper threads gradually narrow (hence the name) and seal by interference when tightened. That’s the reason they’re the go-to standard for most US plumbing, both gas and water. National Pipe Straight threads are parallel and don’t seal themselves. You need an O-ring or gasket to create pressure resistance. Finally, there is a mechanical variation, which provides free-running fit for swivel joints. In those applications, quick sealing isn’t as important then easy assembly.
Get one wrong and you’ll either damage the threads trying to force a leakproof join or end up with a vibration-prone joint that comes undone over time. To help explain this, the chart above compare the seal methods and taper angle variations. It also serves to remind you that the shape of the thread determine the sealing plan.
The same thinking applies to material choice. For instance, black iron continues to be the standard for steam and gas line application (it handles heat without degrading). If it’s a marine application or if there’s any potable water involved, brass is best choice (resistant to corrosion). Is it food grade? Are you doing chemical processing? Eliminating contaminants at all costs? You need stainless (hence its name), which are required for those applications. Cheap and light weight PVC has specific parameters regarding how much pressure and what temperatures can absorbs to it. Putting PVC into a high pressure hydraulic system is quite frankly a bad idea. The graphic illustrates those five materials. They list both their name and their best use case so you don’t fall prey to using a fitting that looks like the right one but fails under conditions of your service load.
Then there’s the matter of wall thickness. Generally speaking, schedule 40 is used for most gas and water applications because it strikes a good balance between flow and strength. For things like corrosive chemicals, schedule 80 have a thicker wall while schedule 10 features thinner walls for low pressure service like utility lines. What does this mean? The wall thickness of a half inch schedule 40 pipe is vastly different than a half inch schedule 80. Unless you account for the change in the inner diameter, mixing schedules means you’ll be hurting yourself by way of ruined flow rates. Worse yet, your fittings might not even thread on at all. The comparison section makes this point crystal clear. As you climb the schedule ladder, you can see just how much thicker the walls is.
The final element is how you install it. Each threaded connection requires starting it by hand. Carefully engage with the threads, never crossing them. After that, tighten it by hand and then use a wrench depending on size of the fitting. Use a few small turns for small diameter fittings and more turns for large diameter fittings. Then use PTFE tape wound clockwise (or a pipe dope compound) to fill any tiny thread gaps to make sure the joint seals. Don’t over tighten. It is just as bad as under tightening. A good benchmark is to count turns when going from hand tight to fully tightened. The chart above show how many turns to use for each size. That takes the guess work out of the final step.
In the end, selecting fittings for plumbing means pairing the service with the right standard. Pair the appropriate schedule to the pressure, and pair the installation technique to the seal method. Respect those details and the parts will fit together as they are supposed to. And you’ll create a system that lasts. That early frustration of standing in the aisle dissolves because you understand how every piece fits into the whole.
