Chances are good you’ve been in some dingy mechanical room looking at a jumble of fat copper wires that seem like they’ll never fit into whatever space there’s left in the next section of conduit pipe. Yeah. Electrical codes is in place for that reason. This helps you avoid creating an installation that becomes a fire hazard or a costly headache later on. You won’t have to rip out drywall just to move those wires.

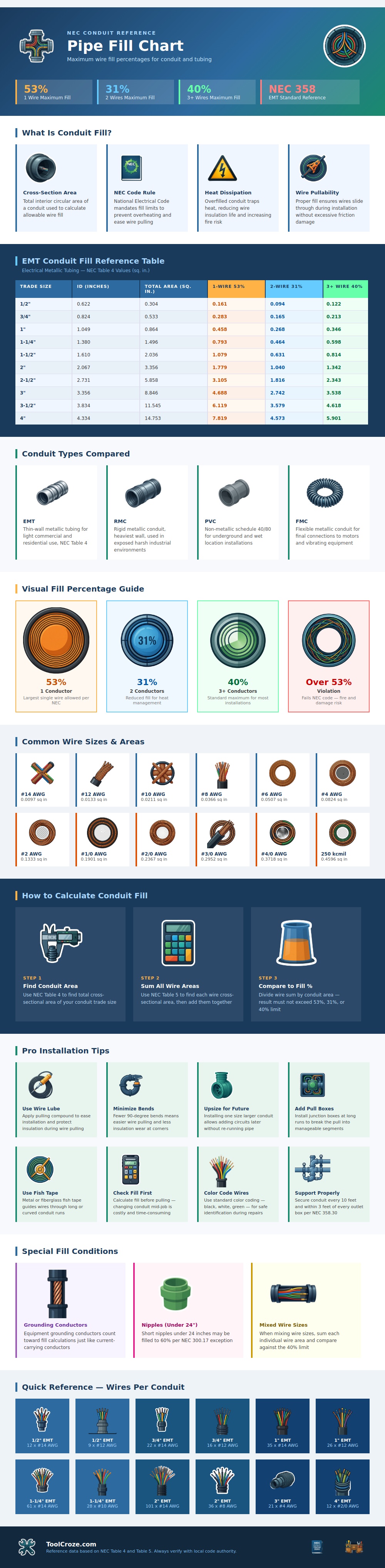

This chart shows the breakdown. As you run more conductors (and yes, these numbers are a function of both the number of wires AND their size), there’s less room for all those wire. Not only that, but you’re dealing with two concerns: Heat and Friction. If you cram too many wires together, they can absorbs the heat caused by the electrical resistance within. This causes insulation to degrade over time which can cause shorts and in extreme cases, fires. Those limits exist to ensure that doesn’t happen.
Why Conduit Fill Limits Matter
According to the infographic above, there are three primary percentage limits you should memorize. When using only one wire, the conduit interior must have no more than 53% filled. Seems like plenty? This changes when you consider just how much room a fat motor cable require. With two wires, the limit plummets to 31%. At first glance this doesn’t feel right; it’s easy for two circles to pack nicely inside a larger circle. But the code favors how easily they can be pulled apart in this case.
That final wire has always been the most difficult. Try pulling something down a pipe that’s overfull with cables and you’ll see what I mean, you’ll start stripping insulation from your conductors as they rub against both the conduit walls and each other. If there are three or more wires, then we hit the 40% limit. That’s what you need for typical residential and commercial wiring, where you have a mix of hot, neutral, and ground wire.
How do you know? Look up how much space each type of wire takes in its given gauge and compare that to how many square inches the inside of your conduit is. It all adds up pretty easily: just multiply and divide. But unless you do so before running wires through the conduit, it will be a struggle instead of an easy afternoon. Planning your runs always requires some forethought. Running a slightly larger conduit now if you suspect you may want to add an additional circuit in five years means avoiding chasing wires around walls later. That’s a little extra material that would of pay back with labor savings over time.
Consider bends as well. Each 90-degree turn increases friction significently. Those bends are even harder to negotiate the fuller the pipe. A good pulling lubricant can make a huge difference here, it lessens drag and protects the wire insulation from abrasion. This is where so many electrician go wrong: they’ll look at the amp rating and/or voltage needed but neglect to consider how much room is available. They’re both important. You can have a perfect 20-amp-rated circuit. It just won’t work because there’s no way in hell you could get those wires inside the conduit without exceeding fill limits. It’s a real-world limitation that makes you think ahead.
Also note that various kinds of conduit come in different inside diameters even at the same trade size. Rigid metal conduit is thicker-walled than electrical metallic tubing, for example, so there’s more room for wiring inside EMT. If you’re running a tight line and need just one more conductor, this will matter. Be sure to know what kind of pipe you have before making those calculations.
The bottom line: This stuff just makes sense. It’s safe. It’s professional. And it’s going to last decades. And then it will get approved the very first time. If you want wires to slide right in place, stay cool while under load, and be reachable for maintenance down the road, take some time to consult the fill chart before cutting a pipe. That’s what will keep this simple job straight forward. And turn a potential disaster into a straightforward job.
