If you’ve ever fed wire into a conduit, you know what I’m talking about, it seems like basic physics right? It continues until your hands ache from trying to force a rigid cable down a full pipe. That’s when you realize someone broke the fill rules of National Electrical Code, and why they’re there, to spare you that same headache.

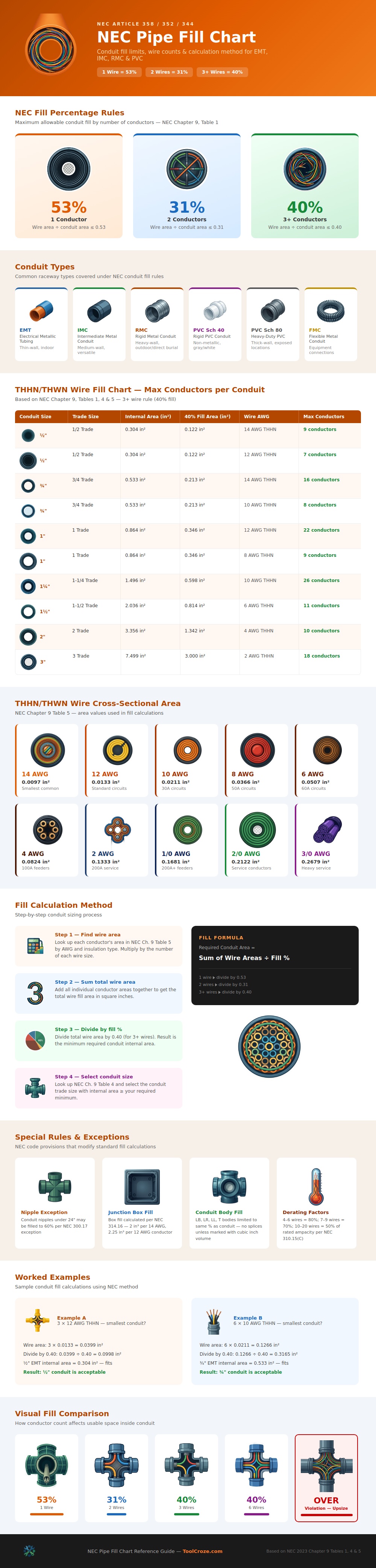

As shown in this chart, filling a conduit with too many wires mean you may not have as much space as you think. So it goes from guessing at how far things will go, to a straightforward mathematical equation. Knowing where you stand keeps you from having to tear out a whole run because you filled the conduit too densely.
How to Calculate Conduit Fill
So when you lay this all out, the basic math makes sense. For example, if you’re pulling just a single conductor, then up to fifty-three percent of the inside volume of the conduit are allowed. Again that sounds like a lot of wiggle room and play. But that gives you a bunch of slack and still room to work with.
If you want to run another conductor, that number gets much smaller. In fact, it is only thirty-one percent. That’s what catches folks off guard. They think “hey I’m going to add an extra wire. What’s the big deal?” A lot! And it will make a difference in how hard you need to pull.
Once you hit three or more conductors the rule changes yet again to allow forty percent. Why did it go from two wires to three? Well it has to do with geometry of stuffing multiple round things in a cylinder. But we don’t have to remember any of this, thanks to the clear illustration showing where those %s kick in. This lasts at least until you forget which ones changed.
To do it properly, though, you’re not just considering the length: you’re also considering the cross-sectional area. Each gauge of wire come in a certain size, including insulation. For example, a chunky service entrance cable may occupy a substantial portion of the square inches available, whereas a fourteen awg thhn occupies only a tiny amount.
So you add up the areas of each of your conductor, then multiply that by whichever is the right number depending on how many conductors are present. For example, if you were carrying six ten-gauge conductors, you’d add up their respective areas and divide by.4 to get the minimum size conduit you should of use. The chart shows you the internal area for various commonly-used conduits such as three-quarter-inch or half-inch EMT conduit. Then you can compare what you need against what actualy exists, and purchase accordingly. Abstract math becomes concrete shopping list.
In practice, however, textbooks aren’t followed to the letter. Where the code says “fill can be up to 60%”, you’ll find nipples less than twenty four inches long. This provides a nice little bit of leeway when trying to connect your equipment. The code for junction boxes has its own set of rules regarding cubic inches of conductors per box. These are independent of conduit fill. Confusing things is a bad idea. Doing so makes for a cramped workspace, both hard to service and potentially hazardous.
And then there’s the issue of derating factors (which make things flexible). Too much wire crammed into an area won’t let them dissipate their heat load correctly, requiring a lower ampacity rating for the wire. So what normally could carry twenty amps now can only handle ten because it’s got eight sizzling hot neighbors. You don’t want your wire just to fit inside something, you want to ensure it stays cool enough to survive.
I know some electricians who buy bigger conduit all the time and just forget about the sizing. It’s easier that way. This lasts until you face a situation where money or space is limited and precision becomes more important then convenience. If you can size properly, then you can get away with using less expensive and smaller materials that don’t make installation harder or less safe.
The image below is an example of how fast available space goes away by adding wires. And this illustrates the importance of planning before pulling. You don’t want to be halfway through a pull and realize your conduit is already full! Respecting the space within your raceways is the key to mastering pipe fill. From there it’s all about organizing the chaos of tangled up cables into a system that functions perfectly for decades.
With this calculation in mind as you approach every run, you’ll build confidently without guesswork. You’ll know precisely how much wiggle room you have the next time you grab that pull string. What was once a possible headache becomes a slick pro finish.
