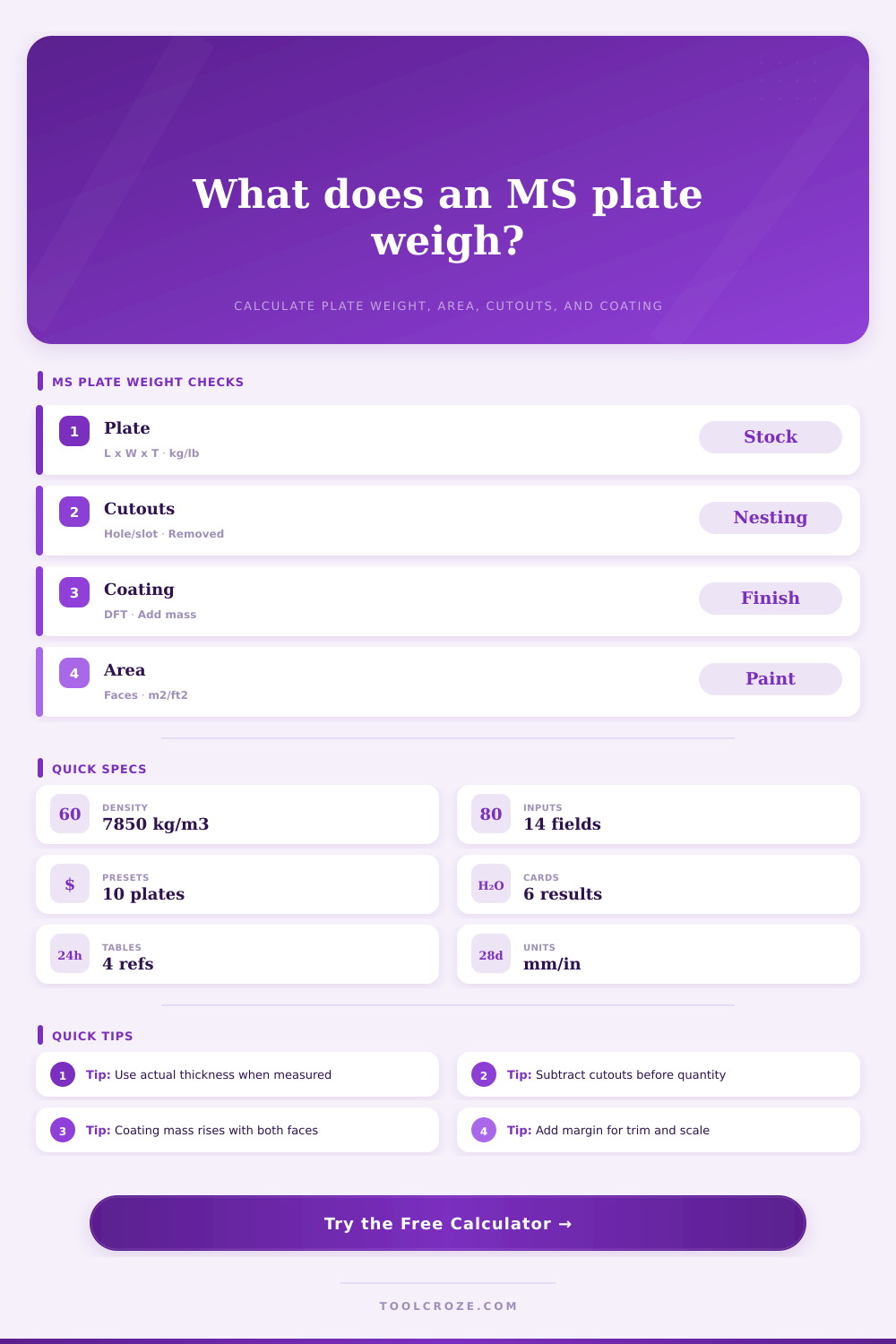

Weight Calculator MS Plate
Estimate mild steel plate mass from length, width, thickness, quantity, grade density, cutouts, coating film, and usable surface area.
| Thickness | kg/m² | lb/ft² | Typical use |
|---|---|---|---|
| 3 mm | 23.55 | 4.82 | Covers, light panels |
| 6 mm | 47.10 | 9.65 | Base plates, brackets |
| 10 mm | 78.50 | 16.08 | Gussets, wear pads |
| 12 mm | 94.20 | 19.29 | Floor plates, frames |
| 16 mm | 125.60 | 25.73 | Machine guards, flanges |
| 20 mm | 157.00 | 32.15 | Heavy blanks, mounts |
| 25 mm | 196.25 | 40.19 | Machine beds, stiff bases |
| 40 mm | 314.00 | 64.30 | Counterweights, thick pads |
| Grade set | Density kg/m³ | Density lb/in³ | Calculator note |
|---|---|---|---|
| IS 2062 E250 | 7850 | 0.2836 | Common structural MS plate |
| ASTM A36 | 7850 | 0.2836 | General fabrication plate |
| S275 | 7850 | 0.2836 | Structural plate allowance |
| S355 | 7850 | 0.2836 | Higher strength, similar mass |
| Hot rolled MS | 7860 | 0.2840 | Scale may add small variance |
| Cold rolled MS | 7870 | 0.2843 | Tighter gauge tolerance |
| Preset | Size | Thickness | Approx net weight |
|---|---|---|---|
| Base plate | 300 x 300 mm | 6 mm | 4.24 kg before allowance |
| Gusset set | 450 x 180 mm | 10 mm | 6.36 kg each |
| Floor plate | 1200 x 600 mm | 12 mm | 67.82 kg before holes |
| Cover plate | 900 x 450 mm | 16 mm | 50.87 kg each |
| Machine bed | 1000 x 500 mm | 25 mm | 98.13 kg each |
| Washer blank | 600 x 600 mm | 40 mm | 113.04 kg before bore |
| Coating | Density kg/m³ | Common DFT | Mass behavior |
|---|---|---|---|
| Shop primer | 1300 | 40 to 75 micron | Light add-on |
| Epoxy paint | 1450 | 100 to 250 micron | Moderate add-on |
| Powder coat | 1600 | 60 to 120 micron | Even film mass |
| Zinc galvanizing | 7140 | 85 to 140 micron | Heavier metal layer |
Steel: On first thought, mild steel seems pretty straightforward. A pound here and a pound there, right? Not quite! Steel can be lighter or heavier than anticipated depending on very small variables. You buy a steel plate based off its expected weight, only to find it weigh more than you expected. Oops. Now your shipping costs are off or your load calculations is off. The challenge with steel is knowing how much it realy weighs.
Then most folks go to thickness, width and length. That’s great if it’s a ballpark guess. Plug in your material and actual conditions on the calculator above and it do the math for you. No need to fumble around trying to remember conversions and coefficients. It recognizes that not all mild steel are created equal. Maybe it’s ASTM A36 and maybe it’s IS 2062. Both is standardized to weigh approximately 7850 kilograms per cubic meter. But even then there is some small variation because hot rolled commercial stock has surface scale while cold rolled has tighter tolerances. Cold rolled plates are typically tighter tolerance, so their stated thickness is nearer to actual thickness. The discrepancy between nominal gauge and actual thickness is where most of the weight calculation error occur.
Why You Need an Accurate Steel Weight Calculator
Also realize that what you cut out is something you must account for. Any holes you drill, slots you cut, that’s mass of steel you’re taking away. Do it now before you overestimate how much the final product weigh. Big deal if you’re on a tight lift limit. You can define rectangular slots, round hole and have it subtracted out for you. Otherwise you are carrying imaginary weight around with you.
Then there’s the coating. A pound of paint is lighter then a pound of zinc galvanizing (basically another layer of metal). If you’re using a big sheet that has a ton of coating on each side, that extra weight starts to matter. The weight calculator accounts for primers, epoxies, powder coats, galvanizing. It accounts for the density of those coatings and estimates total weight.
Then there’s dry film thickness. That’s where most folks trip up. A couple microns here or there doesn’t sound like much until you think about it over a square meter. Calculate the weight of the steel without the finish, then ask yourself why the scale show a higher weight at the shipping dock.
The real world is messy, and fabrication follows suit. The plates aren’t typically cut perfectly to size. Plasma edges, saw cuts, etc. These processes all leave a bit of waste behind. To account for this reality, add a 5-10% tolerance allowance. Your buffer for scrap and rough edges will help you account for the actual mass of the material. If you don’t account for this allowance, your orders will come up short. This means you would of had to purchase additional material at the last minute.
For some commonly used thicknesses, there’s a handy set of reference tables on the page so you can double-check your sanity. For example, a 6mm plate is roughly forty seven kilograms per square meter. At twenty millimeters, it goes up to one hundred fifty seven kilograms per square meter. That will give you something to mark off if you’re trying to identify gross errors before they turn into costly mistakes. You’re not going to calculate a twenty-millimeter plate and have it weigh out like a six millimeter one. Something in your inputs didn’t add up right.
Weight is a limitation. How do you move it? Where do you hang it from? What kind of strain will the structure endure? In short, weight is more than a number. It’s a factor to consider beyond basic math. The shape. The size. There is waste. Material. Finish. There are cut-outs. All these factors play into the overall weight and how they’ll perform as part of your finished structure. It isn’t steel; it’s a weight and you’re purchasing a certain amount of it. One that needs to act accordingly in reality.
Get close with the tool, but check again once the steel has arrived. Take those few additional minutes to calculate that margin of safety. The unplanned weight on the scale will always be heavier then what you anticipated.
