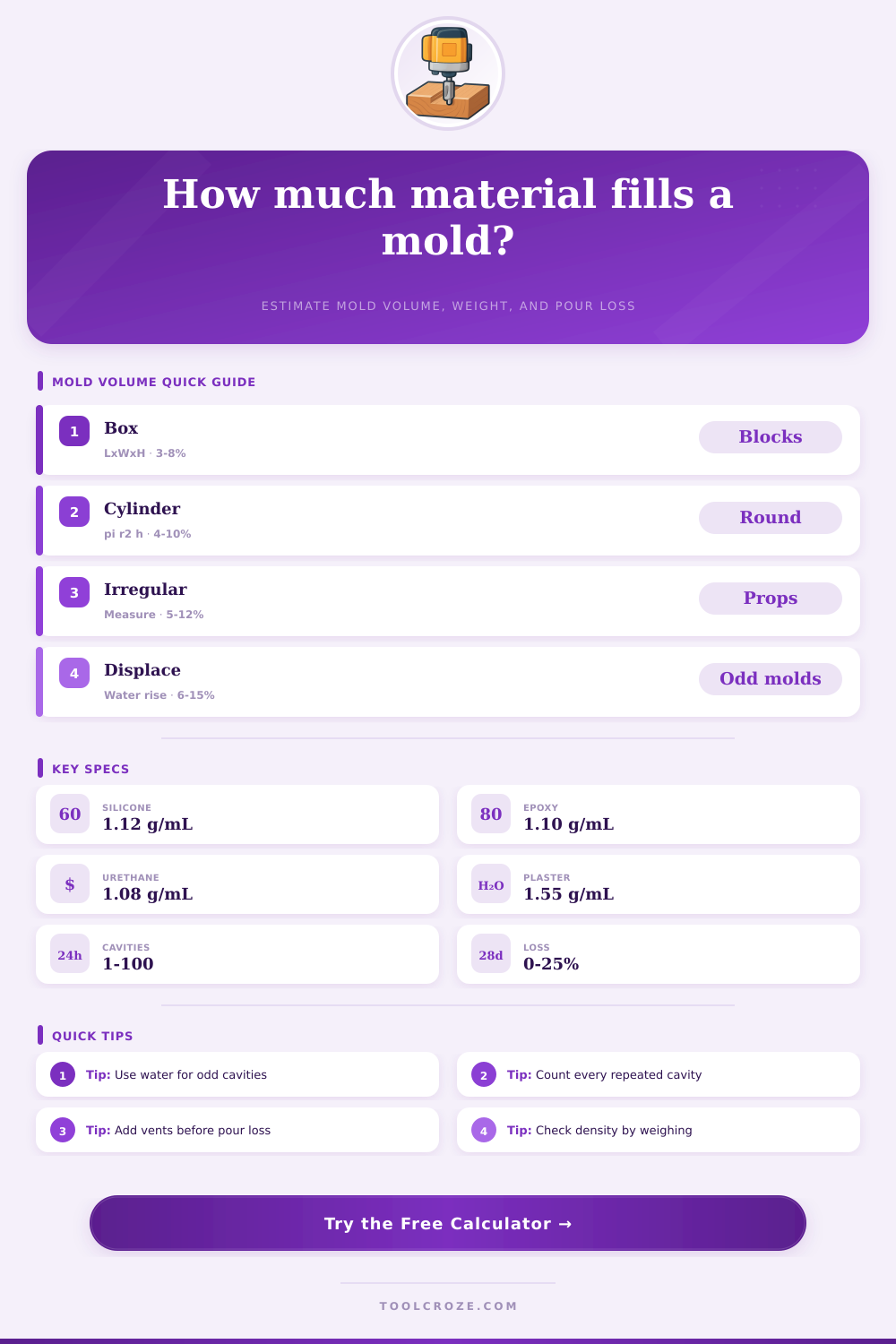

Mold Volume Calculator
Estimate fill volume and material weight for box, cylinder, ring, and irregular molds using dimensions, displacement readings, cavity count, pour loss, sprue allowance, and material density.
Calculation Breakdown
| Shape Method | Formula Used | Best Input Source | Planning Note |
|---|---|---|---|
| Box / rectangular | Length x width x fill depth | Inside mold dimensions | Measure the actual cavity, not the outside mold block. |
| Cylinder | pi x diameter² / 4 x height | Inside diameter and pour height | Average tapered cups or round molds when sides are not straight. |
| Ring / tube | pi x (OD² - ID²) / 4 x height | Outside diameter, core diameter, height | Useful for gaskets, sleeves, candle rings, and cored pours. |
| Irregular measured | Entered volume x cavities | Water, rice, sand, wax, CAD, or trial fill | Best for figurines, relief panels, textures, and uneven cavities. |
| Water rise | Container area x level rise | Straight-sided container and level change | Use a narrow container for easier reading and less rounding error. |
| Before / after reading | After volume - before volume | Graduated cup or cylinder | Works well when the mold or insert fits safely in the vessel. |
| Material | Typical Density | Common Loss | Typical Use |
|---|---|---|---|
| Tin cure silicone | 1.12 g/mL | 5% to 10% | Flexible molds, plugs, and small shop fixtures |
| Platinum silicone | 1.15 g/mL | 5% to 10% | Precise molds, food-safe systems when rated |
| Epoxy casting resin | 1.10 g/mL | 3% to 8% | Clear castings, blocks, coasters, and inserts |
| Urethane resin | 1.08 g/mL | 5% to 12% | Fast prototypes, props, shells, and fixtures |
| Casting plaster | 1.55 g/mL | 5% to 12% | Relief tiles, models, and open face molds |
| Fine concrete mix | 2.20 g/mL | 8% to 18% | Pavers, inserts, and small cement castings |
| Project Type | Starting Shape | Loss Range | Volume Check |
|---|---|---|---|
| Coaster tray | Cylinder or box | 3% to 6% | Confirm each cavity depth after leveling the mold. |
| Relief tile | Irregular measured | 6% to 12% | Use a water test if deep texture changes the average depth. |
| Candle or soap mold | Cylinder or box | 4% to 10% | Measure to the intended fill line, not the brim. |
| Cored gasket | Ring / tube | 5% to 10% | Check the core diameter after release coating or tape buildup. |
| Prop casting | Irregular or readings | 8% to 15% | Add sprues, vents, and overflow cups before pour loss. |
| Concrete insert | Box or irregular | 10% to 18% | Account for texture, vibration loss, and scrape-off. |
Calculating the volume of material that will be poured into an mold is a critical aspect of the process. Running out of material during the pouring of materials can cause various problem. It is possible that you will end up with an incomplete mold or a failed casting.
Many people will attempt to calculate the volume of the material by looking at the mold. This isnt an accurate calculation of the volume of material require to fill the mold. In order to ensure that there is enough material to fill the mold, the cook must calculate the volume of the material.
How to Calculate the Material Needed for a Mold
The first step in calculating the volume of material that is required to fill a mold is to determine the shape of the mold. For rectangular molds, you must measure the interior dimensions of the mold. If you measure the exterior dimensions of the mold, the amount of material that will be poured will be too much for the mold cavity.
For round molds, the radius of the mold and the height of the mold determines the volume. Round molds requires care when pouring materials because small changes in the diameter of the mold will have a more larger impact on the volume of materials that are poured into the mold then small changes in the height of the mold. For molds of irregular shapes, it is more difficultly to measure the mold with rulers.
Irregular molds can also create mistakes when measuring the mold to determine the volume of material. One way of measuring the volume of an irregular mold is to use the water test. In this instance, the user fills the mold with water and pours it into a graduated cylinder to determine the volume.
Another way is to use the displacement method, where the object is submerged into a volume of water to measure the displacement of the water by the object. The displacement method can be used to determine the volume of an irregular object or mold. Other factors that must be accounted for when calculating the volume of materials that will be poured into a mold is the displacement of objects within the mold.
If an object is place within the mold before the pouring of materials, the object will displace some of the pouring of materials. You must subtract the volume of the object from the total volume of the mold to ensure that there is not too much material poured into the mold. Additionally, you must also account for the volume of the sprue and vents that are present within the mold in the calculation.
Vents allow for air to escape from the mold and the sprue is where the material is poured into the mold. Another aspect of the calculation is the loss of material that occur when pouring the materials into the mold. Loss of material includes the material that remains in the mixing bucket or on the stir stick.
Material can also be lost when trimming material from the top of the casting. In these instances, it is better to add some extra material to the total volume calculation than to have to little material poured into the mold. The volume of the material must be converted into a weight.
The weight of the material is different than the volume of the material because the density of the material will determine its weight. For instance, a volume of concrete is going to weigh more than the same volume of urethane resin because concrete is denser than urethane resin. In order to find the weight of the material, you must use the density of the material.
Finally, you must divide the weight of the material according to the mix ratio of the materials. Most materials will be two-part materials with a specific weight ratio of part A to part B. You should mixed the two-part materials by weight rather than volume. Measuring materials by volume isnt as accurate as measuring materials by weight.
Volume can be measured inaccurately by measuring the amount of bubbles in the material or the way that the liquid adhere to the side of the container. However, the weight of the material will be accurate if you measure the material on a scale. Using the incorrect weight of part A and part B can cause the material to have a tacky surface or to be brittle.
In order for the material to properly cure, the weight and volume of each part of the material must be calculated and accounted for.
