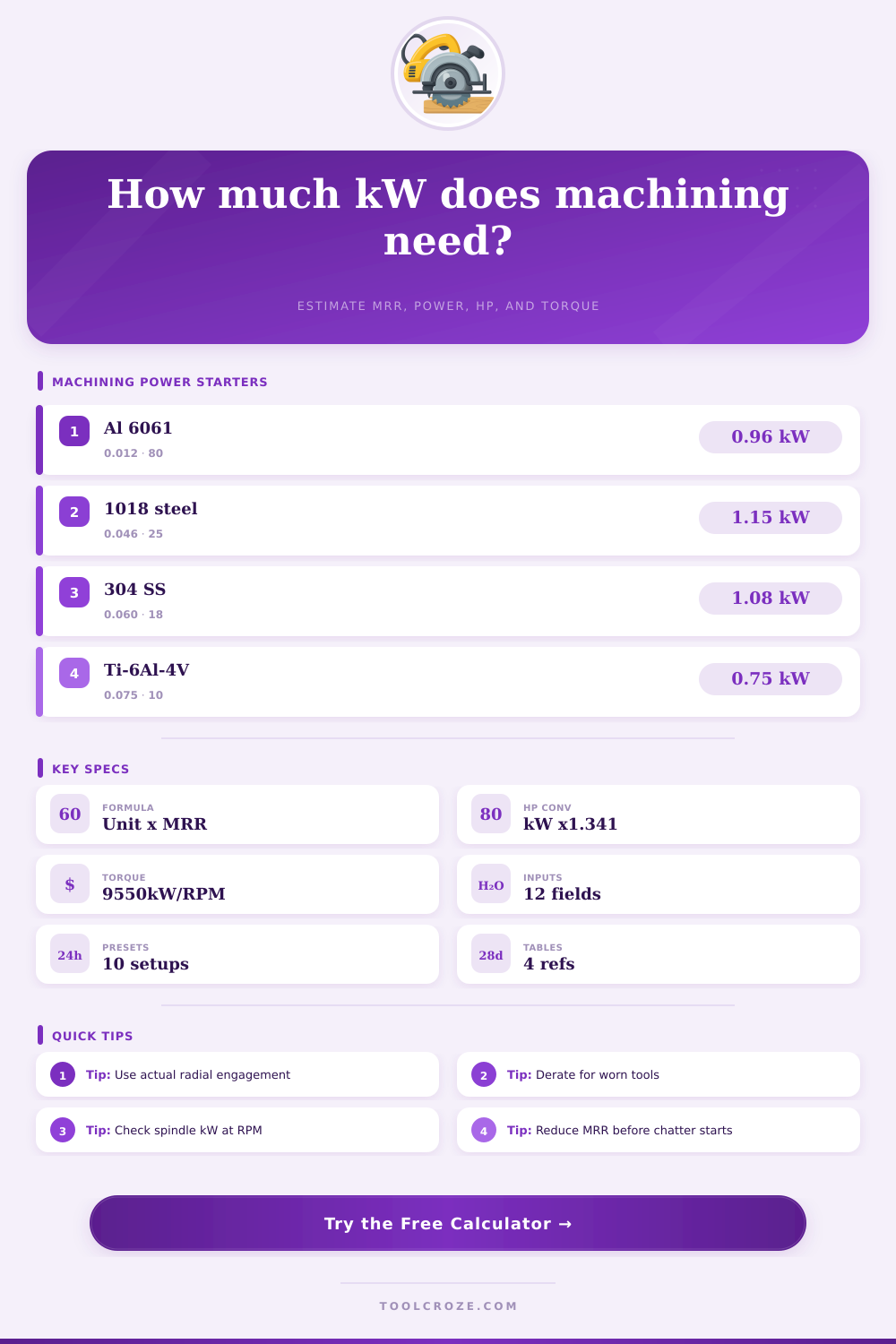

Machining Power Requirement kW Calculator
Estimate material removal rate, cutter power, spindle input kW, horsepower, torque, and load margin for milling, drilling, and turning cuts.
01Named shop presets
02Cut and machine inputs
Calculation breakdown
03Selected material and setup grid
04Material unit power reference
| Material | Unit power kW/cm3/min | Approx HP/in3/min | Carbide speed note |
|---|---|---|---|
| 6061 aluminum | 0.010 to 0.014 | 0.22 to 0.31 | 500 to 900 SFM |
| C360 brass | 0.012 to 0.018 | 0.26 to 0.40 | 400 to 800 SFM |
| 1018 mild steel | 0.040 to 0.052 | 0.88 to 1.14 | 250 to 450 SFM |
| 4140 alloy steel | 0.052 to 0.066 | 1.14 to 1.45 | 180 to 320 SFM |
| 304 stainless | 0.055 to 0.070 | 1.21 to 1.54 | 120 to 260 SFM |
| Ti-6Al-4V | 0.070 to 0.090 | 1.54 to 1.98 | 80 to 180 SFM |
05MRR formulas used by the calculator
| Operation | Metric formula | Inputs used | Power formula |
|---|---|---|---|
| Slot milling | WOC x DOC x feed / 1000 | Width, depth, feed | Unit power x MRR |
| Side milling | WOC x DOC x feed / 1000 | Radial width, axial depth | Then engagement factor |
| Face milling | WOC x DOC x feed / 1000 | Path width and depth | Then safety allowance |
| Drilling | 0.7854 x D2 x feed / 1000 | Drill diameter, feed | Same unit power method |
| OD turning | 0.7854 x (D2 - d2) x feed / 1000 | Start OD, radial DOC | Same unit power method |
06Feed and flute starter table
| Setup | Flutes or lips | Starter chip load | Practical note |
|---|---|---|---|
| 1/2 in carbide end mill in aluminum | 3 | 0.035 to 0.075 mm/tooth | Use chip evacuation |
| 3/8 in carbide end mill in steel | 4 | 0.020 to 0.045 mm/tooth | Watch deflection |
| Face mill in cast iron | 5 to 8 | 0.08 to 0.18 mm/tooth | Dry cutting is common |
| Twist drill in alloy steel | 2 lips | 0.05 to 0.18 mm/rev total | Peck if chips pack |
| OD turning steel | Single point | 0.10 to 0.35 mm/rev | Check insert grade |
07Spindle limit and conversion reference
| Reference | Formula | Example | Meaning |
|---|---|---|---|
| Horsepower | HP = kW x 1.341 | 3 kW = 4.02 HP | Motor power conversion |
| Torque | N m = 9550 x kW / RPM | 3 kW at 3000 = 9.55 N m | Output twist at speed |
| Input power | Input kW = cutter kW / efficiency | 2 kW / 0.85 = 2.35 | Motor demand estimate |
| Load percent | Input kW / limit x 100 | 2.35 / 3 = 78% | Spindle capacity used |
08Machining tips
This is a calculator for machining power requirements. It calculates the cutting load based off Material Removal Rate (MRR) and Unit Power. It translates to torque, horsepower, spindle input, and machine capacity margin.
At the heart of any good machining operation are calculating how much power you need. If you feed too much for the spindle’s output, the machine bogs down. You might wreck some tooling and maybe even cause an expensive crash. Many shops depend on old notes and vague rules of thumb. The pros is separated from the wannabes by converting machine limits, tool geometry, and material behavior into one solid number. This is done before sending it to a machine’s control.
How to Calculate Machining Power
So where do you start? With the material. Each alloy eliminates volume at varying costs in power. For instance aluminum slides away from the edge with virtually no resistance. No wonder you are able to push an aggressive feed and remain on the low side of a couple of kilowatts. On the other hand, stainless or titanium requires five or six times as much energy to eliminate the same cubic centimeter. Why? It comes from shear strength, work hardening, and heat that stays in cutting zone. This happens because of heat remaining in the cutting zone, work hardening, and sheer strength. These facts gets fed into the calculator’s unit power value.
Unit power is the value representing how many kilowatts is required to shear one cubic centimeter per minute. Pick the wrong value here and every downstream number will be off.
Now for the part you’re taking off. Shape and movement affect how fast material are removed. Wider cuts, deeper passes, and faster feeds all multiply the material removal rate. Increasing any one of those multiplies the load. Shape also plays into it. If I’m making a slotting cut, I have full tool immersion. That produces constant load and heat trapping. Making a shallow side pass with very little radial engagement will let me double my feed rate without significantly upping power.
Knowing this will help you avoid trying to keep the machine “safe” by starving the chip. Doing so usually results in shorter tool life different than a careful power increase would of.
Another wrinkle is spindle speed. The same kilowatts at 8000 rpm produce far less torque then they do at 800 rpm. Milling that alloy at high speed doesn’t feel anything like low-speed roughing with a lathe. Your selected rpm becomes torque on the calculator. Use this number to determine if your machine has enough twist to get the job done at the cutter. It also shows final input power versus the spindle limit you input. That provides an immediate read on how close you are riding the edge.
Safety and efficiency matter. No drive system transfer 100 percent of the motor’s output. Gears get hot; belts slip; bearings battle friction. And that tool might be like new today, but it worn out tomorrow. A small cushion for both helps keep the estimate honest (not optimistic).
Many experienced machinists use the calculated number as a starting line. Then, as they start into the cut, they’ll trim/push based on real-time spindle load meters.
The obvious mistakes is everywhere. Users use catalog-recommended feeds without checking radial engagement. Drill size is forgotten, and power scales by the square of diameter. Operators push for maximum material removal rates until chatter appears. Now what happened to tool life and surface finish? The master operators has one eye on the numbers and one eye on the cut. When power increases, they back off the width first. They maintain chip load and adjust rpm or depth if absolutely necessary.
So power requirement isn’t about reaching some magic number. Power requirement is about running the numbers, seeing what they say compared to what you feel and hear on machine. You’ll make a lot fewer guesses, and cut a whole lot more chips that pay the bills. The difference between the pros and everyone else is the quiet confidence they have when loading the spindle to seventy percent and sitting there smooth as ice.
