Maybe you’ve been in a house where you walk across floor and feel a slight but disturbing bounce. It is not a structural problem; the house doesn’t fall apart. But something feels off, and what you’re picking up is sense that the floor bends to much. This is DIY beam sizing’s dirty little secret.

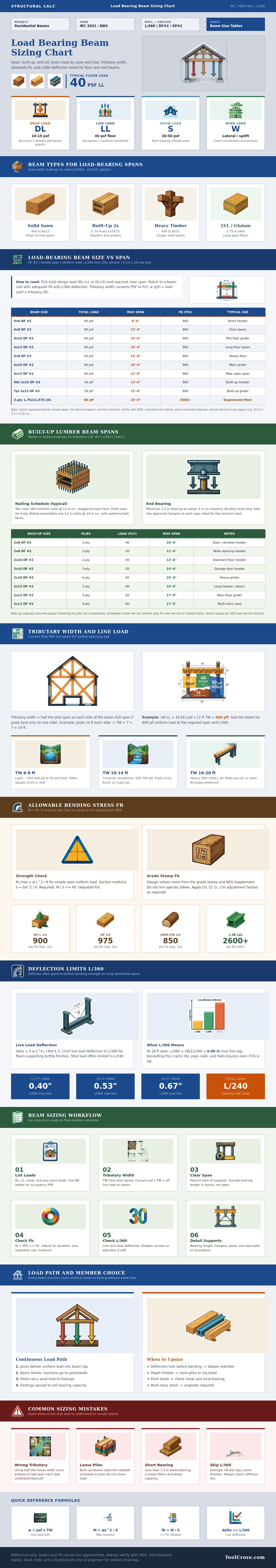

Homeowners obsess about weight-bearing capacity: Will the beam support my needs without snapping? They don’t ask if it can absorbs sagging. And the chart above explains why, it shows how the L/360 rule (which sets limits on how far beams are allowed to deflect) frequent determine the minimum-size beam long before its ability to bear bending loads matter. It is a subtle point, but a key one when it comes to having a solid or a bouncy floor.
How to Choose the Right Beam Size
Knowing tributary width is where real work starts. Tributary width is the section of the floor that dumps all its load onto your beam. Visualize the load path. If you were water coming off a roof, where would it go? It goes into gutter. The joists is like the rainwater, and the beam is like the gutter. Consider half the span of joists as width of the floor on either side of the beam. Now you know how much width your beam need to support.
Multiply this width by the floor load. For a typical residential building, the floor could be carrying up to 40 pounds per square foot of live load, and then dead loads from carpet, drywall and weight of joists themselves. That will give you line load (in pounds per linear foot). It’s not difficult math, but not doing this are the most common cause of undersized beams.
Now you’ve got your clear span and your line load; next up, the materials. The infographic lays out different types: engineered wood (LVL), dimensional lumber, and solid sawn lumber. A dimension four by twelve will be fine if you’re doing headers and shorter spans. But there’s a limit to how much strength a piece of wood has. Push past 20 feet, and now this thing is really huge. It is also realy expensive.
Enter built-up beams. Take several two by tens, nail them together, and you get yourself a stronger, deeper member. The trick is how you fasten. Staggered nails and right bolts at the right intervals means those plies act like one single beam. Otherwise, they’ll slip on each other and not become a beam at all, just a pile of separate board. The connection make it work.
Another option is engineered lumber. LVL beams, specifically, are super strong and consistent. As chart indicates, a simple two-ply LVL can bridge spans that would call for a huge section of timber when using traditional lumber. They also is more expensive initially, but eliminate the need to add interior support posts to a space. It’s a compromise between dollars spent on materials versus open architecture. More engineering = fewer support posts = greater sight lines and square footage.
Check your bearing conditions. Make sure the beam has three inches of support on masonry or one and a half inches on wood. Don’t simply rest the beam on the top edge of anything, the wood fibers must be able to compress and spread out the load.
Remember: These charts aren’t engineering drawings; they’re only a starting point. Think about any odd conditions on your site. Think about very heavy floors or heavy stone flooring. Think about weight of multiple stories stacking up. You should of thought about this early.
You want a floor that doesn’t just technically hold the weight, but feels solid when you walk on it. Call in a pro for a look-see if you have any of these conditions.
If you start here: Don’t skimp on the connections. Respect deflection limits. Start with loads.
