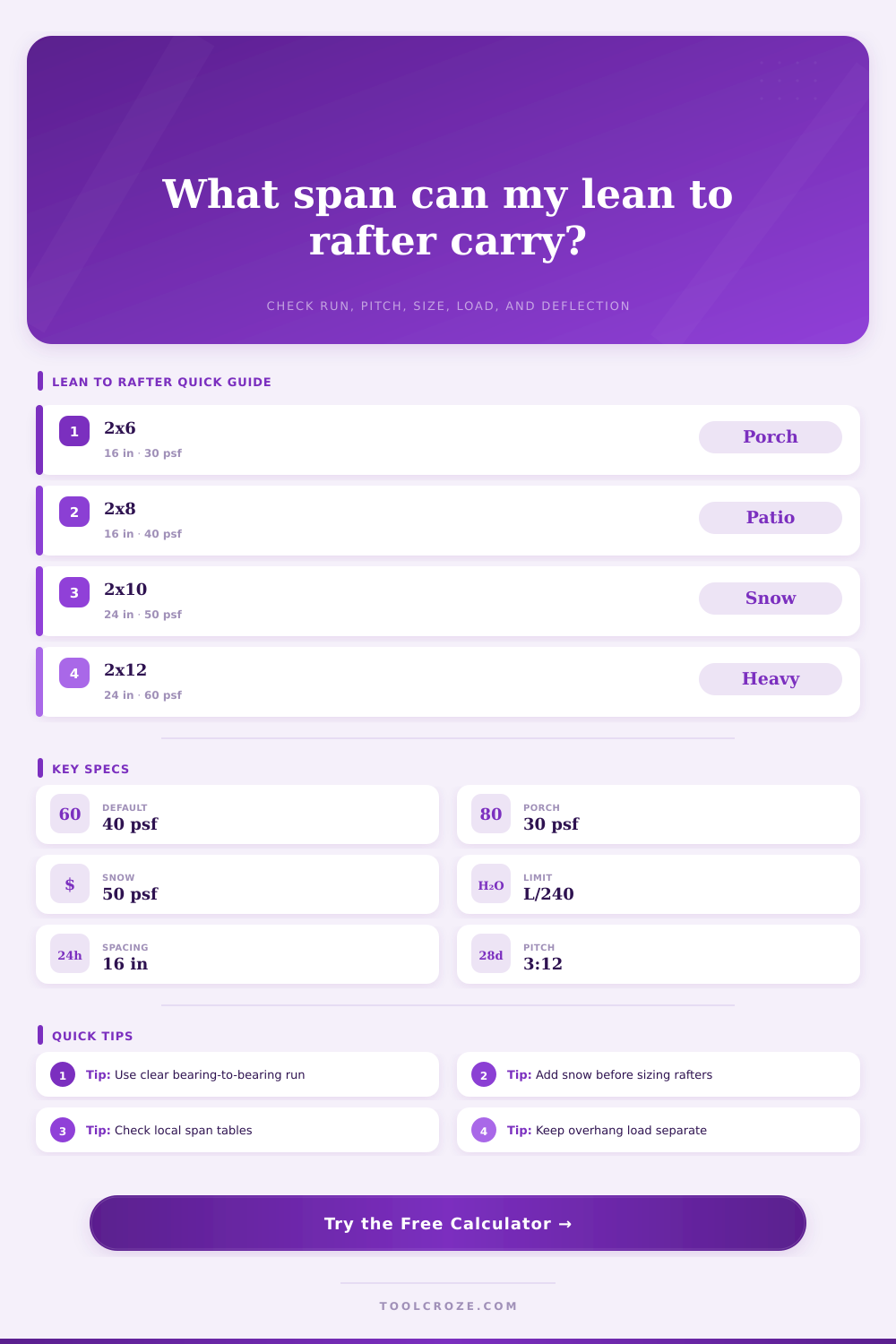

Lean To Roof Rafter Span Calculator

The way you begin: You’ve got this vision in mind, the expanded storage, the covered porch, whatever it might be. And then you run into the variable wall that realy supports it all. Can those rafters is spaced at X distance? If there’s more weight from the snow load than anticipated, what then? A lot of times it’s knowing your span limits prior to cutting the first board that make the difference between a strong addition and a roof that sags.

But it isn’t simply grabbing whatever lumber are on the pile. It’s matching the wood to the demands your building will have. To make this easier on you, there’s a tool to do all the math for you (entering your roof size and your expected loads), so you don’t have to mess around guessing at conversions and coefficients. However, you also need to know what you’re putting in.

How to Choose the Right Rafters

First, let’s start with the run. It’s the distance along the horizontal plane from the front edge of support beam to where it meet the ledger board fastened to your main wall. Structural tables reference the horizontal measurement rather then the length of the sloping rafter, which is what many folks think to measure. When you combine that run with the pitch, the tool will calculate the actual cut length.

Low-slope roofs is typically found on lean-tos, where the rise is only two to four inches for each dozen inches of run. It is a modest little roof until snow accumulates on it, then it becomes a serious weight issue. Most amateurs make a mistake by assuming their wood has enough strength. There are two things to worry about: dead load (the weight of the wood itself, as well as the sheathing and roofing material) and live load (people walking on the roof for maintenance or snow). Installing solar panels or heavy clay tiles will makes that dead load skyrocket. The calculator lets you separate those numbers so it can compare the total value with the rafter’s capacity.

A 2×6 may be fine if you’re going with a light metal roof, but throw some asphalt shingles and ceiling insulation on top, and suddenly that same span is pushing it. That’s where people go off track. They size for the frame, not the finish.

Then there’s spacing. With typical framing, the distance from one rafter to the next is sixteen inches on center. Double that to twenty-four inches and now every single rafter have twice the load to bear. You’ll have fewer rafters, so maybe you’ll save some wood, but to make up for it, you’re going to need deeper and/or stronger members. The table at the bottom of page spells it out. As the load goes up, the span goes down. So it’s a balance of cost (of materials) vs. It is a matter of how deep the structure is. In heavy-snow areas, sticking with more tight spacing and regular lumber is frequently less expensive than purchasing giant beams for wider spacing.

Overhang? Remember the overhang. It looks cool, that extra foot (or two) extending beyond the front beam. But it also acts like a lever, attempting to pry the rafter up off its supports in a wind event. The tool takes this cantilever effect into account based off the main span. It is a small thing. It is a big deal when it comes to long term durability.

And lastly, there are deflection limits. Nothing feels safer than a roof that doesn’t bounce under load. Plus, brittle roofing materials can suffer cracks, and drywall can tear up. Set a tighter limit in the calculator. You’ll get a roof that is stronger and stiffer.

What are those forces? Framing is all about controlling unseen forces. The stress is hidden by the wood until it’s too late to correct it inexpensivly. Running these numbers early transforms guesswork into a plan. Instead of fretting over whether the ridge will sag, your mind focuses on getting the layout right. That confidence is worth the ten minutes inputting the numbers. It changes a risky DIY project into a calculated build that you should of planned for.
