Lag Screw Weight Calculator
Estimate weight for loose lag screws, job packs, and full boxes using diameter, length, count, steel density, head style, thread reduction, coating factor, and box tare.
⚙ Lag screw presets
📏 Screw and box inputs
🧮 Live geometry grid

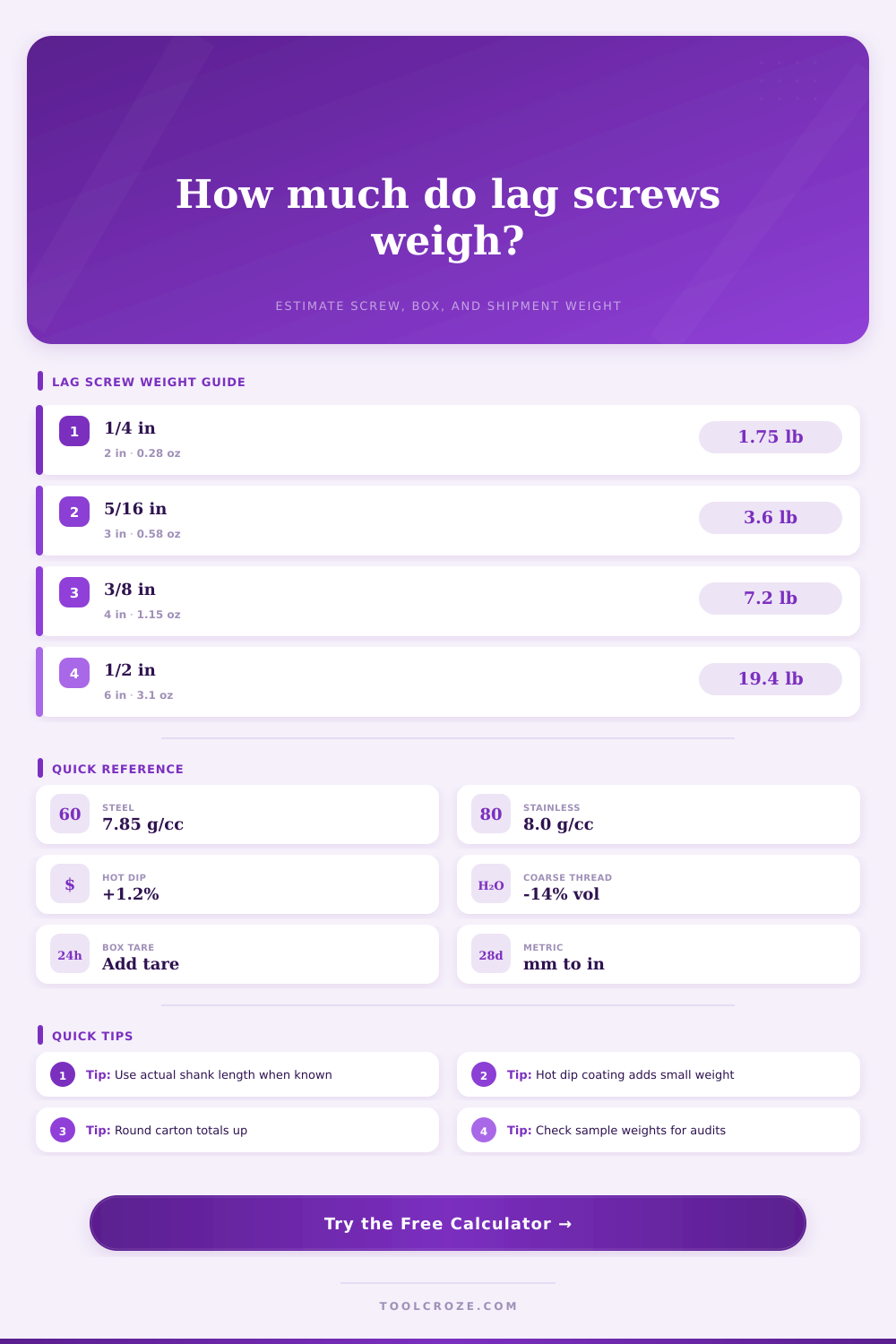

📊 Diameter reference weights
| Nominal size | Diameter mm | Typical thread reduction | Approx each weight |
|---|---|---|---|
| 1/4 in x 2 in | 6.35 | 12% to 15% | 0.25 to 0.32 oz |
| 5/16 in x 3 in | 7.94 | 12% to 15% | 0.50 to 0.68 oz |
| 3/8 in x 4 in | 9.53 | 12% to 16% | 0.95 to 1.25 oz |
| 7/16 in x 5 in | 11.11 | 12% to 16% | 1.75 to 2.25 oz |
| 1/2 in x 6 in | 12.70 | 12% to 17% | 2.70 to 3.45 oz |
| 5/8 in x 8 in | 15.88 | 13% to 18% | 6.2 to 8.1 oz |
🔩 Head style approximation table
| Head style | Model used | Volume factor | Best use |
|---|---|---|---|
| Hex lag head | Hex prism | 0.66 x d3 | Common lag screws |
| Square head | Square prism | 1.13 x d3 | Older hardware |
| Washer head | Wide cylinder | 0.79 x d3 | Structural plates |
| Flat countersunk | Short cone blend | 0.45 x d3 | Flush seating |
| No head | Threaded cylinder | 0.00 x d3 | Rod estimates |
🧱 Material and coating factors
| Material or finish | Density or factor | Weight effect | Calculator setting |
|---|---|---|---|
| Carbon steel | 7.85 g/cc | Baseline | Default density |
| Stainless steel | 8.00 g/cc | About 2% heavier | Stainless density |
| Silicon bronze | 8.80 g/cc | About 12% heavier | Bronze density |
| Zinc plated | 1.003 factor | Small increase | Zinc coating |
| Hot dip galvanized | 1.012 factor | Visible increase | Hot dip coating |
| Polymer coated | 1.006 factor | Light coating | Polymer coating |
📦 Box planning table
| Pack type | Typical count | Suggested tare | Planning note |
|---|---|---|---|
| Small parts bag | 10 to 25 | 0.02 to 0.08 lb | Use exact bag weight |
| Plastic jar | 50 to 100 | 0.15 to 0.35 lb | Add lid and label |
| Corrugated box | 100 to 250 | 0.30 to 0.90 lb | Include dividers |
| Bulk carton | 500 to 1000 | 1.2 to 3.5 lb | Check lift limits |
| Pallet case | 1000 plus | 5 lb plus | Add pallet share |
💡 Practical calculation tips
The point of calculating lag screw weight is to understand exactly what you’re purchasing: how heavy is it? Will I be able to lift this? How much am I going to hurt my shoulder while loading all this stuff? Is the weight on my shipping manifest correct?
Until you’ve tried to lift a box you cannot carry, most folks don’t bother with fastener weights. With the calculator above, you don’t have to, it do the math for you so that you know how heavy things are in real terms before you pick up a jar.
Why You Should Calculate Lag Screw Weight
This isn’t just about getting them into the back of the truck; this is about knowing the density of what you’re carrying instead of making an educated guess from volume alone. But a screw isn’t a solid piece of metal. It’s a shank, head, and thread set cut from a piece of cylindrical stock. When we considers a lag screw as a solid piece of metal, we’re going to greatly overestimate its weight. That’s because there’s no longer any metal where the threads sits. The threads shave away some of the metal volume that was previous adding to the overall weight. Coarse-pitch threads shave away more metal then fine-pitch ones do. And if your screw has a thread pitch, you’ll want to subtract that lost volume accordingly. To make up for this, the tool allows you to change amount of metal lost in thread reduction.
Regular lag screws typically loses between 10-16% of their volume in thread reduction. This small detail make a big difference in the end result and impacts how much you pay when buying in bulk.
Weight is another factor that is influenced by head shape. A square head is heavier then a flat countersunk head as there is more volume of metal. A washer head falls in between. These shape differences is accounted for in the calculator via volume factors depending on the shape you choose. You don’t need to be an engineer to see that a large hex head is more substantial than one with a slimmer profile. So it weighs more, and if you’re working with hundreds of them, that added weight piles up fast. Using a different type of lag instead of a square head for the same job will change your total load weight. And that changes how you handle and ship thing.
The other variable is the material. The baseline is carbon steel. It’s dense and reliable. Stainless steel is more dense due to the inclusion of nickel and chromium. It has more mass. Then there’s silicon bronze. It is even denser and typically found in marine applications. You wouldn’t necessarily consider material selection, but that can change weight between two and twelve percent. It is not a rounding error. It is a true material mass difference. By choosing a density in the tool, you are telling it exactly how many cubic centimeters each gram of metal occupies. This ensures the resulting weight is based off the material rather than the form.
Then there’s the added weight of the coatings. A hot dip galvanized screw gets a heavy coat of zinc that adds some ounces. A polymer coated screw has a thin coat and is lightweight. Zinc plating add a negligible amount of weight. The weights of these finishes are included in the calculator as well so that you don’t need to guess if that shiny finish is something or nothing. It doesn’t seem like much…but it does matter when you’re double checking your delivery and find the box isn’t as heavy as it should of been. Maybe you got a different coat that was lighter than ordered?
And don’t overlook the box. If you want to calculate accurately you need to take into account its tare weight. These include boxes made of cardboard or plastic, dividers, labels, and even a plastic jar. All of it weigh something that isn’t a screw. To make it clear, check table of reference values on the page. It lists average tare weights for various package configurations. Factor in a safety margin for handling, and there’s your gross weight estimate. What you’re going to actualy haul. This is what you are planning for, rather than the theoretical weight of bare metal. No surprises.
To avoid spending money (and stressing your back) it pays to plan ahead. Before you’re committed to anything, whether you need a connector for shipping timber beams or a framework of decking, find out how much it weigh. This takes guessing out of the equation. Next time the forklift guy wants to know if you can manage that load, you’ll have your answer ready.
