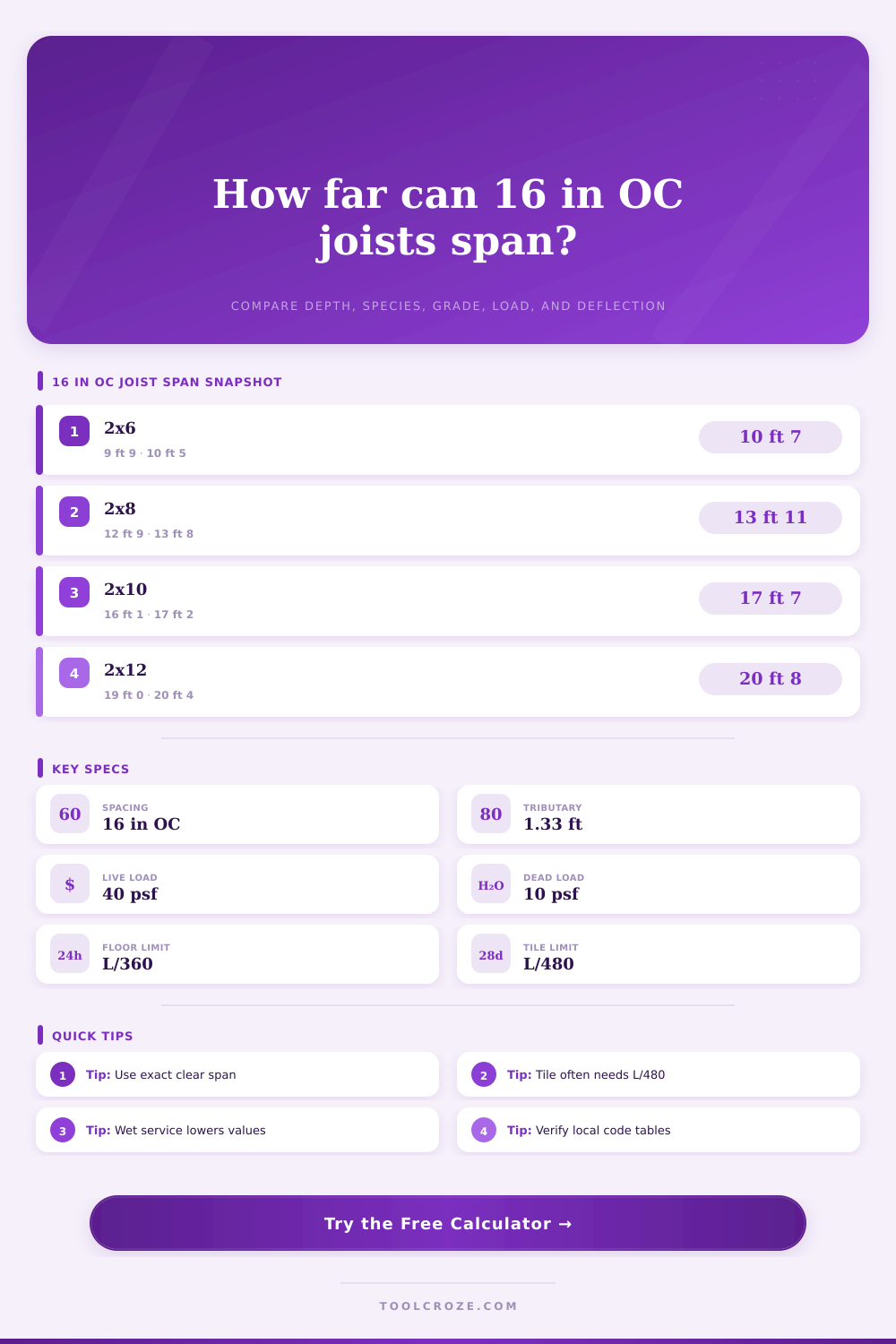

16 On Center Joist Calculator Span Tables

Here’s the deal: You’re standing in an empty room, holding a pile of lumber in one hand and a tape measure in the other, wondering if these joists is really going to support floor. In this moment, intuition is often useless; physics never consults gut feelings. Enter span tables, which take complicated engineering ideas and convert them into a basic measurement (distance) so that you don’t have to guess whether your floor might sag by next winter. This website’s span table calculator uses deflection, depth, load, species and grade checks to transform that uncertainty into a clear yes/no answer regarding how well 16-inch on-center joist span will perform.

You need to know: Wood’s not all the same. Even two pieces that appear similar on hardware store shelf will behave differently, Southern pine won’t act like Spruce-Pine-Fir. That’s where the reference table on the page come in. It clearly shows how both grade and species affects the maximum allowable span. Because the modulus of elasticity is different for Hem-Fir vs. Douglas Fir-Larch, for example, a piece of DF-L can span a little farther than a piece of Hem-Fir at an equal depth. Why? Because stiffer wood resist bending better, so you can stretch further across a wider gap before you exceeds the deflection limit. It may seem like a small detail, but it makes a big difference in how complicated (and thus costly) your framing lay-out needs to be.

Why Span Tables Are Important for Strong Floors

The same principles apply when calculating beam size. When using dimension lumber, width is less important than depth. That 2×10 will be dramatically stronger than a 2×8 because it contains more wood… Yes, but also because that extra depth shifts the material away from the neutral axis (a geometric advantage). As it gets taller it become exponentially stronger. If you’re thinking about creating an open floor plan or a large great room where there would be a long span between two adult-sized sofa, upgrading to a 2×12 may allow you to avoid installing secondary support beams down the middle of the area. Less obstructions under foot = more freedom with how you can decorate inside.

Many DIYers gets confused about the terms “dead load” and “live load,” but it’s simple if you just define the difference. Dead load refers to whatever the floor will carry all the time: the joists themselves, plus any drywall on the ceiling underneath, and the weight of the subfloor and the finish flooring. That never changes. What does change is live load: a bathtub full of water, someone walking across it, some furnitures moved around, a piano being played. For normal residential codes, live loads are frequently assumed to be 40 pounds per square foot in areas where people live. If you’re going to store big appliances or a library-full of books, that figure increase. Plug those figures into the tool, which does the math for you, ensuring the joist doesn’t bend or shear and fail under the combined stress.

Real comfort comes from deflection limits. Sure, the floor may be strong enough not to break when you walk on it, but if it’s bouncing like a trampoline… it’s still a bad floor. So there are codes: they say things like L/360 (which is what normal flooring requires) and L/480 (which is what tile or stone installs require). The reason is because tile is brittle. When the joist move too much, then the tile cracks. You can save some money by having really shallow joists that barely meet code strength requirements… and you’ll have a bouncy floor which unsets your guests and ruins your luxurios finishes. Oversizing for stiffness is better than undersizing for cost. You should of known that.

There’s also the issue of spacing. Typically, we build at 16 inches on center. This is the perfect balance between using as little material as possible while keeping our structures structurally sound. If we go to 24-inch centers, for example, we’ll save a bit of lumber. However, we’ll also create a much heavier load for every single joist to bear. We frequently have to beef up beams or dig deeper. Floors that want to be solid underfoot don’t usually compute when you space them out too much.

In all, constructing a home is a way of controlling these unseen forces. The bending moment, the shear stress, they’re not visible, yet when you mess up on one, you see what happens. Understand deflection limits, load types, and material stiffness, then check the span tables to make sure your floor stays flat, quiet, and safe. I’m glad I took the extra few minutes to measure twice. It’s peace of mind.
