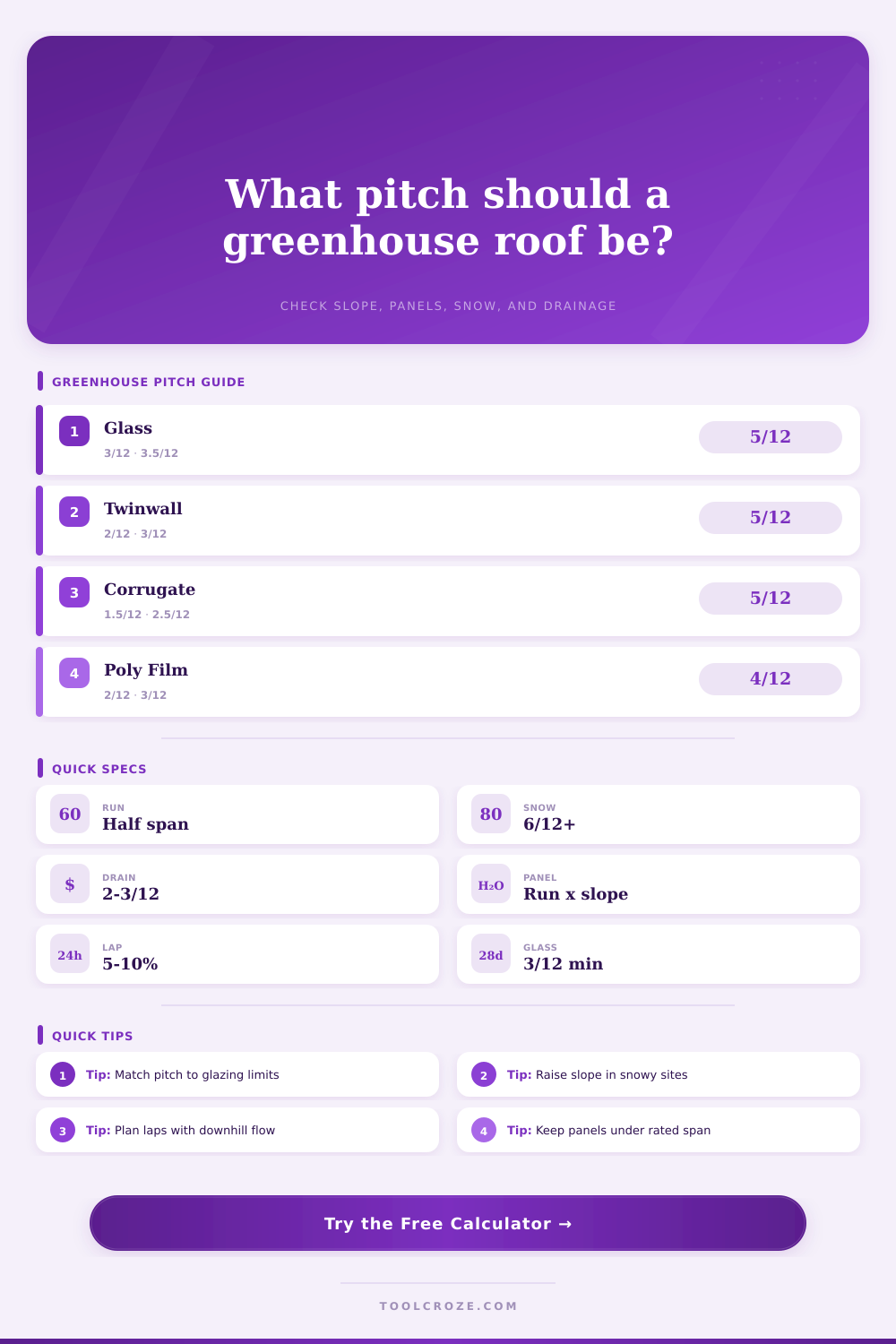

Greenhouse Roof Pitch Calculator
Estimate greenhouse roof pitch for glazing drainage, snow shedding, ridge height, sloped panel length, roof area, and condensation flow.
✦Greenhouse presets
⚙Roof and glazing inputs
✓Pitch results
▣Planning snapshot
ℹGreenhouse roof references
| Glazing material | Drainage minimum | Condensation target | Practical note |
|---|---|---|---|
| Tempered glass panels | 3/12 | 3.5/12 or steeper | Steeper slopes help water clear glass laps and bars. |
| Twinwall polycarbonate | 2/12 | 3/12 or steeper | Keep flutes running downhill toward the drain edge. |
| Corrugated polycarbonate | 1.5/12 | 2.5/12 or steeper | Corrugations shed rain well when laps follow slope. |
| Polyethylene film | 2/12 | 3/12 or steeper | Avoid flat pockets that sag and collect cold water. |
| Acrylic sheet | 3/12 | 4/12 or steeper | More pitch reduces staining and standing moisture. |
| Fiberglass panels | 2.5/12 | 3.5/12 or steeper | Follow panel lap and fastener spacing limits. |
| Snow condition | Ground load guide | Suggested pitch | Greenhouse caution |
|---|---|---|---|
| Warm or no snow | 0-10 psf | 3/12 | Drainage usually controls the pitch. |
| Light seasonal snow | 10-20 psf | 4/12 | Plan for occasional sliding at eaves. |
| Moderate snow belt | 20-35 psf | 5/12 | Check purlin spacing and glazing load ratings. |
| Heavy snow area | 35-50 psf | 6/12 | Add interior bracing or engineered frames. |
| Alpine or drifting | 50+ psf | 8/12+ | Engineering review is strongly recommended. |
| Preset type | Common span | Typical pitch | Main design driver |
|---|---|---|---|
| Backyard twinwall gable | 8-14 ft | 4/12 to 6/12 | Balanced height, drainage, and panel length. |
| Lean-to greenhouse | 6-12 ft | 3/12 to 5/12 | High wall clearance and condensate control. |
| Glass conservatory | 10-18 ft | 4/12 to 7/12 | Glass lap drainage and snow slide safety. |
| Production gutter bay | 18-30 ft | 3/12 to 5/12 | Repeatable panels and controlled gutter flow. |
| High-rain orchid house | 10-16 ft | 5/12 to 7/12 | Fast runoff and persistent condensation. |
| Roof layout | Run formula | Rise formula | Panel length formula |
|---|---|---|---|
| Freestanding gable | Span / 2 + overhang | Run x pitch / 12 | Square root of run squared plus rise squared |
| Lean-to single slope | Full span + overhang | Run x pitch / 12 | Sloped length plus lap allowance |
| Roof area | Sloped length x house length | Times roof planes | Add trim and lap allowance |
| Panel count | Length / usable width | Panel length / max panel | Rows x runs x roof planes |
✨Pitch planning tips
Draw the plan, choose the plants, erect the walls. Sketch in the base, then add the roof, and now it is all about geometry. A greenhouse isn’t a glorified shed with panes of glass; it’s a climate machine where light, heat and water are all managed by the force of gravity.
Too gentle a slope mean pooling rainwater and condensing drip back down onto your seedlings. Too severe a slope means battling the risk of snow slides (and the purchase of more framing material). Get that equation correct, and you have a thriving garden; or a leaky one.
How to Choose the Right Roof Slope for Your Greenhouse
Here’s the thing: If you don’t understand what makes these numbers tick, you’re going to make the wrong call. For example, begin with your glazing choice (see chart below). That’s No. 1. What about glass? It’s rigid; it’s slick. To allow rain to roll off and clear away from bars, glass requires a steeper pitch… Typically one in three, or three inches of rise per foot of run.
What about twinwall polycarbonate? Not the same. It’s got channels. Just enough slope to cause water flow down those channels and not pool is all that’s needed. The tool know the difference between materials and automatically adjusts its minimum required pitch accordingly.
Then there is the weather. In snowy regions, pitch isn’t just about water; it’s a matter of structure safety. Steepness is better because it lets snow slide off before building up enough to become deadly. But here’s the twist: The higher the roof, the longer glazing panels must be in order to cover that extra vertical space. Longer means you’ll have to cut them into horizontal seams, which are spots where heat leak out. So steep = safe-er but messier, as far as weather goes. That’s why the tool compares your desired pitch to what you can actualy order, showing you that trade-off.
Greenhouse crops can be harmed by condensation. When cool glazing meets warm, moist air from inside, condensation forms on the interior roof surface overnight. Because most roofs aren’t steep enough, that moisture remains suspended until daylight when it drop straight down onto plants. That stresses them and invites disease and rot.
Steeper slopes are required for high-humidity spaces (such as hydro set-ups or propagation rooms) compared than dry ones used seasonally. These condensation goals is explained clearly in the reference table on the page. Don’t skimp on slop to save some lumber if you’re growing thirsty things in a humid climate. The extra cost for better drainage are worth it.
Remember the run. For a gable roof, half of that span is the run. The greater the width of your greenhouse, the farther the sloping surface extend for a given pitch. Ten feet wide is doable. A twenty-foot width with an equivalent pitch mean substantially longer runs. This may require several runs of glazing and more material.
The calculator also includes your panel laps and eave overhangs. This gives you a realistic look at all glazing areas so you can budget to match before settling on a design.
There’s a lot of attention given to the height of the ridge. I want my building to be high so I can walk around in it. Or I want my building to be really high so I can grow tall tomato plant.” But that’s not how it works. Pitch and span determine height; they are like the sides of a triangle where you cannot have all three at once.
Pick two: Do you want your building to be very high? Then the pitch has to increase (and vice versa). Do you want to build it with less expensive materials (low pitch)? That means lower height. The constraints of reality force you to consider the physical possibilities of your space, and that’s what the tool does. Based off what you enter, it’ll calculate the resulting ridge height.
One final note: Make sure your pitch matches your local code. It’s only a guideline from the calculator; it’s not an engineer. Depending on how much snow your region gets, those numbers may be the bare minimum. For peace of mind, perhaps you’ll choose something steeper. Keep in mind though, the steeper you make it, the higher the snow load on your eaves, and the more wind resistance there will be.
Plan for it. Build for it. And then stand back and enjoy watching all the water run off, right where you wanted it to go.
