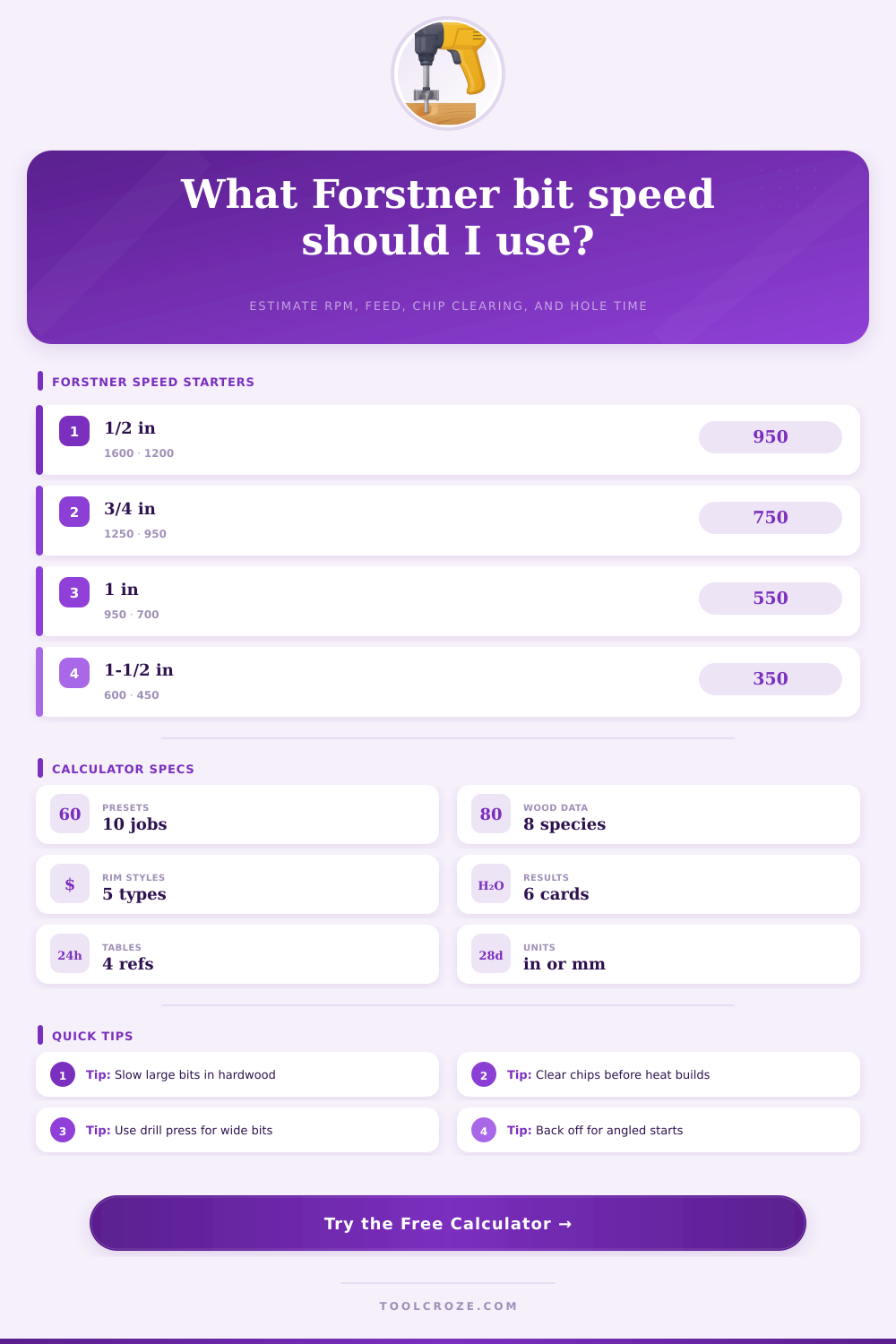

Forstner Bit Speed Calculator

The devil’s in the details, Forstner bits demonstrate this. You get everything lined up looking like it will be perfect and you begin drilling with confidence for that clean flat bottom hole. All of a sudden, you’re bogged down, edges is torn out, or you’ve got smoke coming off your bit. It’s nearly always about speed and feed. When you nail these two, then a Forstner bit becomes a precision tool rather than a blunt instrument.

Each variable also speaks to every other variable, which is where it gets tricky. The same bit work differently in pine vs. Cherry. Different cutters (a saw-tooth vs. A continuous-rim cutter) requires a different touch. Once you get beyond about one diameter deep, heat builds fast; depth count. If you’re holding a handheld drill and wrestling it into place, the “safe zone” is quite different than when you’ve got everything clamped solid onto a drill press. So having tool that combines all these factors can be helpful. It lets you know the trade-offs beforehand so you do not burn up the bit.

How to Use Forstner Bits Correctly

First, consider the diameter. The larger the bit, the greater its rim surface area touching the wood, so the more friction it generates and the hotter it gets. As a general rule, every additional quarter inch reduce your spindle speed noticeabley. Unless you take that into account, you’ll end up with burned edge or a bogged-down motor because every extra quarter inch usually costs you a noticeable drop in spindle speed.

Wood species also bumps up the numbers. Bamboo or hard maple push back; softwoods cut cleanly and clear their chips easy with little resistance. If you don’t ease off and shorten the gap between clearing them, those hard woods will turn the bit rim into a brake pad. Most folks treats all species the same, and when they burn through just three hole, they ask how to fix their “burned bit”.

The style of the rim make an important difference that many woodworkers are afraid to admit. While a continuous rim will trap heat as well as reduce tear-out, it only cuts depth after scoring a clean circle all around. Wavy and saw-tooth rims cut through the chips better and allow you to run just a little faster, but if you rush the entry, they will wander. Carbide versions shrug off abrasive sheet goods, but still require respect when side pressure enters the picture. The calculator combine these differences into its recommendations so you don’t have to keep a mental spreadsheet.

The secret multipliers are the drilling methods. With a clamp on a drill press, you get perfect alignment and constant pressure to let the bit cut as close to its theoretical max as possible. By hand, you has to force it at lower speed since control goes south quickly past about an inch and a quarter. Overlapping cuts or angled entries requires even more care, since the rim won’t engage uniformly. The tool factors all of this in, showing how even small changes in setup can change your safe RPM by a large amount.

There are two sides to every blade: how much you feed it and how often you clear out the chips. Overload the cutters and you create heat. It dulls the edge fast. Not enough pecks? Chips fill up the flutes, and what was a nice clean cut turns into a sanding job. With their outputs, they’ll recommend your feed rate and tell you how frequently you need to clear them out based off those precise inputs. They will also estimate how long the hole should of taken. This is useful if you are wondering if you can fit four hundred holes for shelf pins into your afternoon.

This doesn’t supersede judgment at the shop. Back off if you smell toast, or see dark-colored chips emerge, no matter what your calculator tells you. You can safely push a new sharp bit faster than a resin-laden tired bit. RPM is sometimes less important than clamping, dust extraction and backer boards. But getting a good starting point eliminate most of the guesswork.

Patience pays off better than horsepower with Forstner bits in the long run. Go slow on the spindle. Monitor that rim. Get those chips cleared when they gets hot. Then, you’ve got a hole with crisp edges and a glass-smooth finish. Suddenly that neat flat bottom you had been hoping for seems like no problem at all. That was the whole idea.
