Flat Roof Pitch Calculator

The roof is flat. No, you don’t call it that because the surface are actualy horizontal, you call it that because that’s where you stand. And no, there is no such things as true flat surfaces when we’re talking about roofing: Water must have somewhere to go. So if it can’t escape anywhere then it doesn’t. The idea isn’t to make your roof perfectly flat. The idea is to make your roof gently slope down towards a drain so that, by the time the storm stop, it will of emptied itself out.

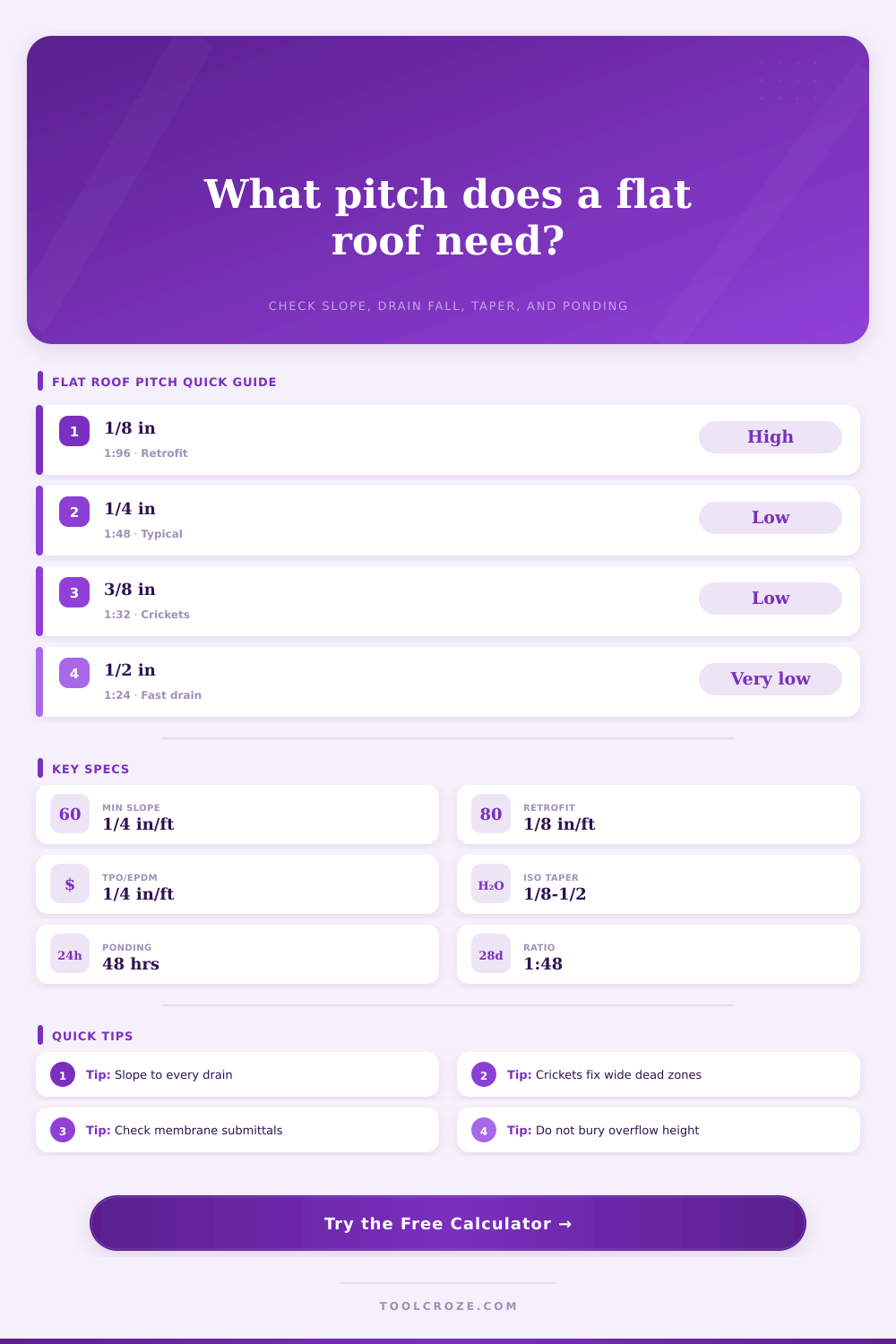

Typically, most low-slope roofs strives for one quarter inch of fall (elevation change) for every foot of horizontal distance. That sounds like hardly anything at all! But over a span of forty feet, that’s going to be ten inches of elevation difference between highest spot and the lowest. Get that right and your membrane may last twenty years. Ponding constantly? It’ll rot in five.

Why Your Flat Roof Needs a Slope

Once you plug in the roof dimensions and amount of rainfall, the calculator will shows you how much tapered insulation are needed to create that slope. It also helps you avoid varying the heights too much on either side of parapet. It will even evaluate your selected membrane material against industry minimums. For example, with TPO or EPDM, the system assume a minimum of a quarter inch per foot, otherwise stagnant water can set in. Stagnant water will trap heat. This will further damage plastic sheets and accelerate UV degradation.

One thing people tend to forget is how existing deck affects these calculations. Over time, concrete decks bends from structural loads and temperature changes cause warping. Even a brand-new steel building can sway under wind load. It may appear perfectly level today, but it may have dips and swells that defy your designs once the first heavy rain hit. Designing to zero tolerance of the imperfect won’t work because there will be ditches everywhere. Add a little field tolerance to account for this; that way, if someone cuts an insulation board too short or adhesive compress irregularly, the water still drains downhill instead of puddling at seams where leaks occur.

The process uses tapered insulation, the workhorse of it all. Essentially, you begin with very little thickness at the drain and then slowly add material as you go outward. That way there’s a slope but not much dead load being added to building. The table found on that page shows the effect of various slopes in terms of build-up height. Steeper slopes results in more height, which may conflict with parapet walls or door heights. For renovation projects on older buildings, you may have to live with a flatter profile. Saddles (or crickets) can be helpful in such instances. Small triangular ridges redirects water around the dead zone above a skylight or chimney. Think of them as breaking up larger flat areas into shorter runs for water to flow down.

It’s also all about drain size. You can have a perfectly pitched roof but if it rains as hard as it does here in a twenty-four hour period, and you don’t have enough drainage to get the water out, you’re going to be flooded anyway. Refer to your local code to see what the rainfall rate is for where you live. If you think the rate might be under-estimated, make plans for the water to overflow into other drainage paths. No matter how beautiful the house is, when a big hailstorm comes along with a clog of one leaf guard, that water has nowhere else to go but spill over onto lower levels and/or around primary drains via scuppers. Prevention is always less costly than fixing interior damage; redundantly plan your drains.

Water flows downhill: that’s how gravity works. Water is gonna fall, but we can direct it to keep roofs dry. Good slope helps protect the building, prolongs membrane life, and avoids expensive leaks. Plan carefully. Anticipate that things won’t be perfect. Design a clear path for each drop. Respecting physics instead of battling it means the roof will remain dry.
