Fiberglass Sheet Weight Calculator
Estimate cured fiberglass panel weight from sheet length, width, thickness, laminate density, glass and resin content, gelcoat allowance, quantity, and trimming waste.
⚙ Named Sheet Presets
📏 Sheet Inputs
Fiberglass Sheet Results
🧪 Fiberglass Material Grid
📊 Density and Content Tables

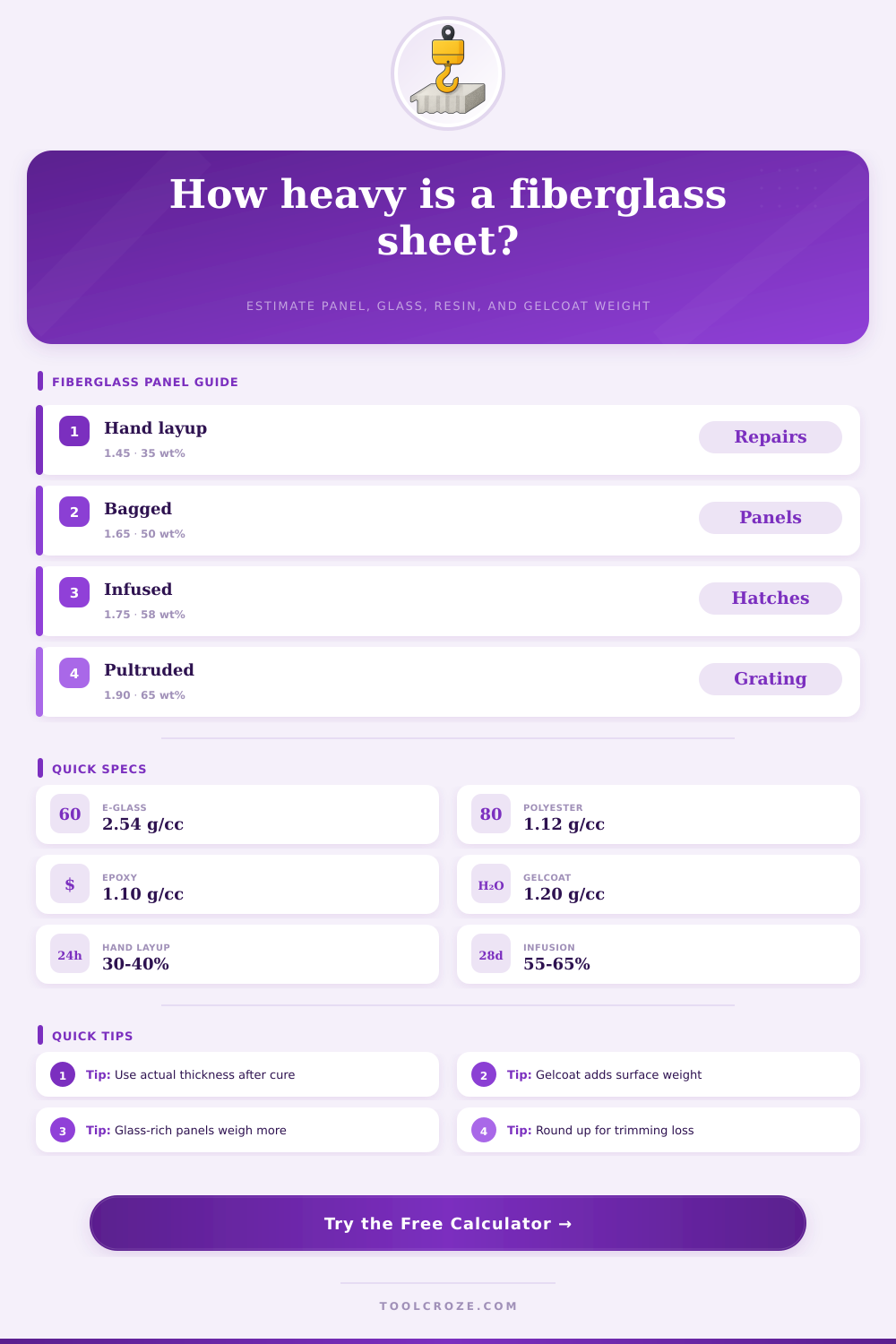

| Fiberglass Sheet Type | Typical Density | Glass Content | Planning Use |
|---|---|---|---|
| Hand layup general sheet | 1.35 to 1.55 g/cm³ | 30% to 40% | Repairs, covers, boat skins |
| Vacuum bagged sheet | 1.55 to 1.70 g/cm³ | 45% to 55% | Flat panels, hatches, light structures |
| Resin infused sheet | 1.65 to 1.80 g/cm³ | 55% to 65% | Controlled panels and mold skins |
| Pultruded FRP plate | 1.80 to 2.00 g/cm³ | 60% to 75% | Industrial plate and grating blanks |
| Chopped strand mat panel | 1.30 to 1.50 g/cm³ | 25% to 35% | Thick wet-out, molds, backing panels |
| Common Sheet Size | Nominal Thickness | Density Example | Approx Weight |
|---|---|---|---|
| 24 x 48 in panel | 1/8 in | 1.55 g/cm³ | 8.2 lb before gelcoat |
| 48 x 96 in sheet | 1/8 in | 1.55 g/cm³ | 32.7 lb before gelcoat |
| 48 x 96 in sheet | 1/4 in | 1.60 g/cm³ | 67.4 lb before gelcoat |
| 1220 x 2440 mm sheet | 3 mm | 1.55 g/cm³ | 13.8 kg before gelcoat |
| 1000 x 2000 mm plate | 6 mm | 1.80 g/cm³ | 21.6 kg before gelcoat |
| Surface Finish | Thickness Range | Density | Weight Note |
|---|---|---|---|
| Light gelcoat face | 12 to 16 mil | 1.15 to 1.25 g/cm³ | Use for cosmetic one-side panels |
| Standard gelcoat face | 18 to 24 mil | 1.15 to 1.25 g/cm³ | Common mold-sprayed allowance |
| Heavy tooling gelcoat | 25 to 35 mil | 1.20 to 1.35 g/cm³ | Used on tooling and mold faces |
| No gelcoat | 0 mil | Not added | Use for raw structural sheet weight |
💡 Weight Planning Tips
To calculates the weight of fiberglass panels, you need to understand how fiberglass is composed of glass fibers and plastic resins. The weight of the fiberglass panel is dependent upon the ratio of the glass fibers to the plastic resin in the panel. If a fiberglass panel contains more plastic resin than glass fibers, the weight of the fiberglass panel will be more higher in comparison to it’s strength.
If a fiberglass panel contains more glass fibers than plastic resin, the fiberglass panel will be lighter in comparison to its size and strength. The manufacturing process of the fiberglass panels determine the ratio of glass fibers to plastic resin in the panels. Processes like hand layup introduces more plastic resin into the fiberglass panel, making the panels heavier compared to panels with a higher amount of glass fibers.
How to Calculate the Weight of Fiberglass Panels
Processes like vacuum bagging and resin infusion removes some of the plastic resin from the fiberglass, leaving the panels with a higher percentage of glass fibers and resulting in lighter panels. Pultruded plates have a higher amount of glass fibers then other types of fiberglass panels, and have a high density in the panels. In addition to the fiberglass itself, you must also account for the weight of the gelcoat in the calculation of the weight of the panel.
The gelcoat is an layer of plastic applied to the surface of the fiberglass panels to protect the panels from the elements. The gelcoat dont contain glass fibers for reinforcement. If the fiberglass panels have a layer of gelcoat on both sides of the panel, the weight of the panels will increase significant.
Precision in measuring the weight of fiberglass panels is important. Small errors in the measurement of the thickness of the fiberglass panels can lead to significant errors in the total weight of the panels. You can use a digital caliper to measure the thickness of the fiberglass panels.
Small differences in the thickness of fiberglass panels can result in significant differences in the total weight of the panels. Additionally, trim waste and moisture absorption can play a role in the total weight of the fiberglass panels. Knowing the total weight of the fiberglass panels will allow for the planning of how to move the panels.
If the total weight is significant, it may be necessary to use a dolly or pallet to move the panels. If you know the total weight of the fiberglass panels in advance, it will be possible to determine if one person or two person will best carry the panels. Knowing the weight of the panels will allow for the proper equipment to be prepared and will ensure that the weight of the panels is within the limits of the delivery truck or moving equipment.
