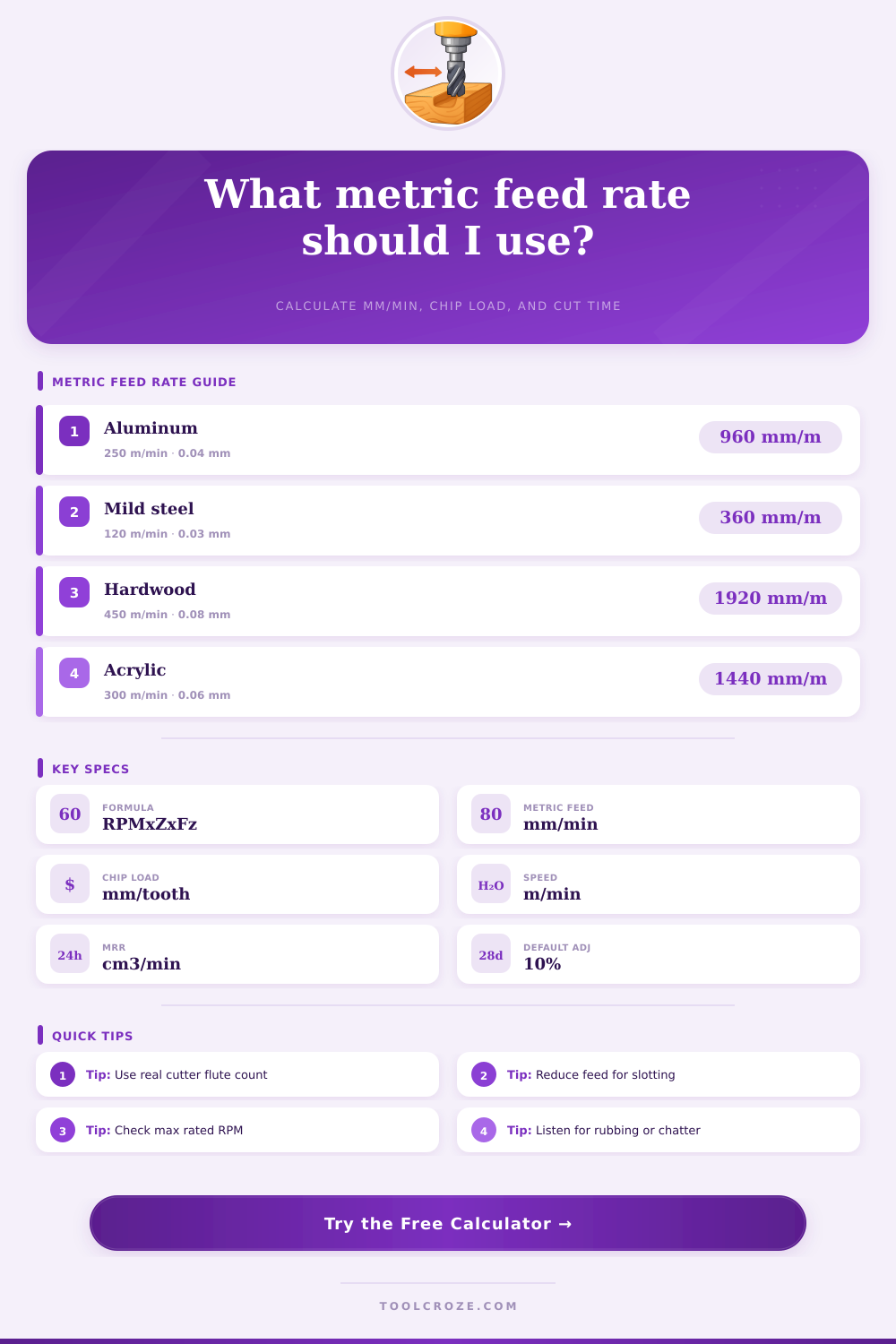

Feed Rate Calculator Metric

You’ve seen the results of neglected feed rates on most cutters in most machine shops. It’s seldom catastrophic, mechanically speaking, but a gradual thing where you’re rubbing rather than chewing away at chips. That rubbing create friction and creates heat. Heat melts plastic or softens steel, and eventually glazing occur on edge.

You don’t move more metal; you move it faster because you know metric feed rate controls what happens down here in the real world. You control how much material per tooth get chewed away before other teeth get there. Feed rate isn’t hard math, it’s just spindle speed times flute count times chip load (plus some other things). But you need to understand what happens when you stress your material.

Why Feed Rate Matters in CNC Cutting

Notice that it breaks out adjusted feed from raw feed on the calculator? There is no such thing as a completely rigid machine in reality. There is also “safety reduction” option where you can apply another factor for the tool to consider. It will account for a little chatter, the flexibility of the workholding or the machine itself. It is not a big deal but it keeps the tool from shattering into pieces if your machine starts to vibrate harmonically.

Aluminum vs. It is stainless steel. Aluminum is a soft, gummy metal that want to weld to the cutting edge when feed drops below a certain level. Higher feed rate and good chip load is necessary to cleanly separate from the material. Stainless: Harder material that work hardens if hesitation occur. Surface becomes harder than original surface as soon as your feed gets too slow. Carbide end mill starts acting like sand paper immediatly.

The one variable that throws people off is amount of chip load per tooth. Operators often just use their total feed rate as they only guesswork, forgetting to account for which number of teeth are actualy engaged. For example, if you have a two- and a three-flute end mill and set them both to run at the same chip load in mm/min at the same RPM, they won’t remove the same amount of material from the workpiece. The three-flute end mill will, since it has more cutting edges working together. This calculator accounts for this multiplication factor for you and assures you that whatever mm/min value you’re seeing relates directly to your chosen tool shape. Plug in incorrect flute count and no matter how accurately you measure your spindle speed, you’ll be left with unusable results.

Finally, cycle time estimation is about money, because time is money. If I know cutting a piece in my CNC mill will be 30 minutes versus three, that changes how I run my shop floor. Instead of running several light passes, maybe I’ll go for one roughing pass with a bigger radial engagement. You’ll see this come out in the material removal rate. That number indicates how fast material is being removed from the workpiece by the tool, how efficient it’s working. And the higher the MRR, the better it sounds on paper. But if machine can’t handle it without sacrificing surface finish quality or breaking tools, then high MRR isn’t useful.

Besides those general tips, woodworking adds some other twists, like tearing on plywood or MDF when fed too slow. Acrylic wants even more attention because heat control matter. You also want your material to tear off cleanly instead of being crushed. Momentum helps with this by shearing fibers without compressing or crushing them.

Presets exist for various common tasks like profiling hardwoods or aluminum, so you can start with settings that follow typical engineering practice. The bottom line is that you need to hear the machine sing to really know what’s going on. A steady hum suggests you’ve got the speed and feed dialed in for the material and tool combination. If it screams or chatters you’re either dragging too slow or trying to push too hard.

Take the computed values and make those your starting point then listen to what happens. Tweak a bit depending on what you witness coming from the cut and what you hear while it’s happening. The key is to get it right the first time and would of saved yourself hours of frustration and cleanup down the road. Keep the chips flying and off the tool and where they should be, not stuck on like glue.
