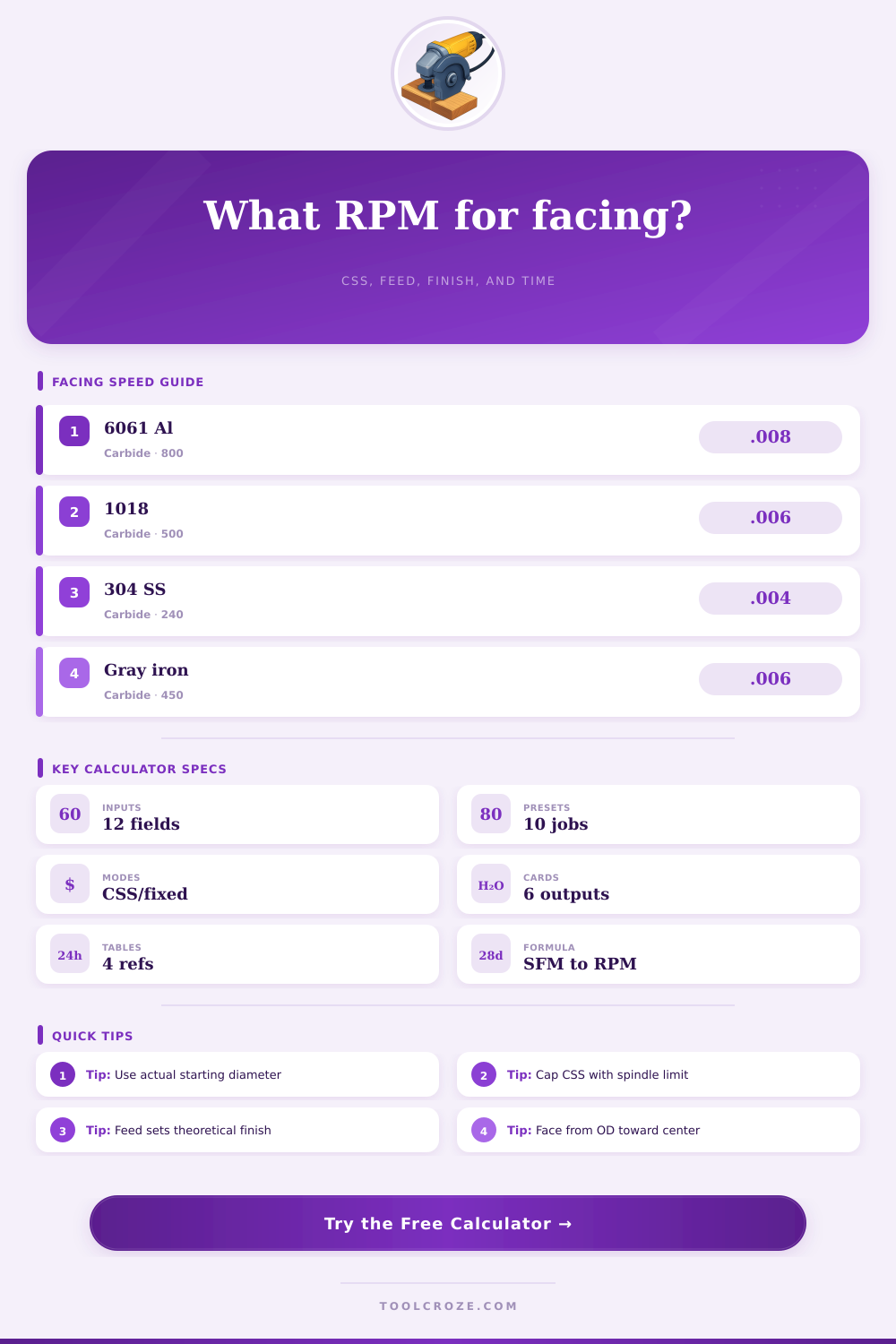

Facing Speed RPM Calculator
Compare constant surface speed and fixed RPM for a lathe facing cut using start diameter, finish diameter, material SFM, feed per rev, pass depth, nose radius, finish target, and time allowance.
Full calculation breakdown
| Material | Typical facing SFM | Feed per rev | Coolant / note |
|---|---|---|---|
| 6061 aluminum, carbide | 600-1000 SFM | 0.006-0.014 in/rev | Sharp edge, clear chips |
| 1018 mild steel, carbide | 350-650 SFM | 0.004-0.010 in/rev | Soluble oil or mist |
| 304 stainless, carbide | 180-300 SFM | 0.003-0.007 in/rev | Keep feed positive |
| Gray cast iron, carbide | 350-550 SFM | 0.005-0.012 in/rev | Dry or vacuum dust |
| Ti-6Al-4V, carbide | 120-220 SFM | 0.003-0.006 in/rev | Coolant, avoid dwell |
| Mode | Formula | Best use | Watch point |
|---|---|---|---|
| CSS facing | RPM = SFM x 12 / (pi x D) | Consistent finish across face | Set safe max RPM |
| Fixed RPM | SFM = pi x D x RPM / 12 | Manual lathes, simple runs | SFM falls near center |
| Feed rate | IPM = RPM x feed/rev | Cycle time estimate | RPM changes in CSS |
| Finish | Ra = feed squared / (32 x radius) | Feed and nose check | Rigidity still matters |
| Nose radius | Finish feed | General feed | Roughing feed |
|---|---|---|---|
| 0.015 in / 0.4 mm | 0.002-0.004 in/rev | 0.004-0.007 in/rev | 0.006-0.010 in/rev |
| 0.031 in / 0.8 mm | 0.003-0.006 in/rev | 0.006-0.012 in/rev | 0.010-0.018 in/rev |
| 0.047 in / 1.2 mm | 0.004-0.008 in/rev | 0.008-0.016 in/rev | 0.014-0.024 in/rev |
| 0.063 in / 1.6 mm | 0.005-0.010 in/rev | 0.010-0.020 in/rev | 0.018-0.030 in/rev |
| Named setup | Diameter range | Mode | Typical result |
|---|---|---|---|
| Small aluminum spacer | 2.0 to 0.25 in | CSS 850 SFM | Fast finish face |
| Steel shaft end | 3.0 to center | CSS 500 SFM | Balanced rough cut |
| Stainless flange | 4.5 to 1.0 in | CSS 240 SFM | Moderate feed |
| Manual cast iron disc | 6.0 to 1.5 in | Fixed 420 RPM | Steady hand feed |
When facing a part on the lathe, you have to pay close attention to your feed and speed. Clamp the workpiece in place, then bring the tool in from outer edge toward the center. Get your settings wrong and you’ll either timidly waste your time or gouge out an insert. Controlling your surface speed when diameter is getting smaller can be the thing that makes or breaks a job.
The best solution seems to be constant surface speed which maintains consistent cutting conditions. But on some machines, this can force you to exceed the maximum RPM at center of spindle. Some older machines is fixed RPM. While easier to program, your surface speed drops considerably toward the middle. Each has its time and place. Knowing the tradeoffs and selecting the right method are where the skill comes in.
Controlling Speed and Feed on a Lathe
Many programmers don’t think about the starting diameter being more critical. That’s because many programmer grab the nominal part size without adding the cleanup stock or approach distance. Without this additional material your time and RPM calculations will not work correcty. Finish diameter is equally significant. Stopping at a bored hole has different settings different than facing to the center. These are types of things calculators factor in with their cycle time and peak RPM calculations.
Theoretical surface finish is directly related to feed per revolution. If the tool were sharp and machine was rigid, the formula relating roughness, nose radius and feed would be exact. In reality, it’s not that simple; deflection and rigidity affects results. While you may set out to get a certain finish on paper, you may wind up with chatter marks because of an excesive amount of part overhang.
At constant feed rates, a bigger nose radius will create a finer finish. But it also creates more cutting forces which can induces chatter when working in thin section. The number of passes required depend on the depth of cut and how much material you need to remove. You can take off material fast with roughing but have to clean up the surface. The finishing pass will be slow with a light depth of cut to avoid glazing and will leave desired roughness on your surface. Speed/feed should automatically changes when you choose the operation type so it’s set for finish, semi-finish or roughing.
Different materials call for a different approach altogether. Aluminum hates built-up edge. With stainless steel you have to feed it positively because it work hardens quickly. Cast iron cuts nicely until you throw dust all over everything. Titanium laughs at high speeds and needs to be sharp with lots of coolant. These numbers are the sweet spot where your tool last, your cut finishes correctly and the chips is coming off right.
The economics of cycle times are also good information. For example, if your estimate says it’s going to be 20 minutes until I’m done with this batch of parts then you know whether running another roughing pass is worth it. In fact, occasionally a few seconds slower will save even more time than removing all that extra material would of indicate. This is because it avoids an additional tool change or deburring operation that takes longer in total run time.
In many shops there are some common mistakes. One mistake is setting too big a start size. They do not respect the limits of their spindle. They also try for something that is not possible at all. A good machinist will take this calculation as a guide but not gospel. They will hear how the machine sounds, watch the initial cut and make adjustments from there.
Ultimately it’s all about controlling speed. How do I make the tool interact at a changing diameter? That will keep everything in balance including forces and heat and finish. The faces just look right on first pass when you’ve got that balance.
