“The steel’s all alike, looks like a stack of metal in your steel yard,” you think as you stand there. “Who cares? I’m sure they’re all the same.” But to someone with eyes to see, there’s a big difference between S355 and S235. And that means the difference between a structure staying strong or falling apart under load.
Those seemingly random combinations of letters and numbers is the European standard for steel grades. Once you understand the code, they tell you everything you need to know about metal. They tell you what it’s made from and how tough it is. They also tell you what kind of welding needs to be done on it and where it’s going to go.
What Do Steel Codes Mean?

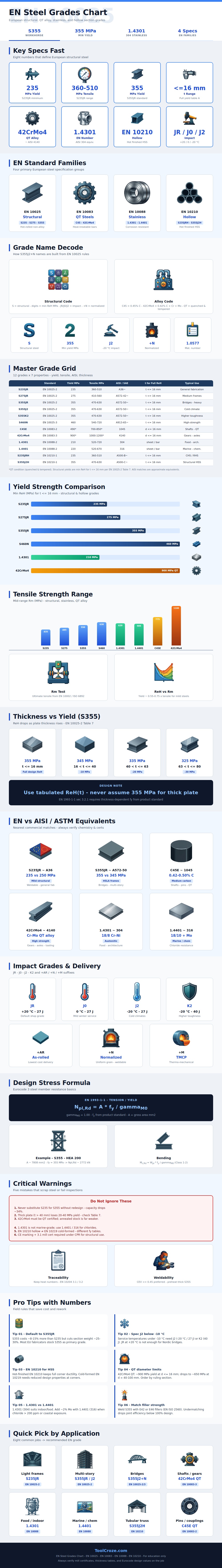

There are four primary families of European steel specs that can be broken down into the chart above. It is a way for you to confidently specify material without guesswork. For most projects involving structures, it’s going to come from the EN 10025 family. That spec covers what’s known as a series of hot-rolled non-alloy steels: S235, S275, and S355. Those are the workhorses of construction.
For higher-strength heat treated steel, use quenched and tempered steel in EN 10083. For corrosion-resistant material, you use stainless grades in EN 10088. Lastly, if you’re using hollow sections or hot finished tubing, those follow rules outlined in EN 10210. By knowing what family relates to your project, you’ll avoid costly errors before you start welding.
What’s actualy useful about the grade name is figuring out what it means. Let’s take S355JR, for instance. The first letter (S) tell you it is structural steel. The next three numbers (355) tells you the minimum yield strength in megapascals. That’s the load at which the steel begins to deform permanently. The JR tells you how the steel has been tested for impact toughness at a certain temperature: In this case, the test was at plus twenty degrees Celsius.
For a cold-climate application, that’s not enough; you’d need J2, which ensures the steel will be tough down to minus twenty degrees. That’s the difference between a beam that holds up in a winter storm and one that shatters with catastrophice results.
Thickness also matter. People don’t understand this. Thinner means it cools down faster during the process. And that affects the yield strength and the microstructure. People don’t understand this, thinner means faster cool in the process. And that affects the yield strength and the microstructure.
In the table, we see that a thin sheet of S355 steel will have a yield of 355 megapascals (that’s MPa). Then, as thickness increases, so does that figure drop. If you are designing something like a high-rise frame or a bridge, and you want to be sure the section is strong enough, then you can’t guess, you need to look at table.
A few equivalences to American standards are helpful for context. A36 is about equivalent to S235. A572 Grade 50 is similar to S355. They’re not exact equivalents, but that’s a good starting point if you are familiar with using ASTM specs. Likewise, AISI 304 stainless is the European cousin of the 1.4301 grade.
That’s fine for interior applications like architecture or food processing. Not so much outside, however. Seawater contains chlorides, which will cause pitting in this grade. You want something better suited to marine use: 1.4401. That’s 316 stainless, which has some molybdenum added for improved corrosion resistance.
When choosing material, the most common choice in Europe is to use S355. S235 will cost you less. But you’ll end up with a stronger section that uses less material. That’s money savings over all. So, S355 is commonly used as one of the main grades stocked by most European fabricators.
Be careful, though; you still need to match your filler metal to your base material. Using under-matched electrodes will reduce joint efficiency to less than what was designed for. Small mistakes can ruin a project.
Steel is nothing if not what’s behind the number of letter that identifies it. Whether it’s something like a car door or a bridge beam, the use case matters. Steel for a high-stress mechanical application, a corrosive marine location, or a cold climate requires the proper grade. Codes are not there to make things harder; they’re in place to keep people safe.
Knowing those code numbers and letters makes steel more than a hunk of gray metal. It tells you what it does. How tough it will be. How strong it is. It also tells you how long it will last. And that matters.
