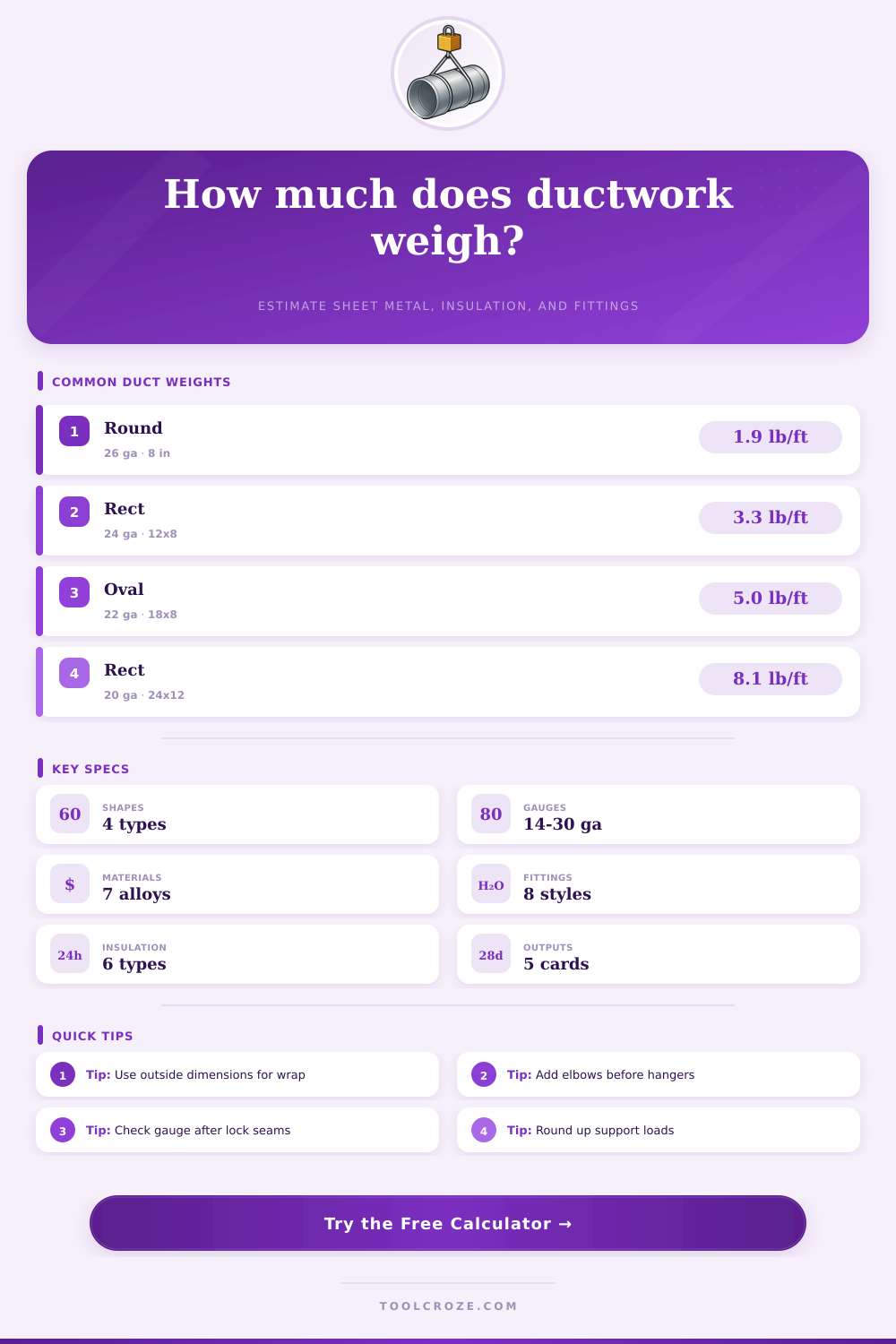

Ductwork Weight Calculator
Estimate straight duct metal, insulation wrap, joint allowance, and fitting weight for rectangular, round, oval, and flat oval duct runs.
Choose a duct scenario, then adjust the dimensions, gauge, insulation, and fitting count for your shop drawing or takeoff.
Calculation breakdown
| Gauge | Galvanized thickness | Typical use | Handling note |
|---|---|---|---|
| 30 ga | 0.0120 in | Small low-pressure branches | Light and flexible |
| 28 ga | 0.0157 in | Residential round duct | Easy to seam |
| 26 ga | 0.0187 in | Common small trunk runs | Good field balance |
| 24 ga | 0.0239 in | Medium commercial duct | Stiffer panels |
| 22 ga | 0.0299 in | Larger mains and risers | Plan lifting weight |
| 20 ga | 0.0359 in | Heavy rectangular duct | Use bracing takeoff |
| 18 ga | 0.0478 in | Industrial or exhaust duct | Check hanger loads |
| 16 ga | 0.0598 in | Grease or high-duty runs | Shop lift preferred |
| Material | Density | Best suited for | Weight character |
|---|---|---|---|
| Galvanized steel | 0.283 lb/in3 | Supply and return air | Standard baseline |
| Black iron steel | 0.283 lb/in3 | Welded exhaust ducts | Similar to galv |
| 304 stainless steel | 0.289 lb/in3 | Kitchen and lab exhaust | Slightly heavier |
| 316 stainless steel | 0.290 lb/in3 | Corrosive exhaust | Slightly heavier |
| Aluminum sheet | 0.098 lb/in3 | Lightweight duct runs | About one third steel |
| Copper sheet | 0.323 lb/in3 | Specialty architectural duct | Heavy material |
| PVC duct sheet | 0.050 lb/in3 | Chemical exhaust systems | Very light sheet |
| Insulation | Common density | Thickness range | Weight note |
|---|---|---|---|
| None | 0.0 lb/ft3 | 0 in | Metal only |
| Fiberglass wrap | 0.75 lb/ft3 | 1 to 3 in | Light external wrap |
| Mineral wool | 4.0 lb/ft3 | 1 to 4 in | Heavier fire wrap |
| Elastomeric foam | 3.5 lb/ft3 | 0.5 to 2 in | Dense vapor-control wrap |
| Rigid duct board | 3.0 lb/ft3 | 1 to 2 in | Adds panel stiffness |
| Internal acoustic liner | 1.5 lb/ft3 | 0.5 to 2 in | Uses inner surface area |
| Fitting | Equivalent size factor | Allowance use | Takeoff note |
|---|---|---|---|
| 45 degree elbow | 0.75 x size | Low | Count vanes separately |
| 90 degree elbow | 1.25 x size | Medium | Add throat reinforcement |
| Transition | 1.10 x size | Medium | Use larger perimeter |
| Tee or wye branch | 1.70 x size | High | Branch collar adds metal |
| Offset pair | 1.50 x size | High | Two bends plus web |
| Damper section | 0.90 x size | Medium | Frame can dominate |
| Roof curb adapter | 2.00 x size | High | Often heavier gauge |
Ductwork is one of components of an HVAC installation; however, the weight of the ductwork will ultimatly determine the success of the HVAC installation. Although people might think that the metal of the ductwork is the only component that contribute to the total weight of the ductwork, there are actualy several components to the weight of the ductwork. Beyond the weight of the metal of the ductwork itself, you must account for the weight of the insulation, the fittings, and the seams of the ductwork.
Additionally, the weight of the steel that is used to hang the ductwork from the ceiling must also be accounted for in the total weight of the ductwork. The total weight of the ductwork must be calculated to ensure that the hangers, supports, and the structure of the building can handles the total weight of that ductwork. If the total weight of the ductwork is not correctly calculated, there may be problems with the cranes that are used to install the ductwork or the ceiling grid installation.
Check Duct Weight Before You Start
The gauge of the metal of the ductwork influences the total weight of the ductwork. For example, an 20-gauge metal will weigh more per foot of ductwork than a 24-gauge metal. Thus, a 20-gauge metal will add more pounds to the structure of the building than a 24-gauge metal.
Additionally, the type of metal of the ductwork will impact the total weight of the ductwork; galvanized steel will weigh differently than stainless steel. Additionally, the method of insulating the ductwork will impact the total weight of the ductwork; external wrap metals will add to the weight of the ductwork outside of the metal of the ductwork, while internal liner metals will add to the total weight of the ductwork within the ductwork. Each of these different components can be entered into a duct weight calculator to help determine the total weight of the ductwork without having to rely on guesswork.
The shape of the ductwork also impacts the total weight of the ductwork. For instance, round ductwork will use less metal than rectangular ductwork of the same area. Thus, round ductwork will weigh less than rectangular ductwork.
Oval and flat oval ductwork will weigh somewhere in between round and rectangular ductwork. The duct weight calculator will calculate the perimeter of the ductwork to ensure that the total weight estimate remains accurate. Accuracy is important to calculate the weight of the long main duct of the HVAC system, as the extra weight of the main duct will add up to alot of pounds when hung on each of the hangers along its length.
The gauge of the metal can also be selected based off the use of the ductwork. For example, thinner sheets of metal will add less to the total weight of the ductwork, and thus, will cost less. However, thinner sheets of metal may sag or even “drum” if used for large commercial duct systems instead of the residential environments where thin metal sheets are common.
In this case, reference tables of metal thickness for various uses can be consulted. In either case, the calculator permits the user to enter the actual thickness of the metal, as the metal sheets may have coatings or lock seams that add to the thickness of the metal. The type of insulation that is used for the ductwork also influences the weight of the ductwork.
For example, metals that are wrapped around the developed area of the ductwork will add to the total weight of the ductwork. Additionally, metals that line the inside of the ductwork will add to the total weight of the ductwork. Additionally, the different metals for insulation will have different densities; metals like fiberglass blankets, mineral wool, and elastomeric foam will add to the total weight of the ductwork in different amounts.
The duct weight calculator allows for the weight of the metal of the ductwork and the weight of the insulation to be calculated separately. Additional components of the duct system include the fittings for the duct system. For instance, the weight of duct fittings will typically not be the same as the weight of metal ductwork of the same length.
Thus, the weight of each type of fitting must be accounted for. As the metal that comprises the ductwork can be fabricated in various ways to include duct fittings, each calculation of the weight of each type of fitting is accounted for in the duct weight calculator. Furthermore, metal is used to create joints in the ductwork.
For instance, Pittsburgh locks, slip connections, and reinforcing bands will add to the total weight of the ductwork, especially for the long runs of the ductwork. Additionally, a waste factor is used to account for the metal that will be cut during the fabrication process but that will not be utilized in the actual ductwork. Another consideration of the duct system is the support system for the ductwork.
For example, the spacing of the support system is established based upon the total weight of the ductwork. The total weight of the ductwork must be calculated, divided by the length of each run of ductwork, and then multiplied by the distance between each of the hangers. That resulting value will provide information regarding the type of hardware (standard strap, threaded rod, etc.) that should be used, as well as whether the hangers should be closer together than is typically required for duct systems of that weight.
Finally, it should be noted that the weight of the ductwork may be altered during the installation of the ductwork. For instance, access doors, fire dampers, and seismic bracing will all add to the total weight of the ductwork. Additionally, extra insulation may also be added for sound control or condensation control.
As many of these components may not be visible on the initial takeoff of the work to be performed for installation of the ductwork, a contingency factor is included in the calculation. While the duct weight calculator will calculate the weight of the ductwork based upon the specifications for the duct system, this contingency allows the HVAC installation crew to account for the additional weight of these components. Beyond the metal that comprise the duct system, other materials may be used in the duct system.
For instance, aluminum materials are typically lighter than metal sheets of steel used for the duct systems, but the joining methods are different. Additionally, metals like stainless steel will be heavier than galvanized steel yet offer additional corrosion resistance. These different metal densities can be entered into the duct weight calculator to determine the impact upon the total weight of the duct system.
The calculation of the total weight of the ductwork can be performed early in the installation process; however, there are a variety of tasks for which the weight of the ductwork will be needed. For instance, the structural engineer may require the weight of the ductwork, and the purchasing department may require the weight of the scrap metal that will be used to fabricate the ductwork. By calculating the weight of the ductwork, the HVAC installation crew can avoid the need to communicate with other members of the installation crew to discover that, for instance, the hangers was undersized for the ductwork that would be installed.
Additionally, it is possible to use the calculated weight of the ductwork to compare the weight of various types of duct systems. For example, the weight of round main ducts can be compared to the weight of rectangular main ducts. By determining these various weights of the duct components, decisions regarding the hang of the ductwork can be made with confidence.
You should of checked the weight before you start.
