A counterbore is a machining process that creates a flat bottomed cylindrical hole in a workpiece. You use a counterbore if you want teh head of a bolt to sit below the surface of the material. The counterbore will create space for a socket head cap screw.
If the counterbore are too shallow, the bolt head will protrude above the material surface. If the counterbore is too deep, then the counterbore remove too much material from the workpiece. Removing too much material with a counterbore can weaken the structural integrity of that workpiece.
How to Make a Counterbore Hole
A counterbore and a countersink are two different processes. A countersink creates a conical V-shaped hole to receive a flat head screw. A counterbore creates a flat bottomed cylindrical hole for a socket head cap screw.
A spotface is a shallow counterbore that create a flat surface on a rough casting. If you use the wrong process, such as a countersink in place of a counterbore, the head of the bolt will not sit flush with the material’s surface. To perform a counterbore, you must understand the relationship between the pilot hole and the counterbore.
The pilot hole receives the shank of the bolt. The counterbore is the hole that receives the head of the bolt. Drill the pilot hole first.
Then use a counterbore tool to widen the hole. Using the wrong size pilot hole will create a bolt that is either too loose or too tight within the pilot hole. Another critical factor when performing a counterbore is the depth of the counterbore.
Make sure that the depth of the counterbore is more deeper than the height of the bolt head. If the counterbore is bored slightly deeper than the bolt head, the head will sit below the material surface. Additionally, boring the counterbore slightly deeper than the bolt head will prevent the head from bottoming out within the material.
Bottoming out of the bolt head prevent it from properly tightening. Make sure the counterbore is not bored too deep into the workpiece. If bored too deeply, the counterbore will compromise the thickness of the workpiece wall.
To perform a counterbore, follow a specific sequence of steps. First, mark the location where you want the counterbore using a center punch. Using a center punch ensure the drill bit does not wander from the center.
Next, drill the pilot hole to the required depth. Finally, use a counterbore tool to create the counterbore. Use a piloted counterbore tool to ensure the counterbore is concentric with the pilot hole.
Otherwise, the counterbore may be off center. An off center counterbore will create issues with the bolt head leaning on the workpiece. The tools you use will depend on the material you are machining.
You use high-speed steel (HSS) tools for aluminum and mild steel. HSS tools are useful for low-volume production as the tool can be reground. Use carbide tools for stainless steel and high-volume CNC production machines.
Carbide tools have a long tool life. Additionally, the machinist must manage the speed of the tool during the counterboring process. If the counterbore tool is running at too high of a speed, the tool will be damaged.
For example, if the counterbore tool is set to run at 2000 RPM in stainless steel, the tool will burn out the cutting edge. Therefore, the speed of the tool must be lower than 2000 RPM when using stainless steel. In woodworking, you can use a counterbore tool to hide the head of a bolt for aesthetic purpose.
A plug cutter can create a piece of wood that fit into the counterbore. Cut the plug from the same grain as the workpiece. Insert the plug into the counterbore and sand it down flush with the workpieces surface.

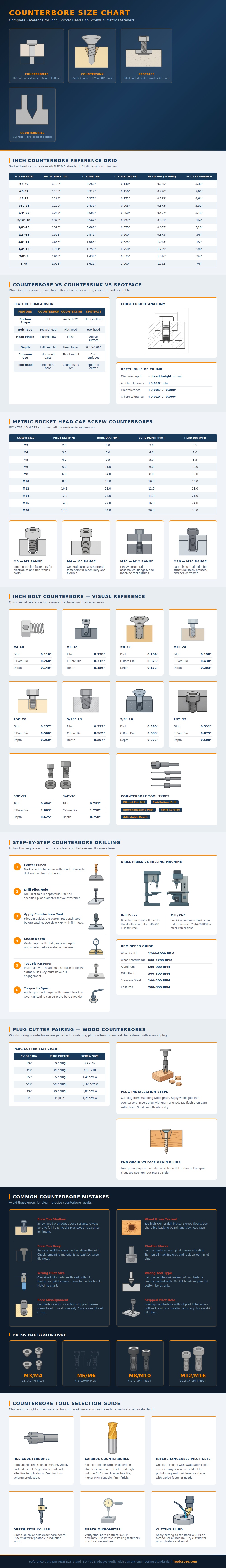

Using face grain create a plug that is less visible. An end grain wood plug will create a stronger wood plug but will look like a circular peg. Following a size chart for fasteners will ensure the diameter of the counterbore tool and the pilot hole are the correct size for the bolt being used.
You should of used a size chart to avoid errors. It is actualy alot of work to fix a bad hole.
