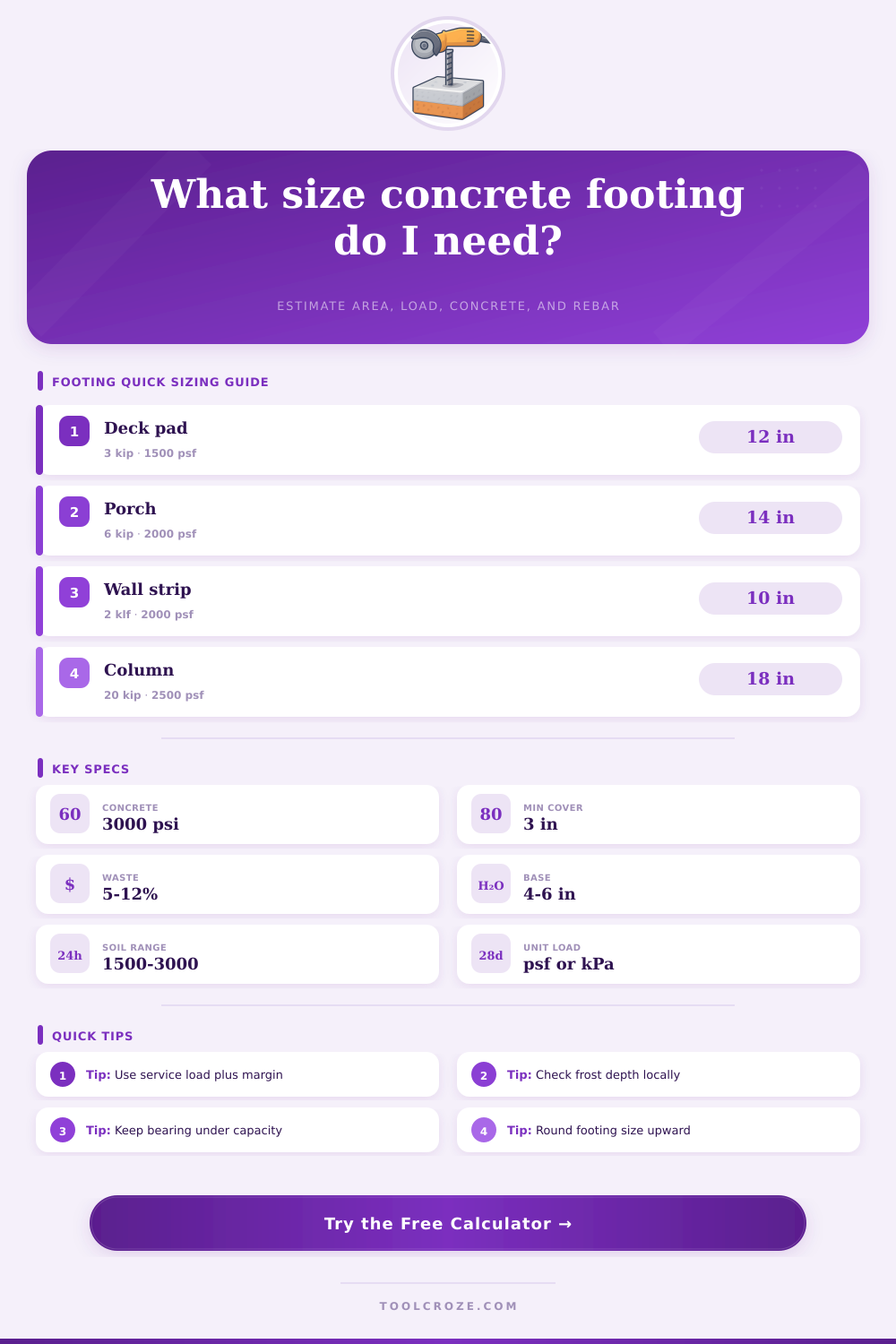

Concrete Footing Size Calculator

Know that your house is sitting atop dirt, not concrete. Concrete spread the load across ground without crushing it. Get the foundation wrong and you’re inviting tilted floors and cracks. They’ll cost money to fix down the road.

You input your estimate of the load and the capacity of your soil, and let the calculator do the math. No more unit conversion, no more wondering what coefficient goes where, just the practical dimensions for your job, made real by simplifying engineering principles.

How to Design a Good Foundation

The most critical input: allowable soil bearing pressure. This figure is in pounds per square foot, and indicates maximum weight that the soil can support before settling unevenly. Gravel may be able to withstand three thousand or more pounds per square foot. Clay? It might be as little as fifteen hundred. Without a geotechnical report (which you typically don’t have), you simply don’t know. That’s why using conservative figures is the safe way to go. Overestimating strength of your soil leads to undersized footings. The structure sink into the yielding soil.

People make mistake of focusing on the strength of their concrete while forgetting about what lies beneath. Then there’s the load. The weight that pushes down in that one location. Snow accumulation? Roof trusses? Wall weight? What about furniture? To make things easier, you calculate tributary areas. Basically, it require knowing how many pounds are landing on each square foot of foundation (or column pad). That’s why the tool requests the service load so you can divide that number by your soil capacity. This gives you minimum amount of surface area needed to maintain pressure under your soil limit.

Geometry does the rest. Spread out evenly in all directions, a square pad is an efficient way to spread the load. Footing strips do it by spreading the load out continuously along a line. Depending on your choice of shape, the calculator will adjustes to match the volume and rebar estimate. Also consider thickness, thicker footings can takes bending moments better. On the other hand, they use up more concrete and may need more rebar as well.

Here’s where you’ll get some choices for concrete strength (typically around two thousand five hundred to four thousand psi). Three thousand psi is common for most residential applications. It’s durable yet workable enough. That’s just one aspect of the other layer of complexity: reinforcement. While the steel bars don’t necessarily strengthen the concrete in compression, they actualy weaken it. The concrete doesn’t crack in tension with them there. The concrete down below want to bend up as that soil pushes back up. With no rebar, it will snap. Depending on the size of your footings, you can enter a spacing and number of bars to see roughly how much linear footage of bar you’ll require. For general residential applications, number four bars is popular. They’re strong, but not so strong than to be difficult to work around in the formwork. Just be sure to maintain sufficient cover; typically three inches, to ensure the steel never gets wet and begins to rust in the ground.

One last thing: account for the excavation and gravel base. Never pour concrete onto native soil. Excavate down to firm ground then lay a compacted layer of gravel. This will give you a good solid flat base that drains well too. This adds to your overall depth so don’t forget it when figuring amount of dirt to excavate!

Also it assumes some waste because concrete delivery trucks rarely hit the exact volume ordered due to spillage, form irregularities, and strike-off variation. Adding ten percent extra protects against running dry during the pour.

In colder zones, there’s a bottom line: frost depth. Soil that freezes heaves and lifts whatever is sitting on top of it. So when frozen ground beneath doesn’t move while everything else around it does, what happens? Differential settlement rips walls out. This field reminds you to dig deeper if local code requires it. It is not a structural calculation, but it is key to a long life for the structure.

Use this: So in summary, footing size is a balancing act. It must be deep enough to outsmart frost, wide enough to insulate the soil beneath, and thick enough to stand up without being too expensive. There’s no substitute for good judgment, but the calculator provides a decent baseline based off physics and standard practices. But it can’t look at your property. It doesn’t know about a pesky high water table or old well located somewhere close by. Double check your work with a structural engineer or your local building official. That’s where they’ll pick up the details the algorithm can’t catch.

Do the math right. And then use some judgment to close the deal. A good foundation stands strong for decades.
