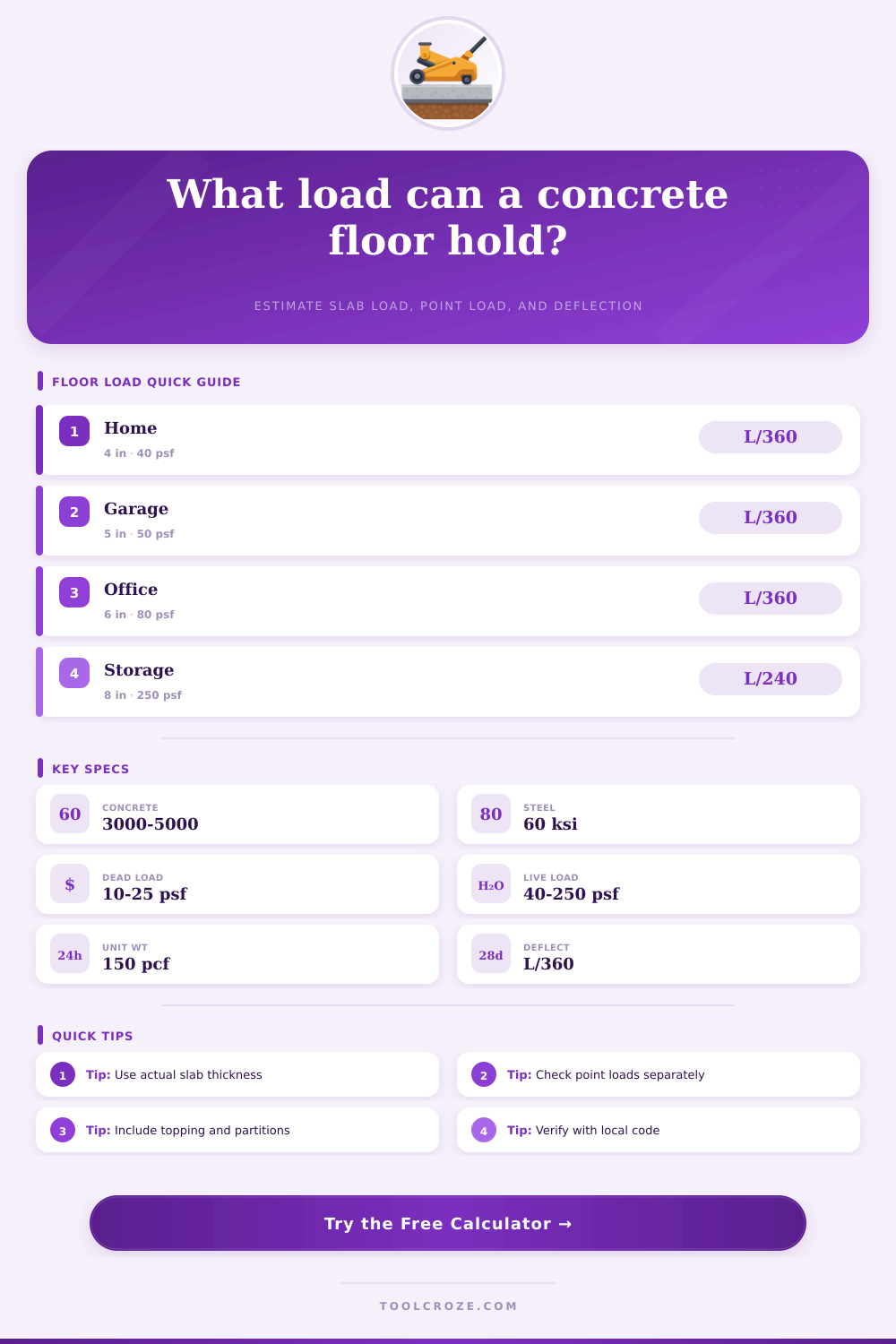

Concrete Floor Load Capacity Calculator
Estimate allowable live load, point load, bending capacity, deflection, and utilization for common reinforced concrete floor and slab planning checks.
⚙Load Scenario Presets
📐Floor And Reinforcement Inputs
🧱Current Material / Spec Grid
Full Calculation Breakdown
📊Typical Floor Live Load Reference
| Use Case | Common Live Load | Common Deflection Limit | Notes For Calculator Input |
|---|---|---|---|
| Residential rooms and basement floors | 40 psf | L/360 | Check heavy aquariums, safes, masonry hearths, and concentrated legs separately. |
| Private garages and light vehicle areas | 50 psf or wheel loads | L/360 | Wheel loads can govern even when the uniform psf load appears acceptable. |
| Office, classroom, and assembly support rooms | 50 to 100 psf | L/360 to L/480 | Use higher limits for brittle finishes, partitions, or equipment-sensitive spaces. |
| Light storage and records rooms | 125 to 250 psf | L/240 to L/360 | Rack post loads often control before the whole-floor uniform load does. |
🔧Concrete And Reinforcement Data
| Specification | Typical Value | Calculator Use | Field Check |
|---|---|---|---|
| Normal weight concrete | 145 to 150 pcf | Self-weight dead load from slab thickness | Lightweight concrete needs a separate unit weight. |
| Compressive strength f′c | 3000 to 6000 psi | Flexural block depth and punching shear estimate | Use cylinder tests, plans, or core reports where available. |
| Rebar yield strength fy | 40 to 75 ksi | Nominal moment strength of one-foot slab strip | Match actual reinforcing grade from drawings or bar tags. |
| Concrete cover | 1 to 2 in interior | Effective depth from top compression face to steel centroid | Scan existing slabs before relying on assumed bar position. |
📏Rebar Size Reference
| Bar Size | Nominal Diameter | Area | Common Slab Use |
|---|---|---|---|
| #3 / 10M | 0.375 in | 0.11 in² | Light slabs, temperature steel, thin toppings with engineering review. |
| #4 / 13M | 0.500 in | 0.20 in² | Residential garages, patios, light commercial floor panels. |
| #5 / 16M | 0.625 in | 0.31 in² | Heavier suspended slabs, industrial pads, equipment bases. |
| #6 / 19M | 0.750 in | 0.44 in² | High load floors and transfer areas with adequate cover and spacing. |
🏘Common Slab Planning Checks
| Scenario | Starting Thickness | Likely Critical Check | Practical Input Note |
|---|---|---|---|
| Basement storage with shelving | 4 in | Post or leg bearing load | Enter the shelf foot plate, not the shelf footprint. |
| Vehicle garage slab | 4 to 6 in | Wheel contact load and cracking | Use an 8 to 12 in bearing patch for tires or jack pads. |
| Suspended office slab | 5 to 8 in | Flexural strength and deflection | Use clear span between beams, walls, or supporting ribs. |
| Warehouse rack aisle | 6 to 8 in | Rack post, forklift wheel, and joint transfer | Check concentrated loads and joint location separately. |
💡Calculation Tips
Because concrete is dense, it’s heavy and stays right where you put it. This means you may think a basement floor is as permanent and solid as any slab of concrete can be. But if you bring in a hot tub or build a set of bookcases, your intuition may trick you.
Sure, the concrete may bear the load, but what about the steel reinforcement within? Will that fail? And even if the structure doesn’t fall down, will it crack your tile first from deflection? It turns out that load capacity is rarely about the concrete itself; most of it is actualy about the rebar hidden inside.
Why Concrete Slabs Can Fail
When you put numbers into the calculator above, it does all the math for you. But knowing what’s going on will make it more useful. You’d think that if a 5 inch slab was 5 inches thick everywhere that it didn’t matter where it was. That is wrong. An office slab suspended above a beam bend in one direction; a garage floor sitting on dirt stay up by friction with the ground. It doesn’t take long to see that a safety factor goes out the window if you select the wrong category. That’s why the tool requests which kind of system you have: the way those systems bends under load is very different.
Concrete is strong, but not as strong than you think. For example, five thousand pounds per square inch (psi) concrete will make for a soft floor if there’s weak rebar in there. The moment calculation makes sure that the rebar yield strength can handle what the design calls for. We see people obsessed with the compressive strength of the mix and completely forget about the steel’s tensile capacity. Pulling concrete apart snaps it like a twig; it crushes readily. When loaded, your slab bend, placing tension at its base. The rebar has to take up this tension. Specifying Grade 60 rebar instead of required Grade 40 does not change the thickness, but it reduces the capacity.
Point loads are other danger spots. It’s simple enough (a box of people in a room), boxes equally spaced around the warehouse. Reality isn’t so tidy. Heavy machinery have legs; racks have posts; forklift wheels concentrate their load on just a few square inch. Use the calculator and input your bearing plate dimension to see how it performs against that potential failure condition. Long before the whole floor give way, local cracking/punching shear typically dominates the design. Your nice thick slab can clear the overall uniform test yet collapse with one jack stand underneath. Test each scenario individualy.
The other secret issue is deflection. Your floor may be sturdy enough to avoid any cracking but it could deflect excessively. Terrazzo and ceramic tile are brittle, they don’t take deflection very well. When the slab they sit on bend more than tightly controlled amounts, they crack up. This page has a handy chart of what’s generally expected, typically from L/360 (general purpose) to L/480 (sensitive finish). Go below that, and you’re headed for a pricey fix sometime down the road. Today, maybe you’ll save a few bucks on concrete; tomorrow, you’ll be paying for regrout.
So there’s an added element of doubt here. You don’t necessarily understand how deep any of this stuff is. You have no idea what was built or where the bars are. And that stuff deteriorates over time. Deterioration hides in plain sight. Because construction is messy and things never align exactly with plans, we include a reserve percentage input as part of the tool. That allows for 10% more (so a ten percent safety buffer) for all that stuff you don’t really know about. Better to err on the side of caution and be under by just a little bit rather than push it and suddenly have something fail as you’re moving heavy equipment around.
In the end though, numbers are limits, not promises. They’re your map for the best scenario of where the line is, where safety ends and danger begins. Reality throws curveballs at us that equations can’t account for. Age. Joint placement. The soil settle. Apply the numbers as guidance for how to plan and what to look out for. When it’s about life safety or moving heavy things, call in a pro to get the nitty gritty right.
The concrete might feel strong, but its strength is limited by its geometry, material, and restraint. Hear what the numbers say first, then take heed before stepping on them. You should of listened to the math first.
