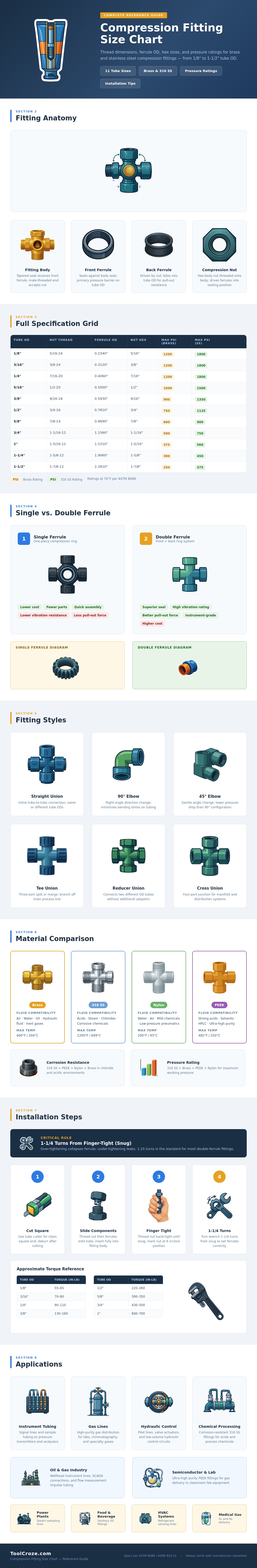

One little thing that people overlook is hydraulic line leaks. It may have the right nominal size on the compression fitting, but ferrule has to hold your tube outer diameter. So you need to make sure you’re matching the tubing size with the ferrule’s capacity. You can’t get away with wrong sizing by simply cranking down on wrench. Having a good reference for all those numbers is important. The chart above shows how pressure ratings and thread sizes increase as you move from small tubing to large lines.
Instead of using tape or glue, a compression fitting use mechanical deformation. You have a fitting body, which includes a tapered seat; a front ferrule to seal against this seat; and then a back ferrule that bites into the tube. When you tighten the nut, all pieces interact. The front ferrule is where most of pressure comes from. The back ferrule keep things from pulling out. Sounds easy enough (until somebody tries rushing it).
How to Use Compression Fittings Correctly
That’s when majority of leaks occur: they cross-threaded the nut or skipped deburring before making it finger tight. Many newbies has trouble deciding whether to use a single or double ferrule system. A single ferrule fitting is quick, cheap, and suitable for air or water lines where there isn’t much vibration. Double ferrule use a front and back ring setup which gives better sealing at high temperatures and vibration. In an industrial plant running pumps all day long, down time from broken connections would of more than pay for the additional expense of double ferrules. It is no longer just connection, but a way to ensure reliability.
Just as important is what it’s made of. For most applications (water, air, hydraulic fluid), brass will do fine. Up to twelve hundred psi for small stuff. It is easy to work with and forgiving on end squaring. When you’re under attack from acids or other corrosive elements like chlorides, stainless steel (the 316 grade) kicks in. It has a higher pressure rating, which is frequentely eighteen hundred psi for small tubing; however, stainless is unforgiving unless you have perfectly squared tube ends. Nylon and PEEK find their niche in places like food processing or laboratories where chemical compatibility beat brute force.
Follow these steps to install them: a real pro installs them; a guesser just guesses. One and a quarter turns beyond finger-tight is all you want. You don’t need to turn till your arms are numb. If you overtighten you’ll collapse the ferrule and wreck its form and ultimatelie cause a leak. Don’t undertighten or there will be gaps where fluid can leak out. Before tightening up, mark the nut at the six o’clock position then use that as a visual reference when turning precisely a half-turn (or whatever number of turns it takes). Get a torque wrench if you’ve got one and target specific inch-pound values. Do not do it by feel.
Depending off how you need it laid out, the fitting is all style. Elbows in 90° can take care of tight turns while keeping tubes from kinking. Tees are efficient branching for main lines. Crosses allow you to branch off main lines efficienty. Reducers provides a way to join two different sized tube rather than requiring multiple adapters which add potential failure points. Each piece has a purpose in both managing physical space and flow.
All in all, a compression fitting is only as good as how well it’s installed. Take the time to make sure you have a square cut on the tubing. Remove any burrs. Use the right type of material for the fluid environment. Use care when tightening instead of brute force. Treating the seal and the fitting with care will ensure they work secureley and quietly. And that makes a huge difference in maintaining safety and dryness in your systems.
