CNC Ramp Angle Calculator

CNC Ramp Angle Calculator

Plan linear and helical ramp entries from cutter diameter, ramp depth, feed, stepdown, engagement, material behavior, and machine rigidity.

Named Ramp Presets
📐Ramp Inputs
Linear mode treats ramp length as horizontal travel.

Calculated Ramp Plan

Ramp Angle
0.0
degrees from horizontal
Ramp Path
0.00
in of toolpath
Ramp Time
0:00
at programmed feed
Chip Load
0.0000
in/tooth
Recommended Feed
0.0
ipm adjusted
Ramp Passes
0
stepdowns or helix turns
Check the calculated plan before machining.
📊Selected Material and Tool Spec Grid
250-600
SFM range
.002-.005
chip load
2-4
ramp deg
0.5D
helix step
🔢Formula Breakdown
Calculation Formula Used For Notes
Linear ramp angle atan(depth / length) Entry steepness Measured from horizontal travel
Linear ramp length depth / tan(angle) Required XY distance Use when a max angle is known
Helix lead angle atan(stepdown / (π × diameter)) Helical pocket entry Diameter is the helix centerline path
Chip load feed / (RPM × flutes) Feed sanity check Compare with material range
Cutting speed π × cutter dia × RPM / 12 SFM check Metric inputs convert internally
Ramp time toolpath length / feed Cycle estimate Uses programmed feed rate
Material Ramp Reference
Material Typical Ramp Angle Helix Stepdown Chip Load Starting Point Practical Note
Aluminum 6061-T6 2 to 4 deg 0.35D to 0.60D 0.0020 to 0.0050 in/tooth Clear chips aggressively during pocket entry.
Mild Steel 1018 1 to 2 deg 0.15D to 0.30D 0.0010 to 0.0030 in/tooth Favor lower feed on light fixtures.
Stainless Steel 304 0.5 to 1.5 deg 0.10D to 0.20D 0.0007 to 0.0020 in/tooth Avoid rubbing; keep the tool engaged.
Brass C360 2 to 5 deg 0.30D to 0.55D 0.0015 to 0.0040 in/tooth Use sharp tools and stable workholding.
Acetal / Delrin 3 to 7 deg 0.50D to 0.90D 0.0030 to 0.0090 in/tooth Leave room for soft chip evacuation.
Acrylic PMMA 2 to 5 deg 0.35D to 0.65D 0.0020 to 0.0060 in/tooth Reduce heat to avoid melting or cracking.
Hardwood Maple 3 to 8 deg 0.50D to 1.00D 0.0030 to 0.0100 in/tooth Ramp with dust collection active.
MDF / Fiberboard 4 to 10 deg 0.60D to 1.20D 0.0040 to 0.0120 in/tooth Watch fine dust and tool heat.
🔧Cutter and Engagement Reference
Cutter Size Common Flutes Linear Ramp Length Helix Diameter Best Fit
1/8 in end mill 1 to 3 0.75 to 2.50 in 0.20 to 0.45 in Small pockets, plastics, wood
1/4 in end mill 2 to 4 1.25 to 4.00 in 0.38 to 0.75 in General aluminum and wood pockets
3/8 in end mill 3 to 5 2.00 to 6.00 in 0.55 to 1.15 in Rigid machines and deeper pockets
1/2 in end mill 3 to 5 3.00 to 8.00 in 0.75 to 1.50 in Large pockets with strong fixturing
Single flute O-cutter 1 0.75 to 3.00 in 0.25 to 0.75 in Acrylic, PVC, and soft plastic
Ramp Mode Comparison
Mode Input Meaning Strength Watch Item Common Use
Linear ramp Ramp length is XY travel Simple, predictable, easy to inspect Needs enough straight-line room Slots, open pockets, contours
Helical ramp Ramp length is helix path diameter Compact entry into closed pockets Hole must clear cutter and chips Bores, pockets, adaptive clearing
Shallow zig-zag Several linked linear ramps Good for thin or flexible setups Direction changes can mark walls Sheet goods and router work
Pre-drilled entry Ramp starts in relief hole Reduces tool center cutting load Hole location must be accurate Steel, stainless, deep pockets
📋Preset Specification Grid
Preset Material Cutter Mode Starting Setup
6061 1/4 Helix Pocket Aluminum 6061-T6 0.250 in, 3 flute Helical 0.650 in helix path, 0.060 in step
1018 Steel Gentle Ramp Mild Steel 1018 0.250 in, 4 flute Linear 2.800 in ramp, 0.080 in depth
304 Stainless Bore Helix Stainless Steel 304 0.1875 in, 4 flute Helical 0.500 in helix path, 0.025 in step
Acrylic O-Flute Ramp Acrylic PMMA 0.250 in, 1 flute Linear 1.400 in ramp, 0.125 in depth
Tip: For a linear CNC ramp, double the ramp length to roughly halve the entry angle. This is often the easiest fix when a tool chatters at entry.
Tip: For helical entry, compare stepdown to helix circumference, not cutter diameter alone. A small helix path can make the lead angle steep fast.
Safety note: Always wear appropriate safety equipment, verify workholding, simulate the toolpath, and never exceed the maximum rated RPM of your cutter, collet, holder, spindle, or machine.

A simple tool to help compare different parameters before programming your linear or helical entry moves. It’s all about comparing ramp parameters like: Length, Depth, Stepdown, Engagement, Rigidity, Cutter Size, Feed, Material

This part is absolutely key at the beginning of every pocket cycle, when the cutter first engages the material. Often simulations looks fine right up to the point where the cutter plunges, at which point it must begin cutting from its center out (no good). Using a ramp lets the flutes slowly begin their engagement, but if you don’t get angle right, it will chatter, destroying your tool and leaving unsightly marks on the part.

Why Ramp Parameters Are Important in CNC Machining

Experienced machinists don’t guess ramps visually through their CAM program; they’re deliberate about planning for them. The simplest to imagine is a linear ramp: as the cutter descends, it moves horizontally in return for height. Enter the required ramp depth and length into the calculator and it do the math to display whether the calculated angle is within tolerance for your chosen material. Shallower angles take longer to complete, but they distribute the load across a greater area; steeper ones completes faster at the cost of increased stress on the tool.

Note that “angle” means the angle based off horizontal. Even though a four degree ramp looks pretty darned flat, you’ll see it moving very gradually downward along the Z axis over a couple inches of travel.

But then there are those things called helical ramps. Now you’re not going in a straight line at all, rather circling within that pocket and dropping down like a tiny ramp in a parking garage. That ‘length’ field now represent the centerline diameter of that helix. What you might see as being a small compact helix on screen can produce an unexpectedly steep effective angle if stepdown per revolution is too great. Now you have a tool corkscrewing downwards. Good chip evacuation are necessary to maintain consistent engagement.

However, chips packed into a stainless steel helix will cause noticeable vibration. Every decision is influenced by how materials behaves. Ramps at three or four degrees are no problem in aluminum but would of been bad news in stainless steel (which needs angles of half that size or smaller). To spare us from having to remember all those suggested surface speeds and chip loads, the calculator has material defaults built in.

But those figures don’t tell everything. What might work fine as an angle on a stiff mill will require more care, reduced feed and a shallower profile… In a light desktop router. You can adjust for this reality using rigidity and safety-factor inputs before running it on the control.

Chip load is critical during a ramp. When you program the feed to make the cut, remember that it happens across a sloping surface. The true feed along the line will generate a perpendicular feed, which can be surprising. You calculate what should happen and find that factoring in the sine of the angle causes your programmed feed to double the normal tooth load. That’s the piece of the puzzle most operators overlook until they hear the high pitch squeal.

There are common errors made in machine shops. They often use same ramp angle for all materials. They don’t increase the helix diameter enough to allow chips to clear. They also don’t consider how many stepdowns will be needed to reach full depth. All of these lead to the cutter breaking at a critical moment.

For the best operators, the ramp is treated like the first domino in the chain. If that’s done correctly then everything else falls into place nicely. Get it wrong and the whole job turns into a chore.

This is a ramp. There’s no telling when it has been done right. You don’t notice a good ramp because the tool goes into the cut without binding or catching anything, chips clear away nicely, and the entrance wall finishes like the remainder of the pocket. If that’s the case, then you know the calculator was not just solving for an angle. It prevented a mistake that wasted hours on a CNC project.

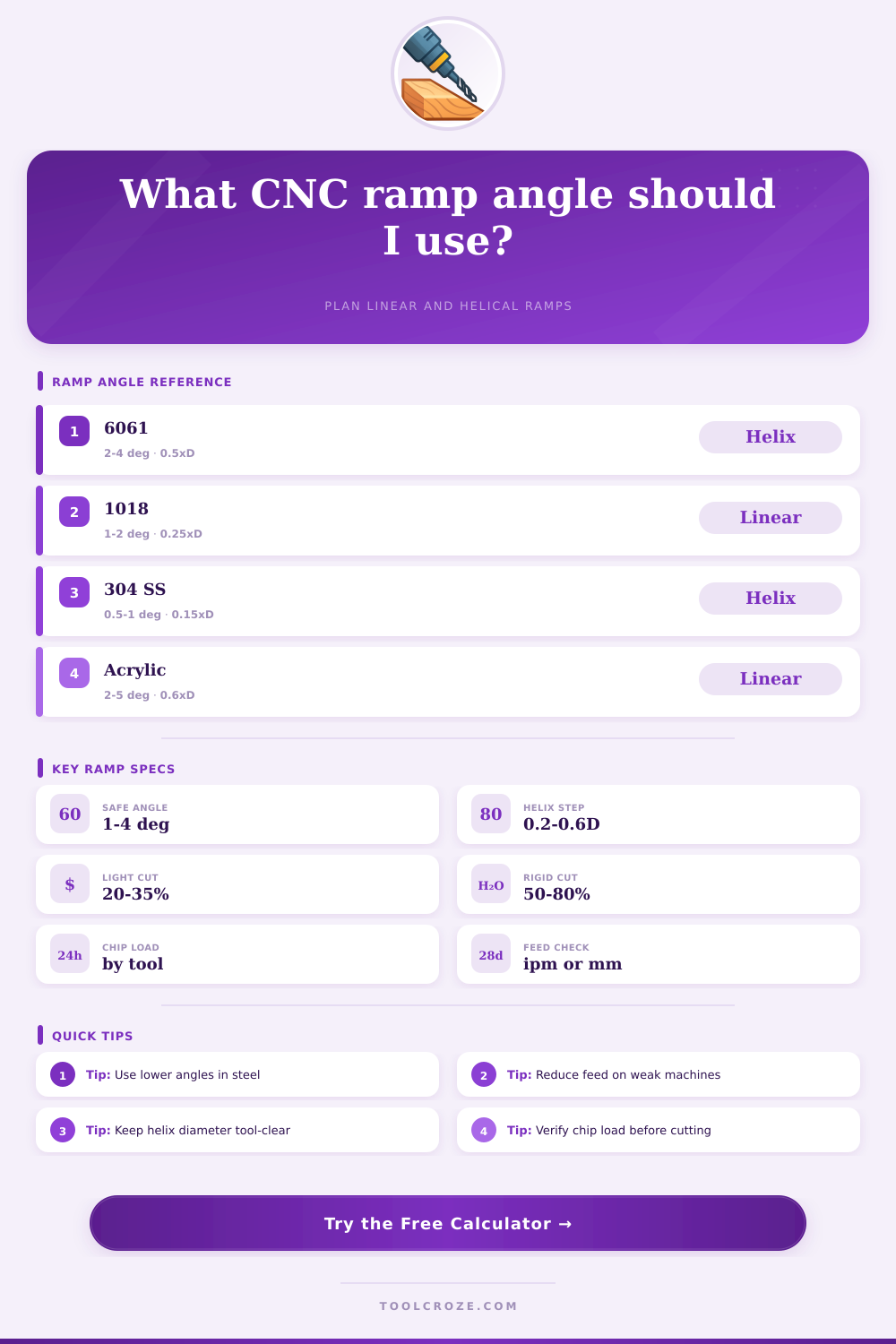

CNC Ramp Angle Calculator
