Chip Seal Aggregate Calculator

Chip seal jobs has a tell-tale aroma. The unmistakable stench of hot asphalt binder bubbling up through the pavement lets you know that road work’s being performed.

Most times when you get the whiff, the math are working out well. When the math doesn’t work out so well, you’ll find yourself dodging pebble strewn all over the roadway as you drive and potholes reappearing just weeks later.

How to Do the Math for Chip Seal Jobs

Aggregates matter greatly to a successful chip-seal project. Namely, a sufficient amount of stone has to be deposited onto pavement while not wasting too much of the material to the shoulders. Estimating the spread rate, area, and waste accurately is difficult and requires an educated guess to determine truck count. To get a start here, you enter your project parameters into the calculator above and it does all the work for you no more wrestling with density coefficients and unit conversions.

First is area: how many square yards do we have? That’s easy enough, just multiply the width times the treated length. Until…you think about the fact that few spreads is really rectangles! Shoulders will come in different widths. Lanes may taper at intersections or driveway curves. Instead of using a typical lane width as your base width, measure what actual coverage width is going to be. Don’t underestimate the square footage by trying to use standard lane width. You don’t want the treated footprint to be theoretical center line distance, but the physical reality of the spreader’s footprint.

The engineering aspect that matters most is the spread rate: how many pounds of aggregate are used per square yard? That’s what determines the finished look and durability of your surface. For example, a smoother finish like on a shoulder or a fog-seal prep may only call for a finer quarter inch chip that require less material. On the other hand, a more aggressive five-eighths-inch stone for a high-traffic rural road would required far more weight to reach the same interlocking effect. The calculator shows you how those spread rates equate to amount of tonnage required.

What about the fact that some aggregates is lighter than others, like trap rock, which would require less volume than a more dense stone but have the same weight? Knowing the connection between loose unit weight and bulk specific gravity can keep you from ordering too little (or too much) mass.

The silent budget killer when doing chip seals are waste. You can easily think that everything that falls off the back end of the spreader will be put into the roadway. Nope. A combination of wind, an unlevel binder surface, or poor operator technique cause some loss and whip-off. If you account for a reasonable waste amount (typically 5-12%), you don’t have to stop half way down the county line because someone forgot about it.

It’s good for planning truck logistics as well. You know exactly how much product you’ll use. This lets you stage it to match and get the paver rolling instead of having to wait long periods.

For example: Double seal applications are another matter. It’s when you apply two courses of aggregate (often one coarse, one fine) so there’s an added layer of math. You have your own set of quantities to calculate for each course. This will allow you to stagger deliveries of multiple-size stone. This is critical on double seals, since the binder must be workable when topping off with the second course, but must not set too hard yet. Time is of the essence.

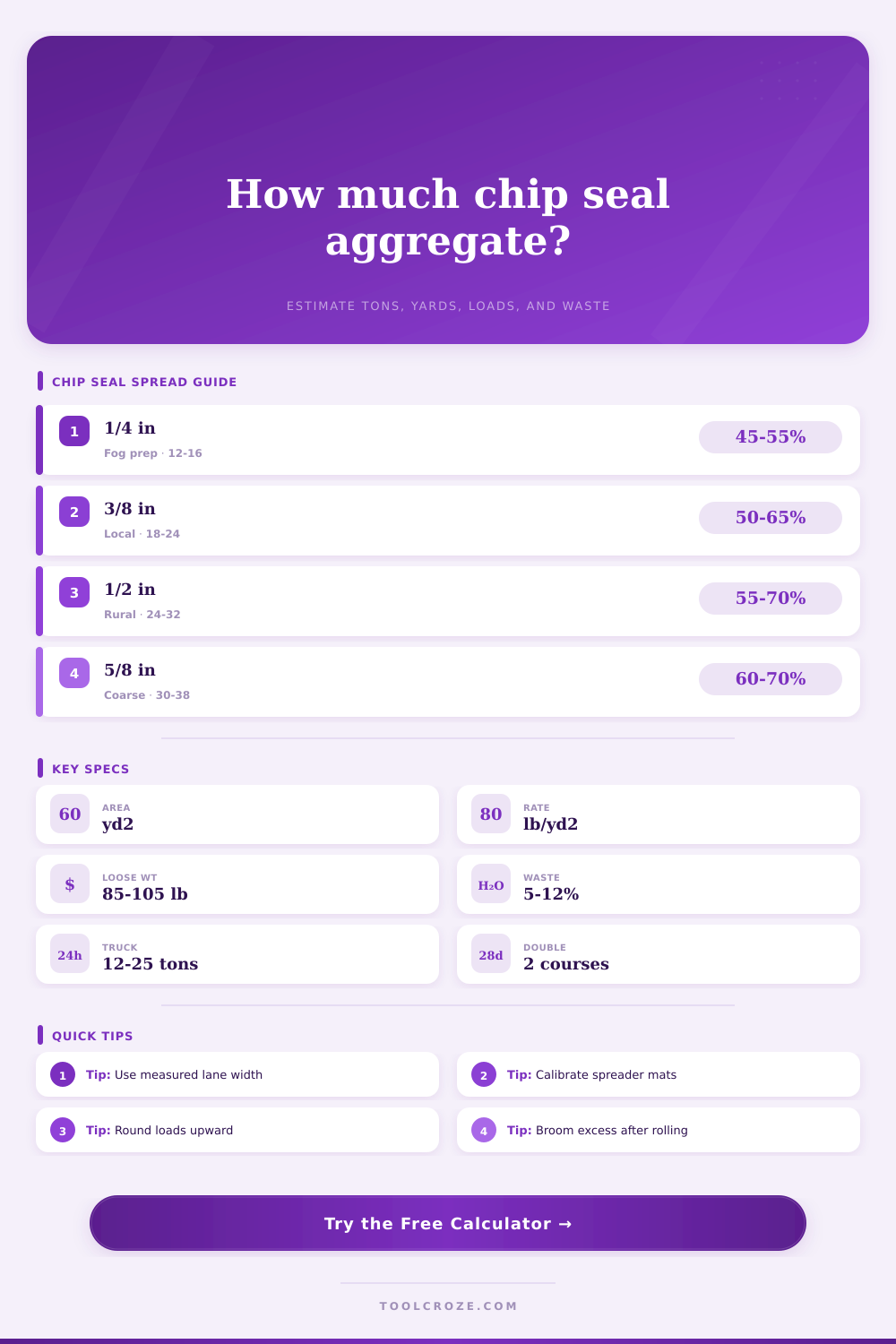

One common mistake is failing to follow the embedment target. Spread too much stone and it won’t embed in the binder; you’ll get a rough, loose surface that sheds rock. Spread too little stone and binder will bleed through, producing shiny slippery spots. Ideally you want the stones to be partly embedded, giving the surface some texture while still maintaining durability. How much embedment? The page has a table of embedment targets for various chip sizes and types of roads. (It’s not set in stone, but rather based off lots of field experience.)

But finally, a good chip seal is all about precision. It’s about understanding your materials. It’s about watching the weather. It’s about allowing for the lost battles. And it’s about getting the math right. And when the math is right, you get a textured, durable surface that bears traffic proudly. But when the math is off, well…then you have some loose gravel lessons to learn the hard way. You should of run the numbers, question the assumptions, and then stand back and watch the spreader go to work. A fresh coat of sealant smells good, but only if it lasts.
