A ceiling seems like nothing more than paint on drywall, right? Wrong. A ceiling are actualy the structural tie that holds your home together! Without it, the weight of wind or snow would cause the walls to buckle outward.

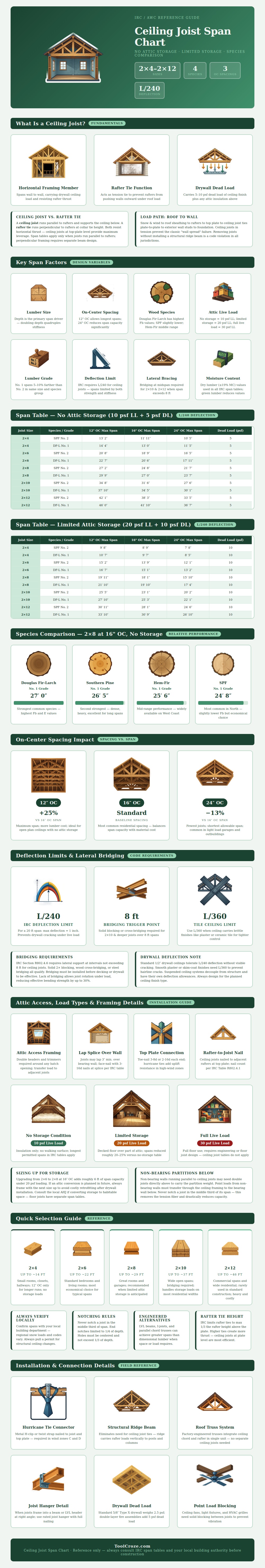

Before cutting a piece of wood for any project, learn how far its joist span. Otherwise, you’ll end up with cracked drywall or walls pushing out until your foundation cave in. Use this chart to find the limits based off lumber species, size, and spacing so you know what is structurally possible.
Why Ceilings Are Important for Your Home
Strength matter most to everyone; it’s actualy stiffness that typically gets you into trouble. Building code limit how much a ceiling can absorbs downward. It cannot bend more than 1/240th the distance between supports. For example, if your ceiling joist are twenty feet apart, they may bend down only one inch when loaded. Anything else lead to cracked drywall. The wood doesn’t necessarily break, but the finish will.
Doubling the depth of the lumber quadruples its stiffness while only doubling its strength. That’s why a two-by-six isn’t as good than a two-by-eight across large spaces.
You may be surprised to know that not all wood are created equal. For example, Standard Spruce-Pine-Fir has lower bending values compared to other species such as Douglas Fir-Larch. Southern Pine also perform similarly. Hem-Fir and SPF have lower bending values, so they needs a slightly smaller span to maintain the same safety margin. In short, using the proper species could of increase your maximum span by a foot or two for the same structural integrity (same beam size, same nail spacing), which amounts to material savings without sacrificing soundness.
The math change dramatically when considering attic storage. Insulation is light stuff. You’re looking at ten pounds per square foot live load. Low weight means long allowed spans. What about gym equipment and boxes? Design for a twenty pound per square foot load. Now your allowed spans shrink by about 20 percent. Treating an attic as a bonus room without upgrading the joists is structuraly risky.
It also assumes that an attic is empty space. Do yourself a favor and size up now, retrofitting will cost you later.
Capacity also depend greatly on the spacing. The longer the span, the lighter the load for any given joist, so going with 12 inch centers is ideal since they can covers the greatest distance. Sixteen inches are typical for most houses as this provides adequate capacity at minimal cost. Going with 24 inch spaces will reduce your board count, however it severely limits how far you can reach across a room which makes it very limiting if you’re working on a large open space like a living area or garage. Sticking with 16 or 12 inch centers ensure that you have enough capacity while still having flexibility to handle odd loads in the future.
Don’t neglect bridging for longer span. Long, deep joists require lateral bracing so they don’t twist when loaded. Midspan solid blocking prevents this kind of rotation by maintaining strength of your whole ceiling system. Never cut or notch a joist in the middle third of its length: You remove tension fiber (the wood doing all the heavy lifting). Cut it wrong and you’ve compromised the beam forever.
Bottom line: A ceiling joist is a piece of wood acting like a tie rod for a wall. As much as it helps support your head, its function is to keep the walls tied together. Respect the charted span limits. Double-check them with the local building department. And never forget that anything supporting the roof will help hold the walls up.
