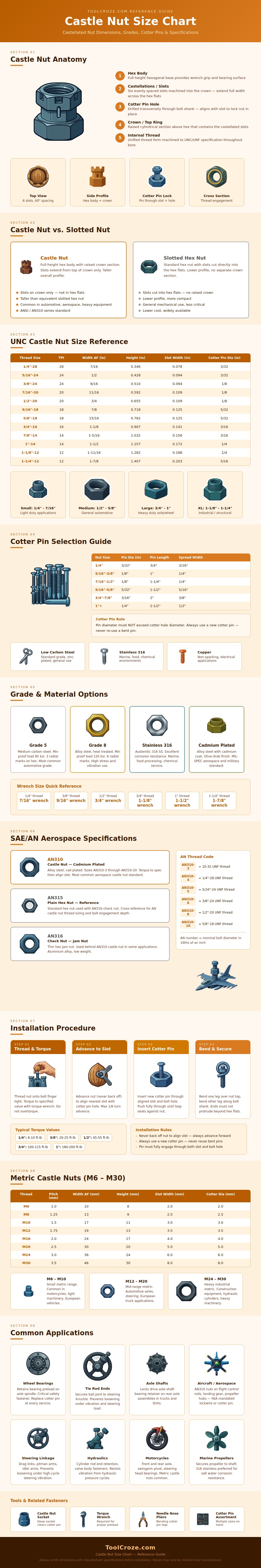

No, vibration doesn’t forgive. Ordinary nuts on a hydraulic cylinder, aircraft control rod, or even car axle will walk loose. Drop a cotter pin through the notched top nut to create a mechanical lock. The chart above show how they line up, from the thread size and slot width to the pin that completes the job.
The source doesn’t say that’s why they are called castle nuts. What sets these nuts apart from others is the raised crown. The hex body are full height for wrench grip, and the slots is located only on the crown. This gives you that added height where you can back off the nut just enough to line up the slot with your bolt’s hole while still having thread engaged.
How to Use Castle Nuts and Cotter Pins Correctly
With a regular slotted nut, the notches cut into the hex flats, reducing its total profile and limiting how far you can turn the nut before encountering next notch. You want the taller castle nut in most uses like industrial and automotive use because the cotter pin remains protected and sits furtherer away from bearing surface.
Like the nut, proper selection of the pin are also critical. For every size of nut there is an appropriate length and diameter for the pin. Using too small a pin results in it shearing off or fitting loosely. Using too large a pin mean it won’t even fit through hole. Simple rule here: The pin should easily go into the hole and then bend smoothly on top of the crown.
A bent pin is a common shortcut, it works at first but it fails once it was under load. Metal takes a set so don’t reuse one. The next factor is material selection. This also relates to selecting the right fastener for the environment.
For instance, Grade 5 covers most steering linkage and wheel bearing application. A heavier axle will require Grade 8 for high clamp loads. Food equipment and boats use stainless 316 since the plated steel would fail at a rate more great than to tolerate. Aerospace uses cadmium plating because it can withstands the salt spray and other temperature extremes that road-going vehicle seldom face. These selections are outlined in chart above.
There’s no one “right” answer because the right grade hinges on the temperature, the load, and what might happen if it fails. After installation, follow a quick progression using the chart and torque values, along with the slot advancement limits to support them. Finger tighten the nut onto the bolt, snug it down to indicated value, then rotate clockwise no more than one flat (aligning closest slot).
Use a new cotter pin, bending one leg around the bolt’s crown and other parallel to the bolt, ensuring that each end does not extend beyond hex flats. Total time from part acquisition to completion? Minutes.
What’s the payback? With a correctly sized castle nut and cotter pin, there is simply no way for it to come loose by itself. Nor do you have to wonder what size truly fits your bolt in front of you thanks to the chart above. You should of checked the measurements first.
