Nothing. You pull on the lever, and it doesn’t do anything. And maybe it’s quiet at first but then just stops working. A bearing fails. It is not as exciting than an engine exploding. It is a little more boring. But it starts out small. Metal grinds in metal. It just stops moving.

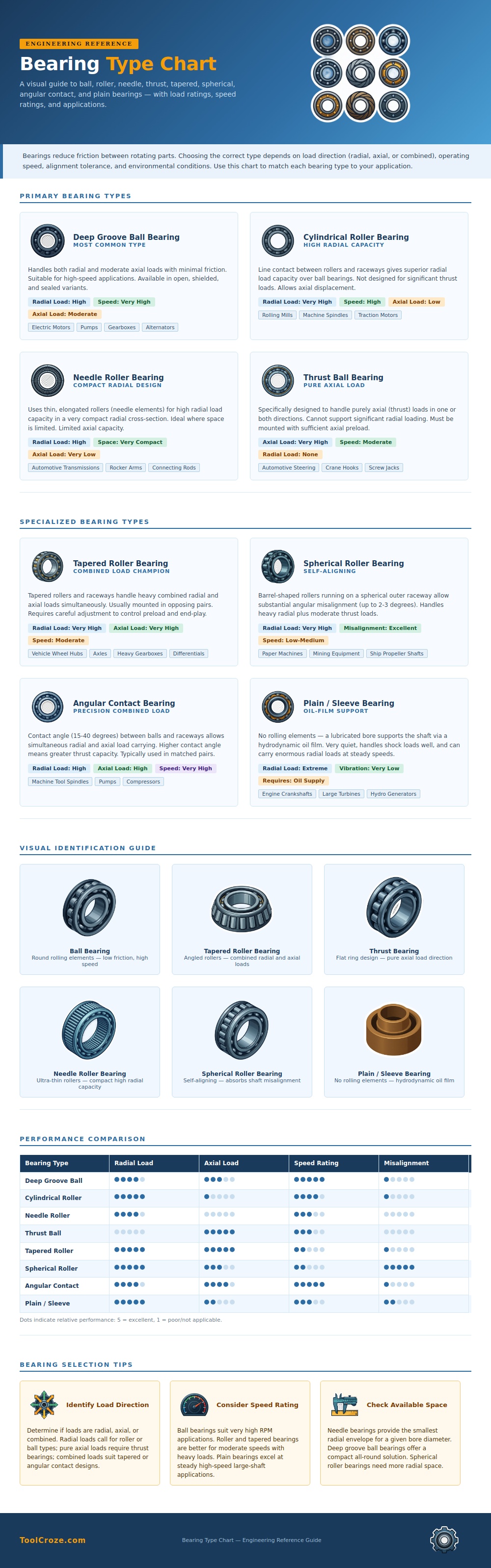

Bearings are what most engineers consider generic part. You pick one that fits in the hole and pray. This happens until your speed gets to high or the load goes in the wrong direction. Speed will get higherer. The visual guide above breaks down why specific geometries exist for specific problems so you don’t have to guess who’s going where.
How to Pick the Right Bearing
A deep groove ball bearing is easy answer. It handles radial loads nicely and can withstand some amount of axial pressure. It spins quick without much resistance, making it the go-to solution for most application like pumps and electric motor. In other words, if you have an application that requires handling moderate amounts of combined forces and running at high speed, then this is typicaly your answer. It’s reliable because it doesn’t try to be all thing to everyone. It simply rolls along quite happy.
Cylindrical roller bearings come into play when you require greater radial capacity than what a ball can offer. Because they feature line contact between their raceway and the rollers, these guy can handle significantly higher loads. However, they’re indifferent to thrust loads; meaning you can’t expect them to hold things together axially. They don’t want to slip, they want to roll.
And then there’s space. Space makes all the difference. Needle bearings look funny because they are long and skinny, with their component made from thin elements. They is highly efficient at fitting a lot of radial capacity into a very small cross section. Great if you’re building an automotive transmission where every mm matter. The trade-off is you give up axial strength but in a tight engine block that’s OK.
Thrust ball bearings turn things around but ignore radial loads altogether. These guys are pure axial force device. Whether it’s the weight of something pushing downward on a crane hook or the push along the screw jack, thrust bearings are what does that job. Put any kind of radial load on them and they’ll be ruined in short order. They are specialist, not generalists.
Tapered roller bearings is used mostly for heavy machines subjected to dual directions of force. Because they have an angle on the rollers and their raceways, they can handles a combination of radial and axial loads well. This geometry is why vehicle wheel hubs depend off these types of bearing; tires exert complex forces in multiple direction all at once. Precision installation is necessary here as well. To prevent end-play problems, the preload need careful adjustment.
Spherical Roller Bearings are a second option because they forgive misalignment. By placing the barrel-shaped rollers inside a spherical outer raceway, the shaft can tilts slightly without binding. This self-aligning nature is essential in a ship propeller shaft or mining equipment where perfect alignment is simply physically impossible.
Angular Contact Bearings carry things one step farther into high accuracy. Specialized angles of contact handles very high speeds of combined loads found in machine tool spindles. Oftentimes they’re employed in matched pair that balance forces perfectly.
And then we come to the simple sleeve bearings, no rolling elements whatsoever. Here the shaft is supported by a hydrodynamic oil film. The result is super quiet and able to handle shock load better than any rolling element can. They are used in large turbines and hydro generators because they can supports very high radial loads at constant speed.
In the end your application determines what you select. Heavy thrust? Spinning fast? Limited space? Those variables map out clearly on the chart above and show there’s not a single victor here. Just the right tool for the particular set of physics. Picking a bearing isn’t about finding the strongest one. It’s about matching the shape to the motion. Get that right and the machine hum away quietly. Get it wrong and you’ll hear that whisper long before failure becomes total.
