Calculator + Lumber = Framing Site, which is where things get complicated for your roof: What happens if those lumber boards has to go really far out? How much weight can they holds before they break or sag? No one wants their roof to fail after they’re long gone (and especially not in a year of heavy snow). That’s why most builders stall out here.

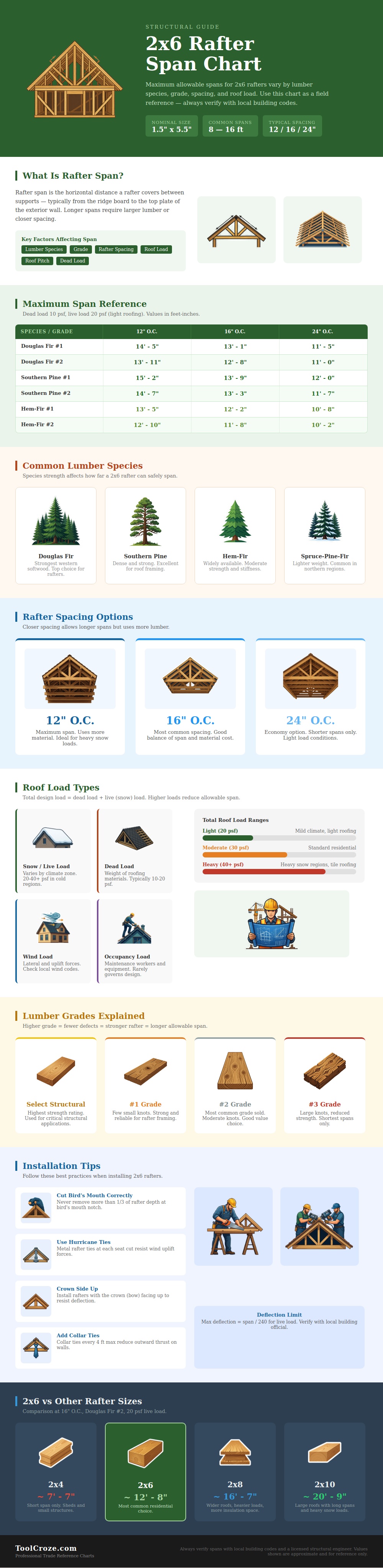

It isn’t simply about the strength of the wood but also how it works with grade, spacing, and load based off your local climate. The chart above shows a basic rule of thumb: no single span is right for all 2×6 rafters. It depends on the grade and the species, such as whether it is Douglas Fir. Or is it Hem-Fir? Is it spaced twelve inches? Sixteen? Twenty-four? Sixteen? Twenty-four? It isn’t just those things; it is all of them.
How Lumber, Spacing, and Grade Affect Roof Strength
If a high grade of Southern Pine can span more than thirteen feet with a sixteen inch spacing, then in other situations… Like using a lower grade or a wider spacing. It will shrink that distance considerably. Saving on lumber grades are penny-wise and pound-foolish, a structural liability waiting to happen.
Wood being a natural product has built-in variations; lumber species are just as important (maybe more) than many think. For instance, Douglas Fir is used extensively in the west for framing because of its strength-to-weight ratio. Southern Pine is use for its density and stiffness to bear heavy loads. Hem-Fir is abundant and sufficient for most uses, but you can’t treat it exactly like a stronger species without adjusting your span calculations. The infographic details the differences and shows how choosing a board for cost alone versus performance rating will cause issue down the line.
The distance between the rafters also matters a lot for reaching as far as they are able to safely span. Jumping from sixteen inches to twenty four inch spacing will save you lumber at first, but requires the boards to spans greater distances without support. Typically this only extends the maximum span if you go up to bigger dimensional lumber. Spacing them closely better spreads the load and allows standard two by sixes to behave more like their theoretical max. It’s a balancing act for any framer where increasing material volume decreases beam capacity.
Wood grade also determines your choices. Select structural and number one grade lumber has fewer defects and knots, so the continuous wood fibers is stronger to support stress before it breaks. While number two grade lumber may appear to perform well at first on a span that calls for number one or select structural, you put yourself at risk when it’s loaded down. Cleaner lumber costs more, and that’s because cleanliness will give consistent engineering performance.
Although we all love looking at span charts, it’s easy to overlook installation details, yet these are equally important to the success of your roof. When notching out for the birds mouth (the notch at the end of the rafter), don’t cut off more than one-third of depth of the board; this significantly impacts the structural integrity at the most critical area of support. Additionally, always install rafters with their crown upwards, which resists deflection over time. Be certain to use metal connectors or other approved hurricane ties to handle uplift forces in storm conditions. These small mechanical details ensure that the wood’s actual strength is used in practice rather than just in theory.
Local building code trumps all these charts, so be sure to check that your chosen spans aligns with regional requirements. What’s appropriate in a high-country location may not fly in a milder climate; snow loads are highly variable across regions. If unsure, call your local building department or hire a structural engineer to ensure that you’re using spans appropriate to the region. It would of saved you from big hassles when the first really big snow hits if you do a bit more checking up front.
