A two-by-four is not what you thought. Walking through doors of your lumber yard, you imagine yourself holding a piece of wood two inches thick and four inches wide. Instead, you have an actualy piece of wood. What happened? A mill shaved rough edges away. They planed it. They dried it. And now you’ve got something smaller then its name implies.

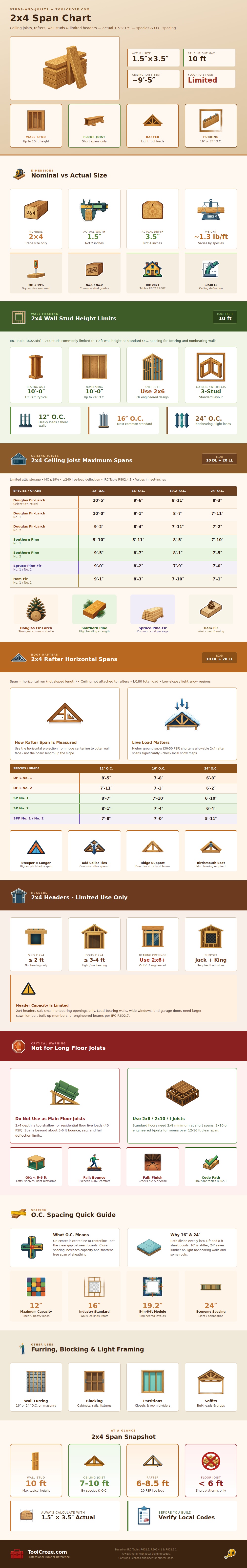

That difference is the beginning of the problem for anyone who wants to know just how much distance a two-by-four can span. To clarify, the chart above show the nominal (trade) size printed on every package. It also shows actual size of that same board.
The True Size of a Two-by-Four
Why should you care? Because that disparity affects deflection and load capacity, which means you’ll either end up with a sagging ceiling or a bouncing floor if you were designing under cover of the four-inch myth. It is humbling. It is at least a good reason to read the spec sheet before swinging any hammer.
The two-by-four’s naturaly habitat is wall studs. And why not? It’s plenty rigid (at least strong enough to support average residential walls), and there’s no need to too much reinforcement. According to the visual guide, the max stud height is ten feet; again, the typical wall height in a house. If you’re building a non-bearing partition wall separating nothing but living room from the kitchen, then safety zone of ten feet will do just fine. If it’s a bearing wall supporting part of roof, again, ten feet is OK. To go higher, call engineer or step up to two-by-six lumber.
For best rigidity, space ’em every 16 inches on center; for lighter loads, spread out to 24 inches on center. Budget versus stiffness tends to be a tug-of-war when deciding how close to space them. On one hand, 16 inches sounds thicker to the fingertips; 24 inches, however, cuts down amount of lumber and drywall, thus saving some money on both counts. Both numbers fall neatly into standard four-foot-wide sheets, meaning that your trash pile won’t expand beyond control.
The other issue is ceiling joist spans. These depend greatly on which kind of wood you select. And this time the Heavyweight Champion is Douglas fir-larch with the ability to stretch further before reaching it’s bend limit. The chart shows performance by grade, from Select Structural to Number Two. Depending on where you live, Spruce-Pine-Fir is probably the most common stud package, and spans will get much shorter.
Why does this matter? A sagging ceiling is more than an expensive headache; it is a disaster for how your home looks. No one want their ceiling to dip in middle of the room. You want it flat.
The closer together the joists are spaced, the smaller the allowed span. Bumping up from 16″ on center to 24″ on center may save you a couple board, but it dramatically shortens distance you get out of each. This is a tradeoff that deserves some serious calculations.
There’s one more variable in the mix: slope. The longer the horizontal distance, the greater the span rafters can achieve. The trickier part is that a steeper pitch “shortens” the horizontal distance between rafters; effectively letting them stretch farther.
Long spans becomes the enemy of heavy snow load. In areas with heavy ground snow, the allowable span of a two-by-four rafter becomes much lower. To take this into account, the chart assumes a small live load. Depending on where you live, the code may require you to design for higher snow loads. In this case, you’ll have to consult those tables (the limits here won’t apply).
Collar ties help control rafter spread, preventing walls from bowing out from weight of the roof. It is a little detail that prevents a big problem.
Don’t waste money on two-by-fours for your main floor joists. They’re just not deep enough to support the forty pounds per square foot of weight from appliances, furnitures, and people. You’ll end up with a bouncy floor that cracks tile and drives everybody nuts as they walk around on it. For floors stick with two-by-eights or two-by-tens; use engineered I-joists for longer spans.
Two-by-four? That’s what it’s good for: Small platforms, light ceilings and walls. It is a humble board, but when used properly, it becomes the bones for almost all American homes. Knowing where to draw the line would of keep you safe, square, and stiff.
